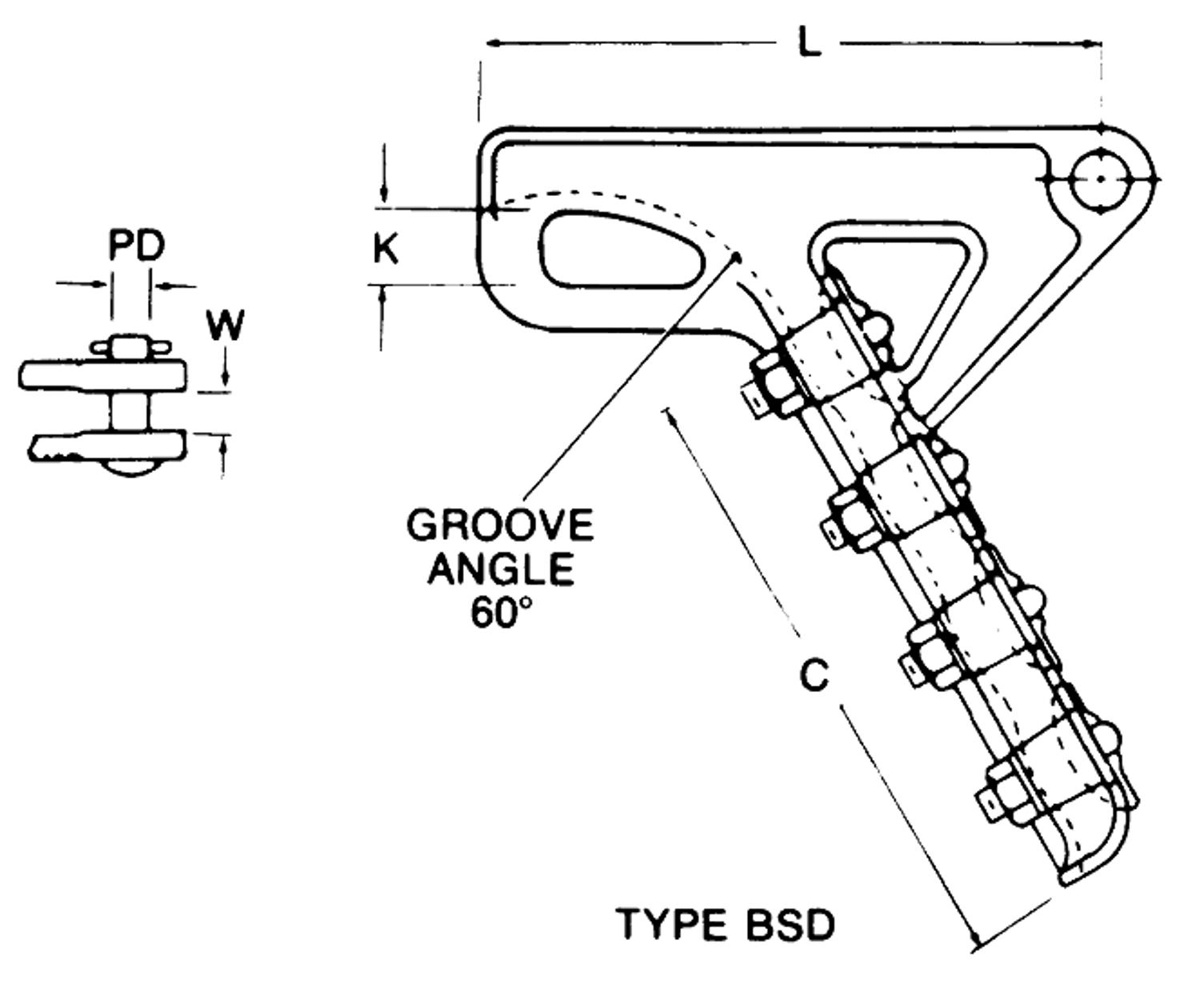

Hubbell Power Quadrant Clamps Copper, Copperweld 0.475 - 0.84 in 1/2 in 4 Bolt Socket Eye
Mfg #:
BSD84S
BOR #:
2615971
These clamps are used primarily for deadending aluminum substation cable bus.
- During installation the cable will slide free under the Ubolts, or if preferred, U-bolts may be removed and cable laid in clamp grooves from the side
- These clamps are compact for greatest phase clearance
- Body and keeper 356-T6 aluminum alloy
- Galvanized steel hardware
- Sockets and clevises ductile iron, galvanized
- Cotter Pin #302 stainless steel
| Brand | Hubbell Power |
| Conductor Range | 0.475 - 0.84 in |
| Type | Quadrant Clamp |
| Conductor Size | 4/0 AWG - 500 kcmil |
| Length | 12 in |
| Conductor Type | Copper, Copperweld |
| Number of Bolts | 4 Bolt |
| Material | Bronze |
| Ultimate Strength | 25000 lbf |
| Fitting Type | Socket Eye |
| U-Bolt Size | 1/2 in |
| Hubbell Power Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
