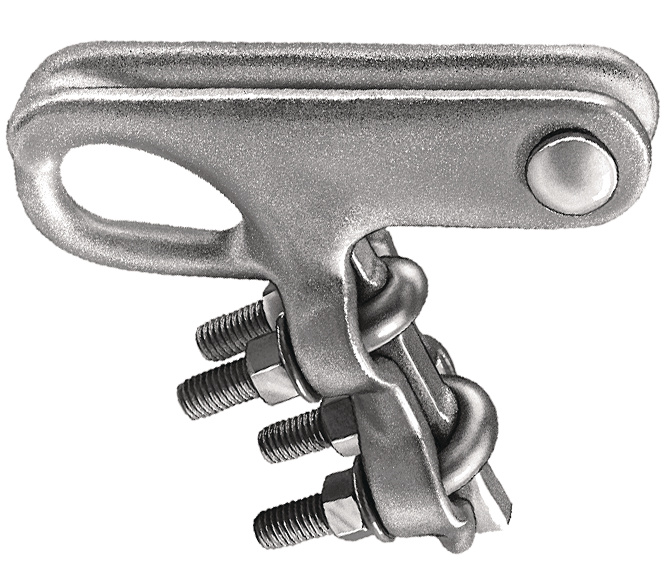

Hubbell Power Quadrant Clamps Copper, Copperweld 0.22 - 0.55 in 3 Bolt Bolt and Nut
Mfg #:
SWDE55NBNK
BOR #:
2407359
These clamps are used primarily for deadending aluminum substation cable bus.
- During installation the cable will slide free under the Ubolts, or if preferred, U-bolts may be removed and cable laid in clamp grooves from the side
- These clamps are compact for greatest phase clearance
- Body and keeper 356-T6 aluminum alloy
- Galvanized steel hardware
- Sockets and clevises ductile iron, galvanized
- Cotter Pin #302 stainless steel
| Brand | Hubbell Power |
| Conductor Range | 0.22 - 0.55 in |
| Type | Quadrant Clamp |
| Conductor Size | 4 - 4/0 AWG |
| Conductor Type | Copper, Copperweld |
| Number of Bolts | 3 Bolt |
| Fitting Type | Bolt and Nut |
