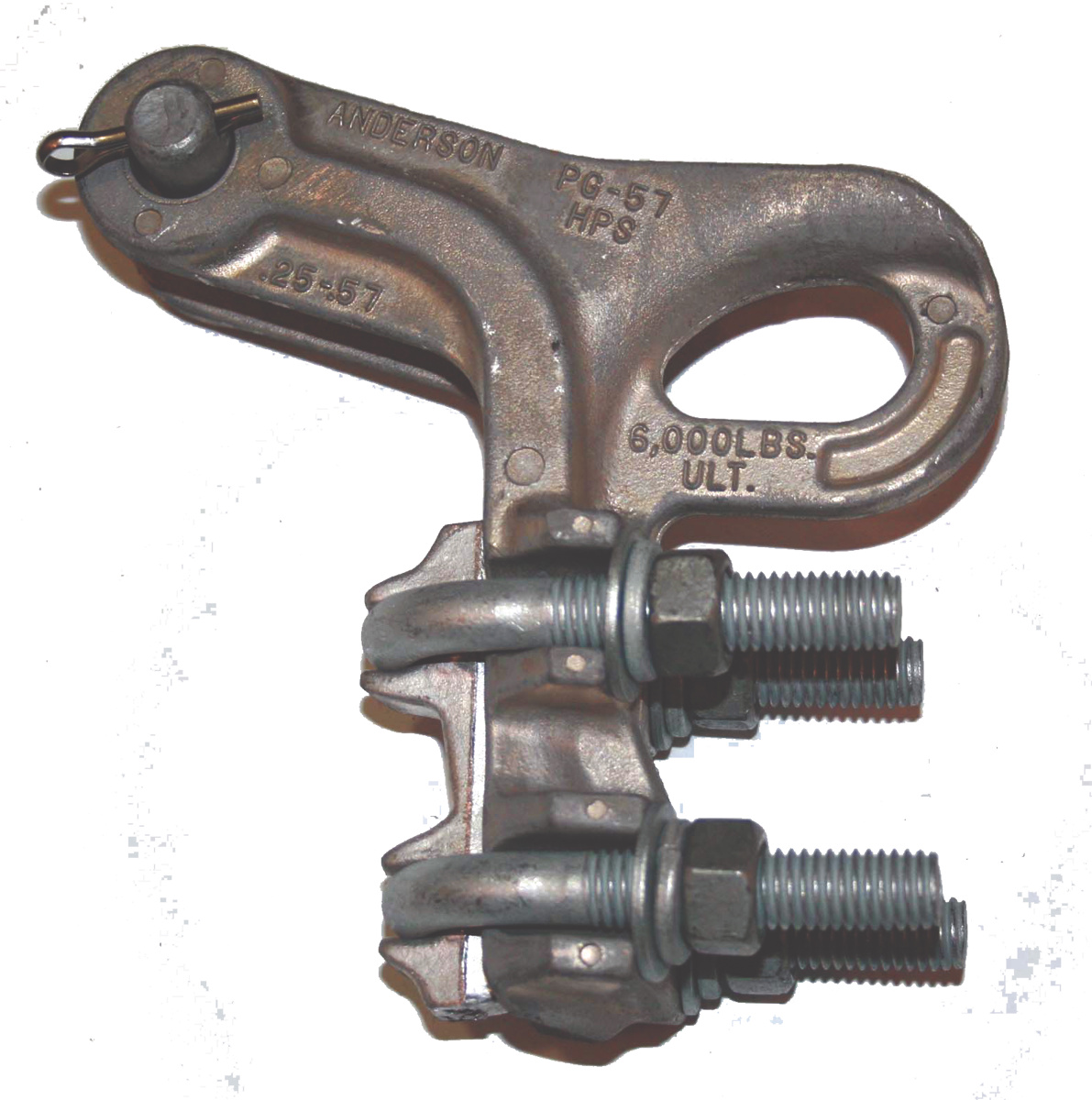

Hubbell Power Quadrant Clamps AAAC, AAC, ACSR 0.25 - 0.57 in 1/2 in 2 Bolt Socket
Mfg #:
PG57SBNK
BOR #:
2971571
These clamps are used primarily for deadending aluminum substation cable bus.
- During installation the cable will slide free under the Ubolts, or if preferred, U-bolts may be removed and cable laid in clamp grooves from the side
- These clamps are compact for greatest phase clearance
- Body and keeper 356-T6 aluminum alloy
- Galvanized steel hardware
- Sockets and clevises ductile iron, galvanized
- Cotter Pin #302 stainless steel
| Brand | Hubbell Power |
| Conductor Range | 0.25 - 0.57 in |
| Type | Quadrant Clamp |
| Conductor Size | 3 - 4/0 AWG |
| Length | 5-1/2 in |
| Conductor Type | AAAC, AAC, ACSR |
| Number of Bolts | 2 Bolt |
| Material | Aluminum |
| Ultimate Strength | 10000 lbf |
| Fitting Type | Socket |
| U-Bolt Size | 1/2 in |
