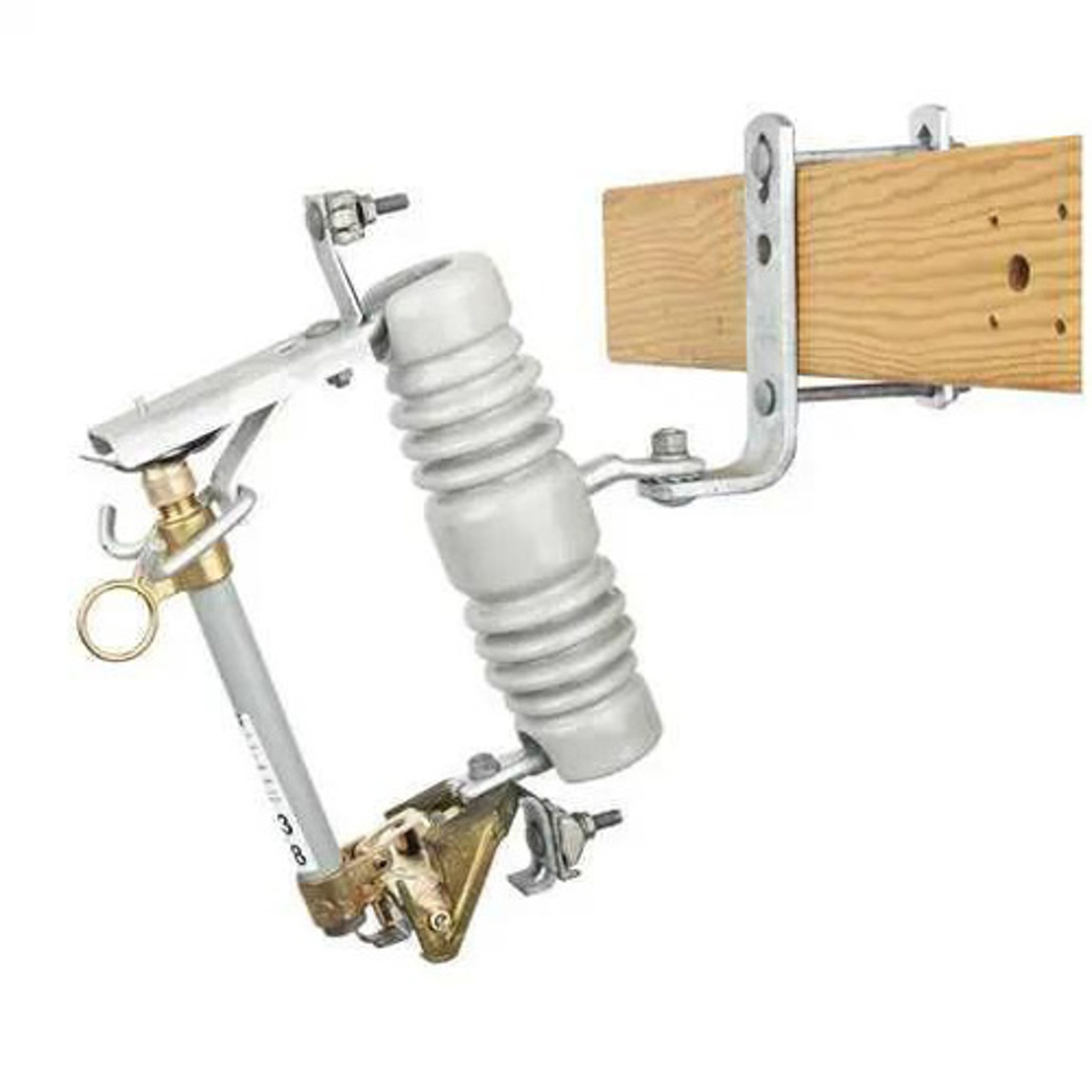

Hubbell Power Standard Cutouts 27 kV 200 A 125 kV
Hubbell Power’s Chance Type C Standard (Open) cutouts provide short circuit and low-level overload protection for overhead power lines and apparatus connected to those lines.
| Brand | Hubbell Power |
| For Use With | Removable buttonhead fuse links. |
| Configuration | Standard |
| Continuous Current Rating | 200 A |
| Leakage Distance | 12.6 in |

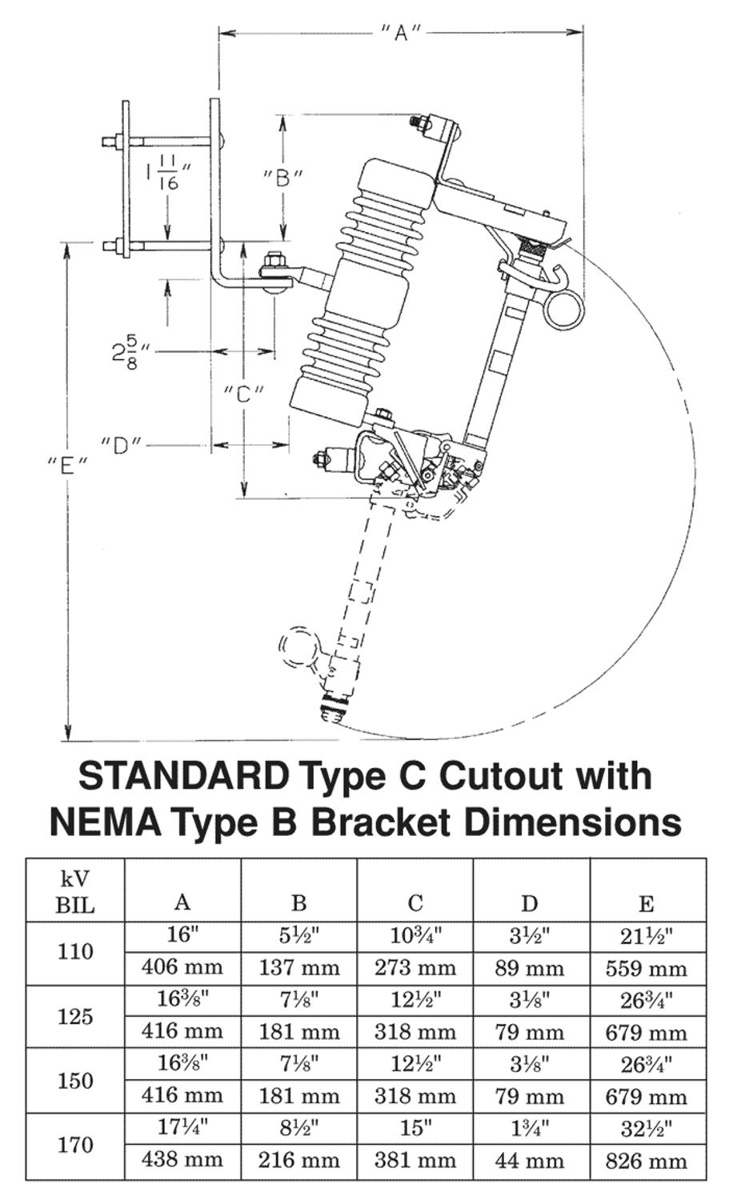

| Bracket Type | NEMA B |
| Housing Material | Porcelain |
| BIL (kV) | 125 kV |
| Series | Type C |
| Voltage | 27 kV |
| Interrupting Rating | 10 kAIC |
| Weight | 21.4 lb |
| Connector Type | Parallel Groove |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Catalog Full Asset Reference | Catalog |
|
