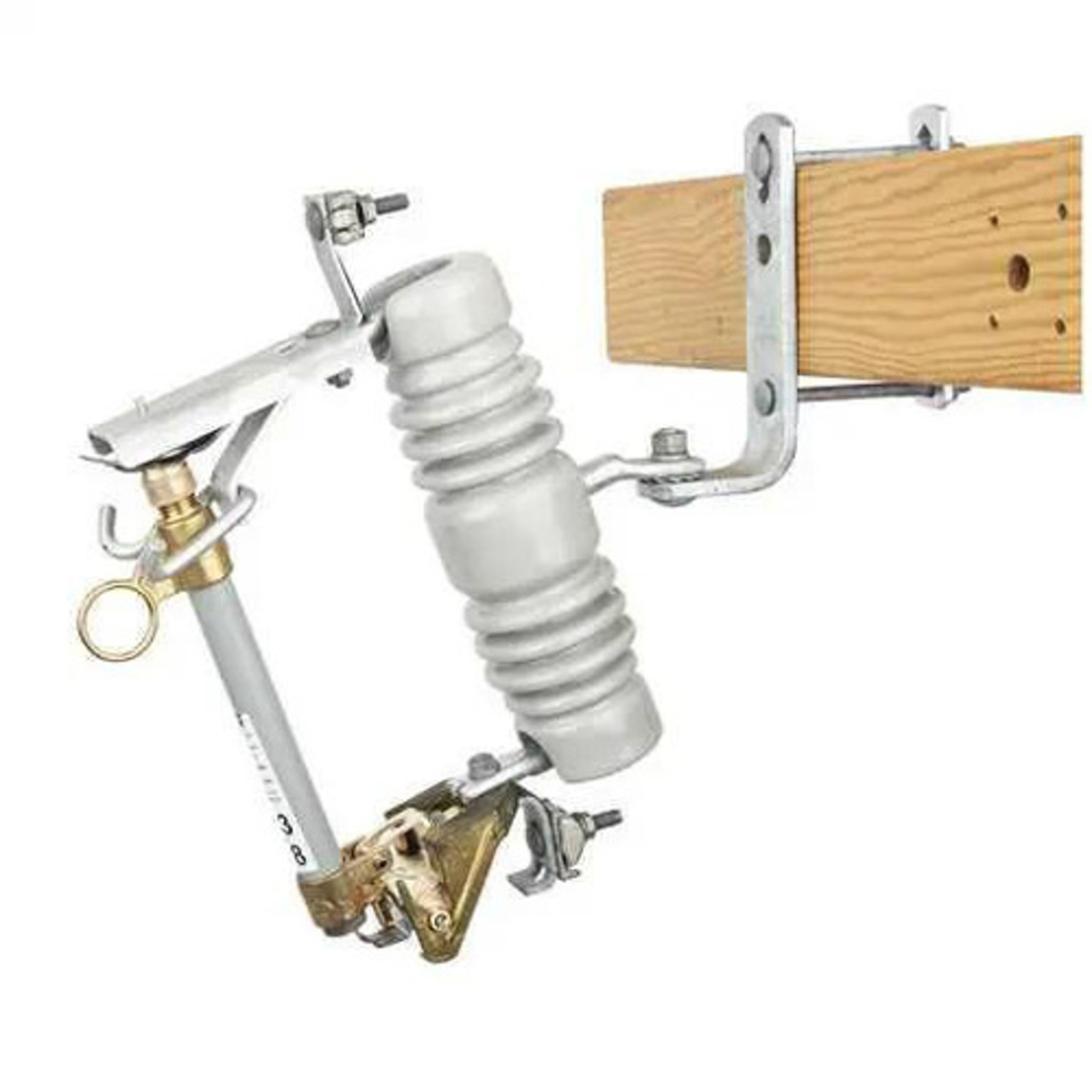

Hubbell Power Standard Cutouts 15 kV 200 A 110 kV
Mfg #:
C710143PB
BOR #:
130145
Hubbell Power’s Chance Type C Standard (Open) cutouts provide short circuit and low-level overload protection for overhead power lines and apparatus connected to those lines.
- Comes with loadbreak hooks for use with portable loadbreak tool.
- Fuseholders are interchangeable with other manufactures cutouts.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
- Fuseholders with arc shortening rod (link extender cap) are for use on single-phase to neutral or three-phase solidly grounded wye-connected circuits where recovery voltage does not exceed the maximum design voltage of the device.
| Brand | Hubbell Power |
| For Use With | Removable buttonhead fuse links. |
| Configuration | Standard |
| Continuous Current Rating | 200 A |
| Leakage Distance | 8.7 in |
| Bracket Type | NEMA B |
| Housing Material | Porcelain |
| BIL (kV) | 110 kV |
| Series | Type C |
| Voltage | 15 kV |
| Terminal Type | Parallel Groove |
| Interrupting Rating | 12 kAIC |
| Weight | 18.7 lb |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Catalog Full Asset Reference | Catalog |
|
