Hubbell Power Standard Cutouts 15 kV 100 A 110 kV
Mfg #:
CP710114PB
BOR #:
2981494

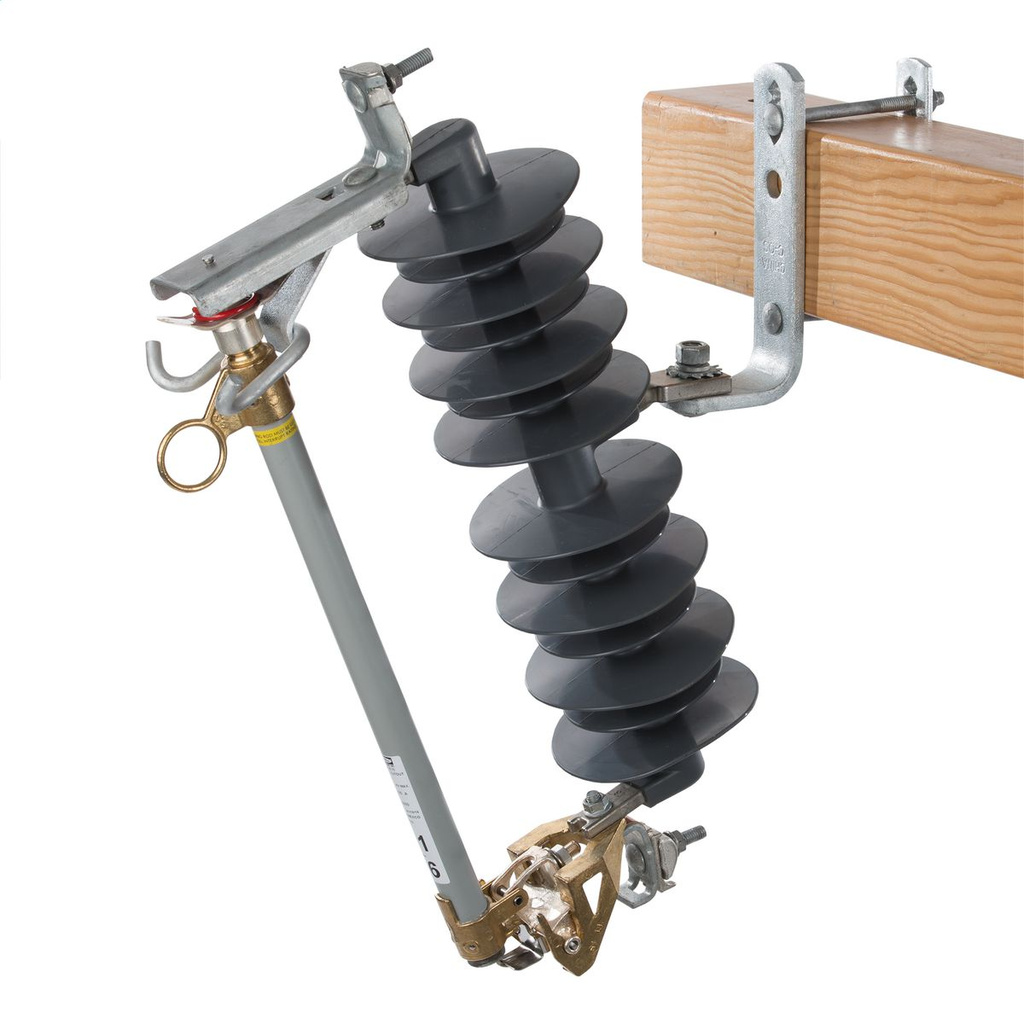

Hubbell Power’s Chance Type C Standard (Open) cutouts provide short circuit and low-level overload protection for overhead power lines and apparatus connected to those lines.
- Comes with loadbreak hooks for use with portable loadbreak tool.
- Less space in storage, transit and service.
- Fuseholders are interchangeable with other manufactures cutouts.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- RUS listed, meets ANSI/NEMA specifications and IEEE requirements.
| Brand | Hubbell Power |
| For Use With | Removable buttonhead fuse links. |
| Configuration | Standard |
| Continuous Current Rating | 100 A |
| Leakage Distance | 12.6 in |
| Bracket Type | NEMA B |
| Housing Material | Polymer |
| BIL (kV) | 110 kV |
| Series | Type C |
| Voltage | 15 kV |
| Interrupting Rating | 16 kAIC |
| Weight | 12.9 lb |
| Connector Type | Parallel Groove |
| Catalog Full Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
