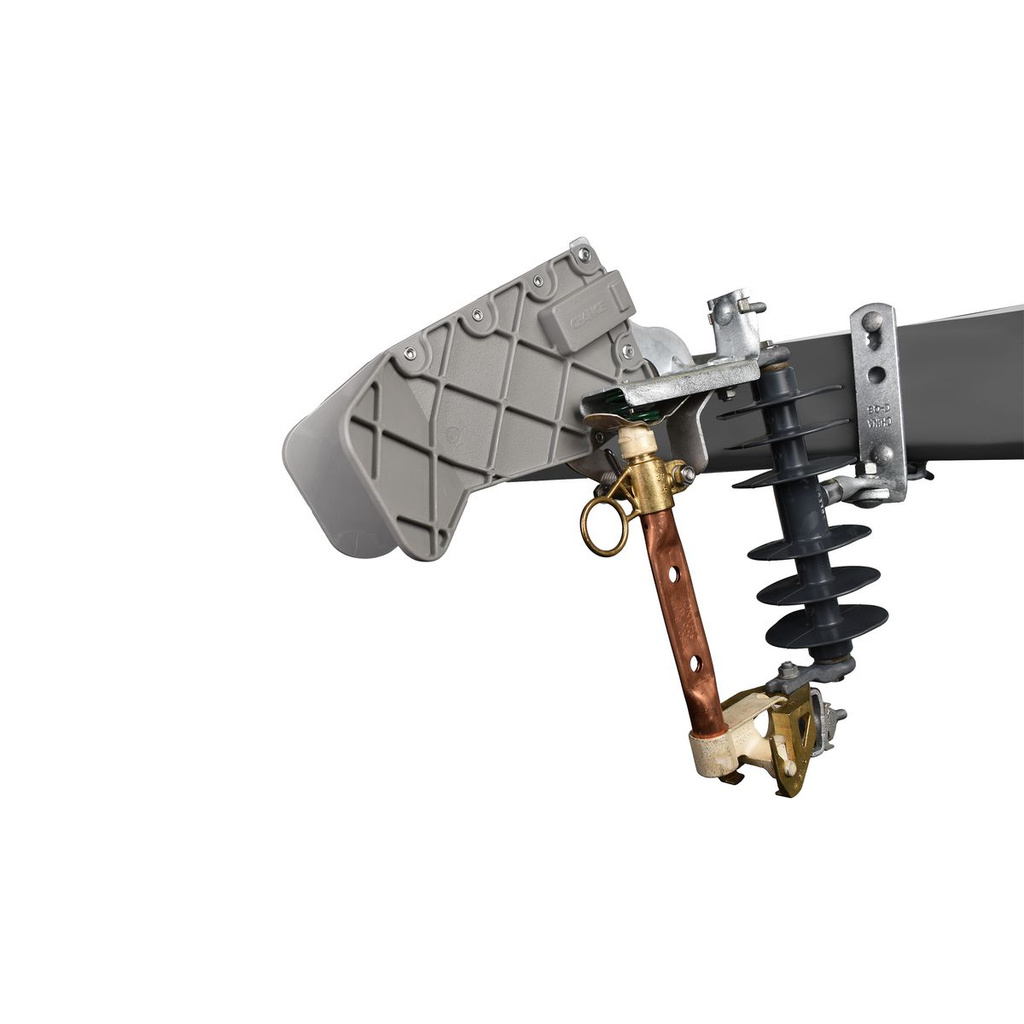

Hubbell Power Loadbreak Cutouts 15 kV 300 A 110 kV
Mfg #:
CP730133PB
BOR #:
2449677
Hubbell Power’s Chance Type C Loadbreak cutouts provide circuit protection for utility lines with the added feature of an arc chute for loadbreaking up to 300 amps.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- All copper current path with silver-plated contacts.
- Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.
Brand | Hubbell Power |
Configuration | Loadbreak |
Continuous Current Rating | 300 A |
Leakage Distance | 12.6 in |
Bracket Type | NEMA B |
Housing Material | Polymer |
BIL (kV) | 110 kV |
Series | Type C |
Voltage | 15 kV |
Includes | Arc chute |
Interrupting Rating | Solid Blade Disconnect |
Weight | 18.6 lb |
Connector Type | Parallel Groove |
