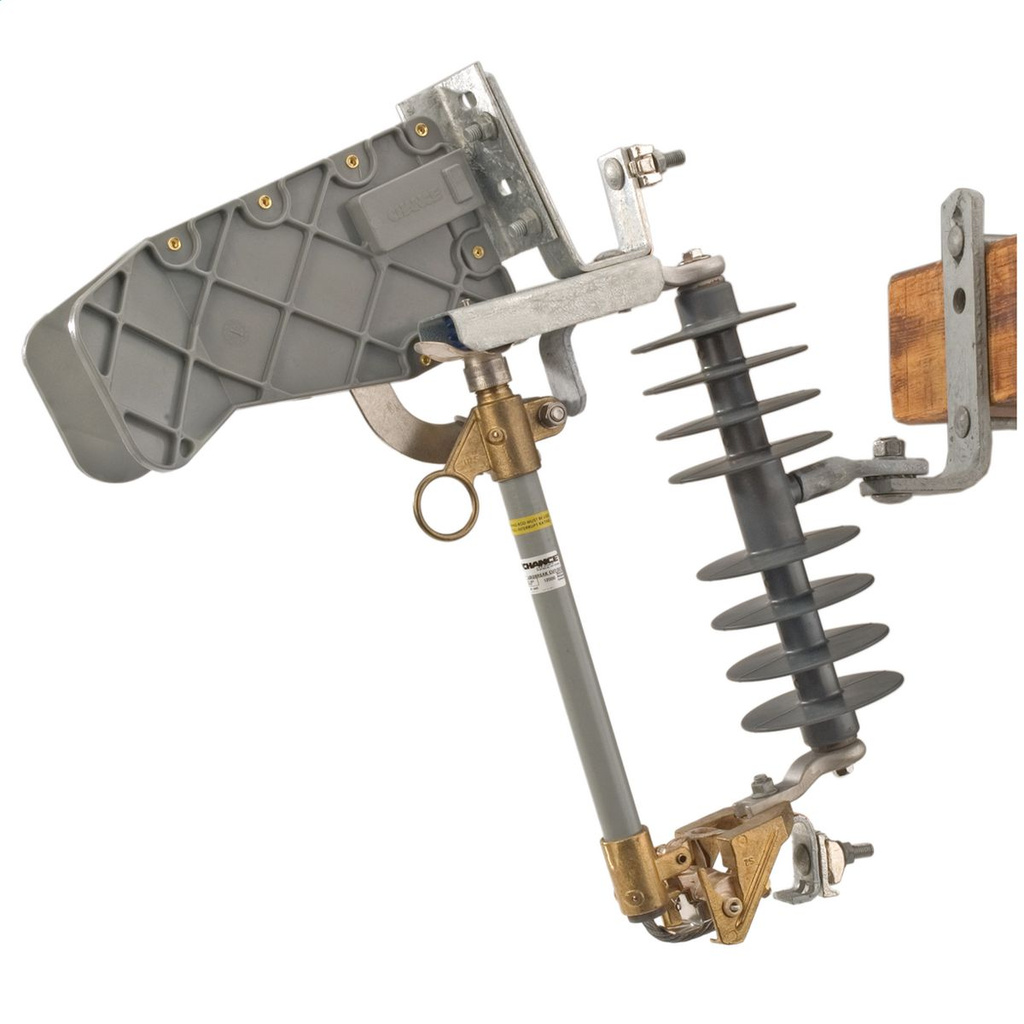

Hubbell Power Loadbreak Cutouts 15 kV 200 A 110 kV

Mfg #: CP730143PB

BOR #: 2078681

View all 14 in product family

Looking for prices?

Create an Account

Hubbell Power’s Chance Type C Loadbreak cutouts provide circuit protection for utility lines with the added feature of an arc chute for loadbreaking up to 300 amps.

Terminals are tin-plated bronze for use with copper or aluminum conductors.
Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
All copper current path with silver-plated contacts.
Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.

Product can be ordered only in multiples of

Specifications

Brand	Hubbell Power
For Use With	Removable buttonhead fuse links.
Configuration	Loadbreak
Continuous Current Rating	200 A
Leakage Distance	12.6 in
Bracket Type	NEMA B
Housing Material	Polymer
BIL (kV)	110 kV
Series	Type C
Voltage	15 kV
Includes	Arc chute
Interrupting Rating	12 kAIC
Weight	19.4 lb
Connector Type	Parallel Groove

Catalog Full Asset Reference	Catalog
Installation Manuals Asset Reference	Installation and Instruction Manuals
