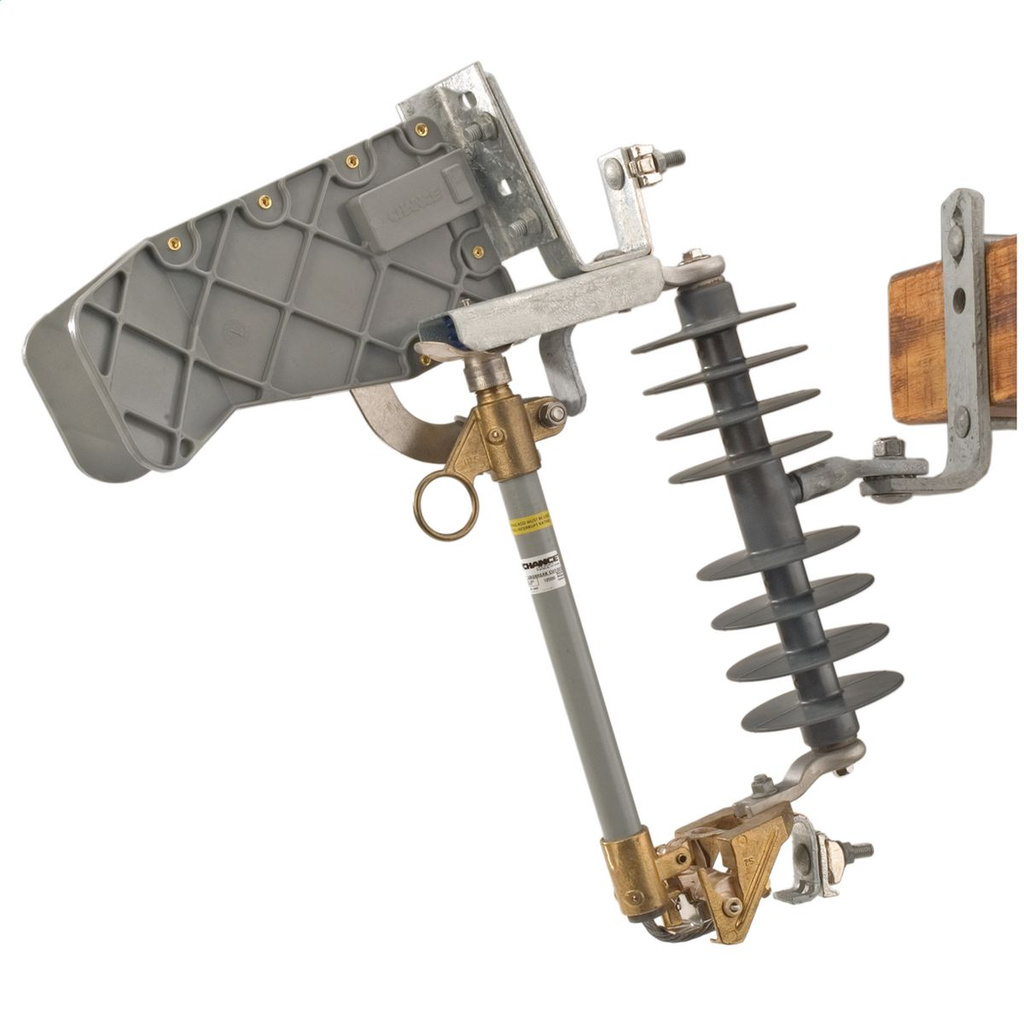

Hubbell Power Loadbreak Cutouts 15 kV 100 A 110 kV
Mfg #:
CP730112PB
BOR #:
1410026
Hubbell Power’s Chance Type C Loadbreak cutouts provide circuit protection for utility lines with the added feature of an arc chute for loadbreaking up to 300 amps.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- All copper current path with silver-plated contacts.
- Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.
| Brand | Hubbell Power |
| Configuration | Loadbreak |
| Continuous Current Rating | 100 A |
| Leakage Distance | 12.6 in |
| Bracket Type | NEMA B |
| Housing Material | Polymer |
| BIL (kV) | 110 kV |
| Series | Type C |
| Voltage | 15 kV |
| Includes | Arc chute |
| Interrupting Rating | 10 kAIC |
| Weight | 15.1 lb |
| Connector Type | Parallel Groove |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Catalog Full Asset Reference | Catalog |
|
