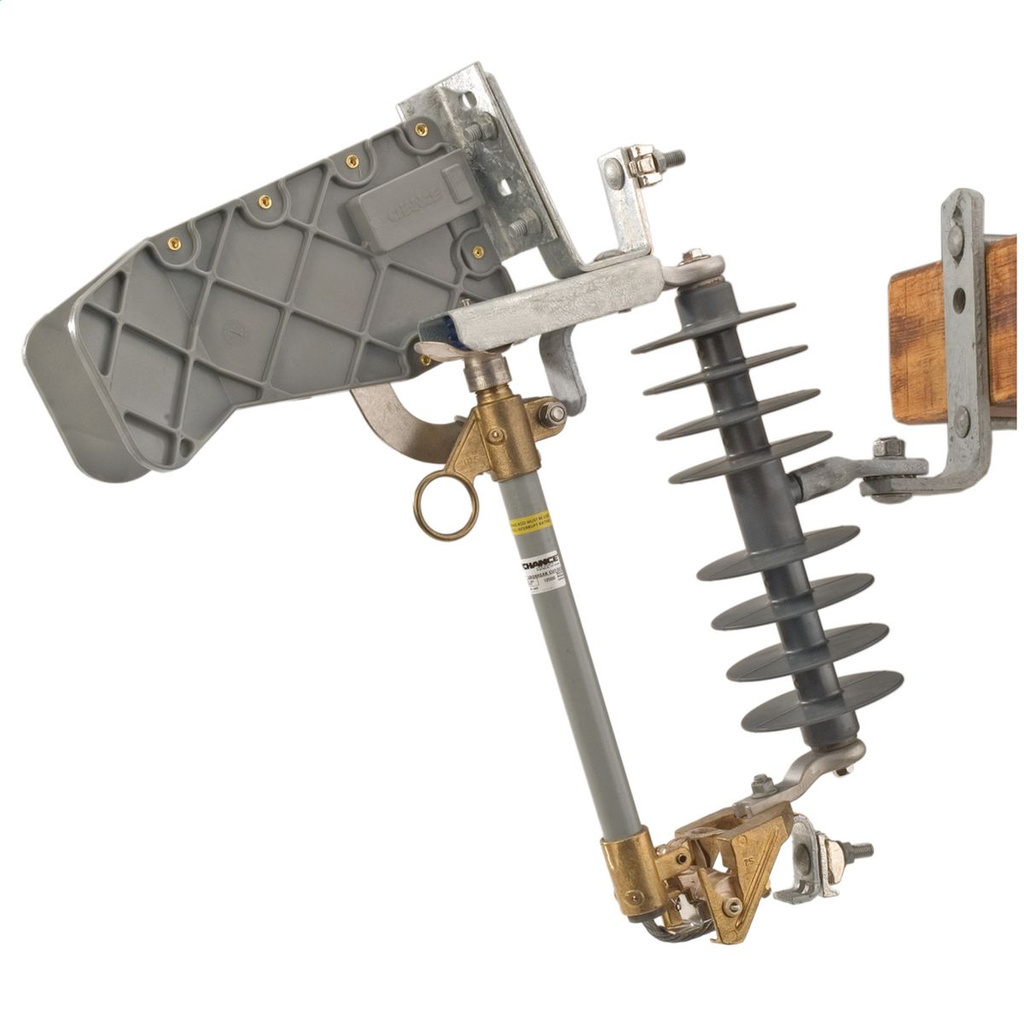

Hubbell Power Loadbreak Cutouts 15/27 kV 200 A 125 kV
Mfg #:
CP730242PB
BOR #:
2899205
Hubbell Power’s Chance Type C Loadbreak cutouts provide circuit protection for utility lines with the added feature of an arc chute for loadbreaking up to 300 amps.
- Terminals are tin-plated bronze for use with copper or aluminum conductors.
- Same Enhanced Silicone Polymer (ESP) used in Ohio Brass arresters and insulators.
- All copper current path with silver-plated contacts.
- Cutouts with slant rated maximum voltage ratings are for systems which have phase-to-ground voltages no greater than the value listed to the left of the slant (/) and phase-to-phase voltages no greater than the value listed to the right of the slant.
| Brand | Hubbell Power |
| For Use With | Removable buttonhead fuse links. |
| Configuration | Loadbreak |
| Continuous Current Rating | 200 A |
| Leakage Distance | 17.1 in |
| Bracket Type | NEMA B |
| Housing Material | Polymer |
| BIL (kV) | 125 kV |
| Series | Type C |
| Voltage | 15/27 kV |
| Includes | Arc chute |
| Interrupting Rating | 10 kAIC |
| Weight | 19.6 lb |
| Connector Type | Parallel Groove |
| Catalog Full Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
