Lincoln Electric Ranger® Welders 350 A 23 Hp 9500 W 30 in H x 21.5 in W x 42.3 in D

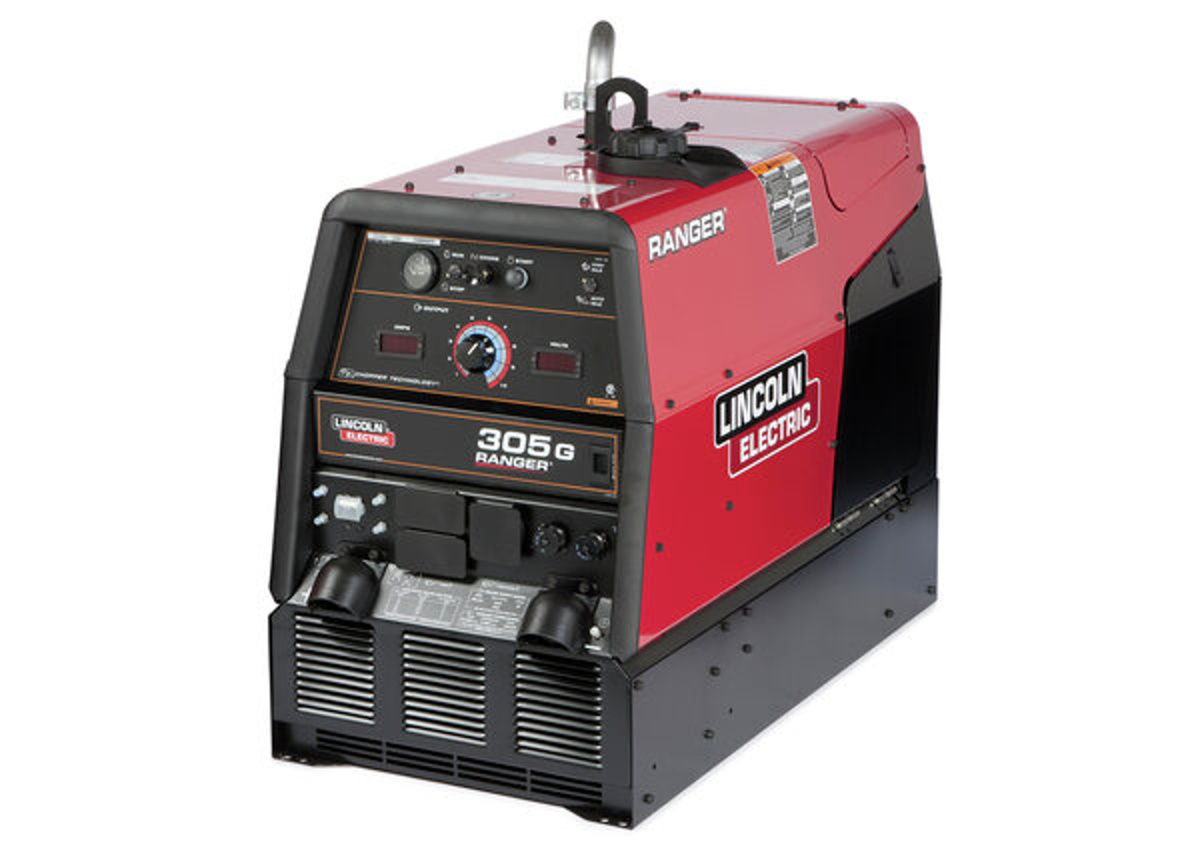

Ranger® 305 G Engine Driven Welder (Kohler®): Professional welder/generator with great multi-process capability for stick, MIG, TIG and pipe welding.

• The 9,500 watt continuous single-phase AC generator powers motors starting, tools and inverter welders for extended range and process capability.
• Digital weld meters monitor actual welding output
• 12-gallon fuel capacity allows for extended operation
• Electric fuel pump helps avoid vapor lock during high-altitude operation

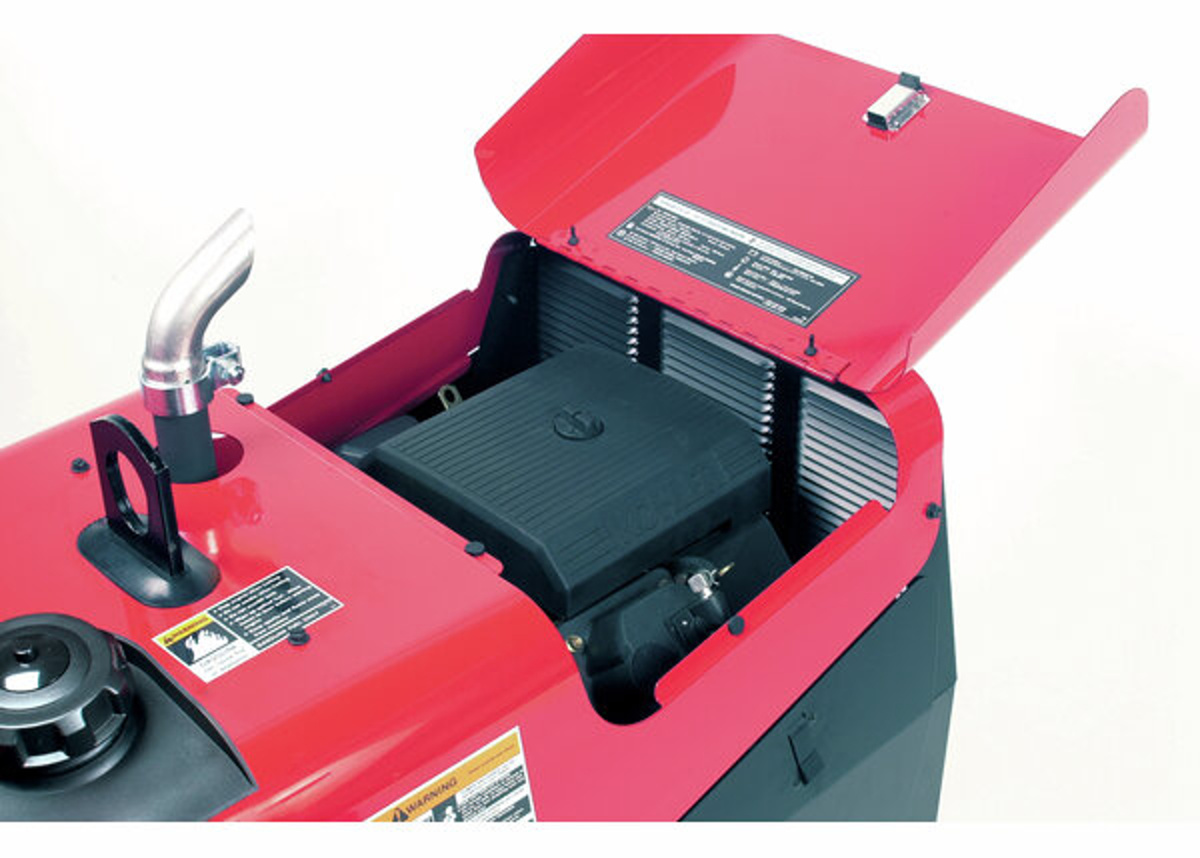

• Kohler® Gasoline Engine - 23 HP carburetor engine. Electric fuel pump to avoid vapor lock at high altitude operation.
• Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
• Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
• CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

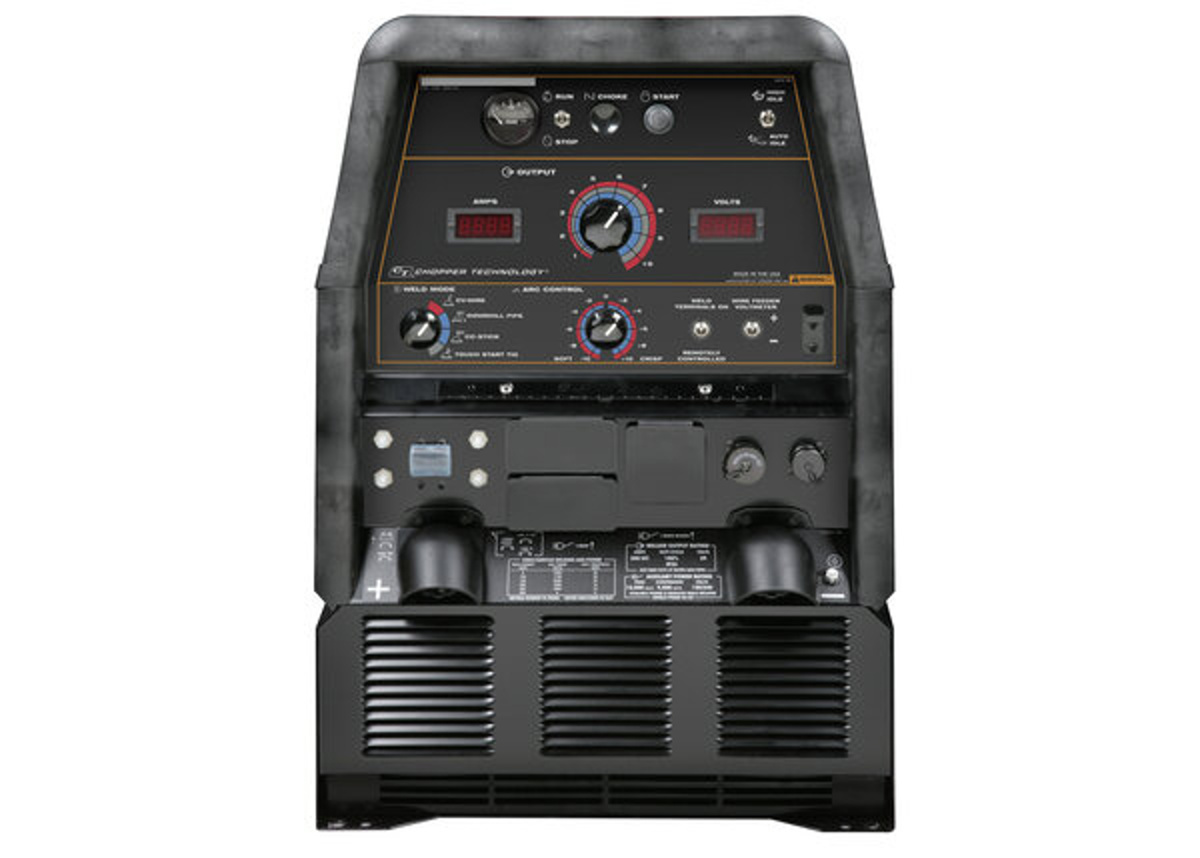

• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Lincoln Electric Chopper Technology® - provides easy starts, a smooth arc, low spatter and optimal bead appearance.
• Peak Single-Phase AC Generator Power for Motor Starting (10,500 watts peak)
• AC generator voltage is constant at 120V or 240V at any weld dial setting.
• Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources. Lincoln Electric was the first in the welding industry with this feature.
• Welding and AC Generator Outputs rated at 104ºF (40ºC).
• 2 Cylinder, Carburetor Engine, Air-cooled
• Output AC Amps Max: 300 A, Output DC Amps Max: 305 A
