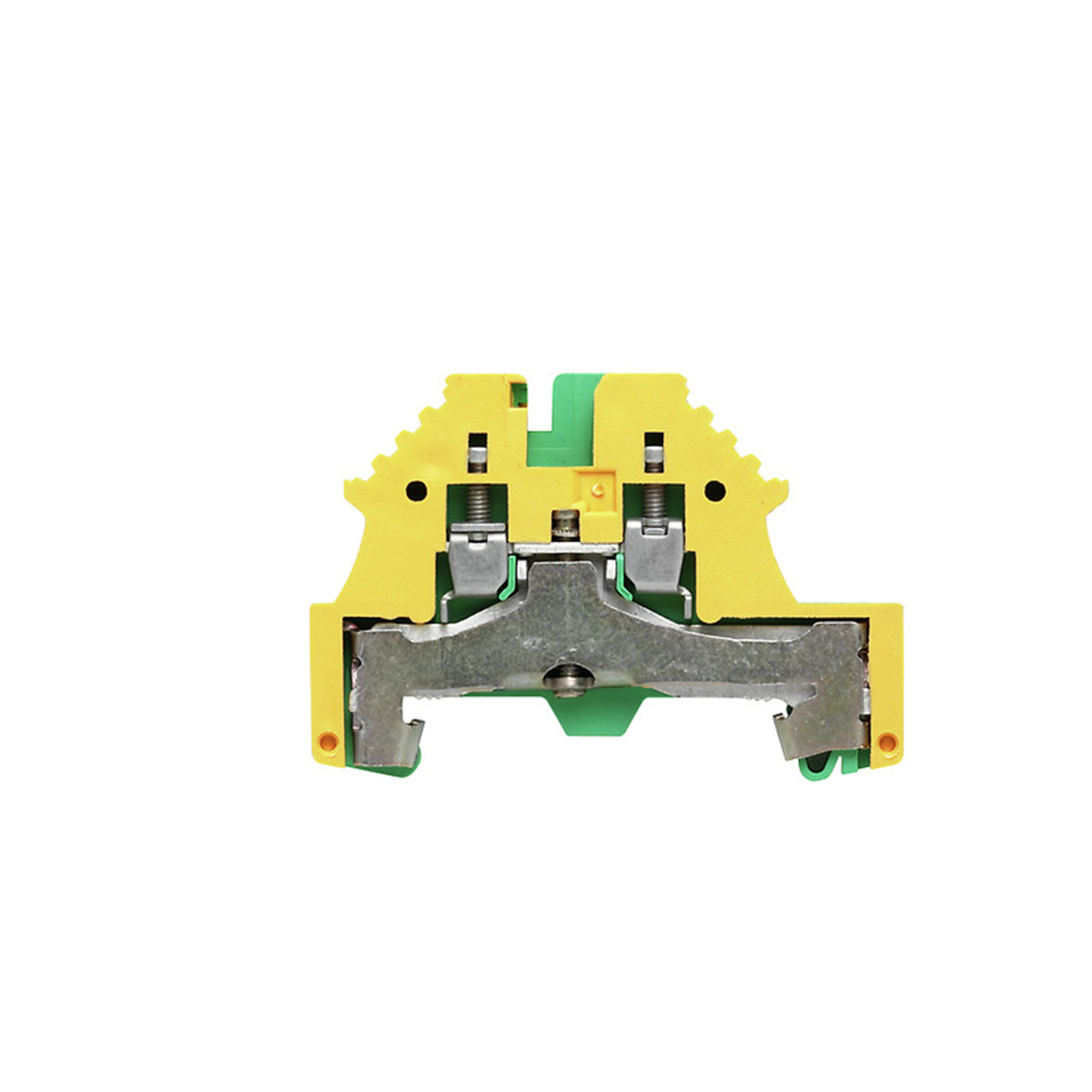

Weidmuller Klippon® W-Series Single Level PE Terminal Blocks Screw Connection 26 - 12 AWG
Mfg #:
1016200000
BOR #:
3446643
This terminal block has the ability to use both screw-in and plug-in cross-connections for potential distribution and two conductors of the same diameter can be connected in a single terminal point in accordance with UL1059.
- Clamping screw connection does not require retightening
- Precise clamping yoke and current bar design for safe contact
- Products are delivered with clamping yoke open for quick installation
- The clamping yoke properties compensate for temperature-indexed changes to the conductor to prevent loosening
- The screw connection is an established connection element and can be clipped to or removed from the terminal rail in either direction
- Vibration-resistant connectors
| Brand | Weidmuller |
| Wire Size | 26 - 12 AWG |
| Connection Type | Screw Connection |
| Color | Green/Yellow |
| Width | 0.201 in |
| Weidmuller Specification Sheet | Specification Sheet |
|
