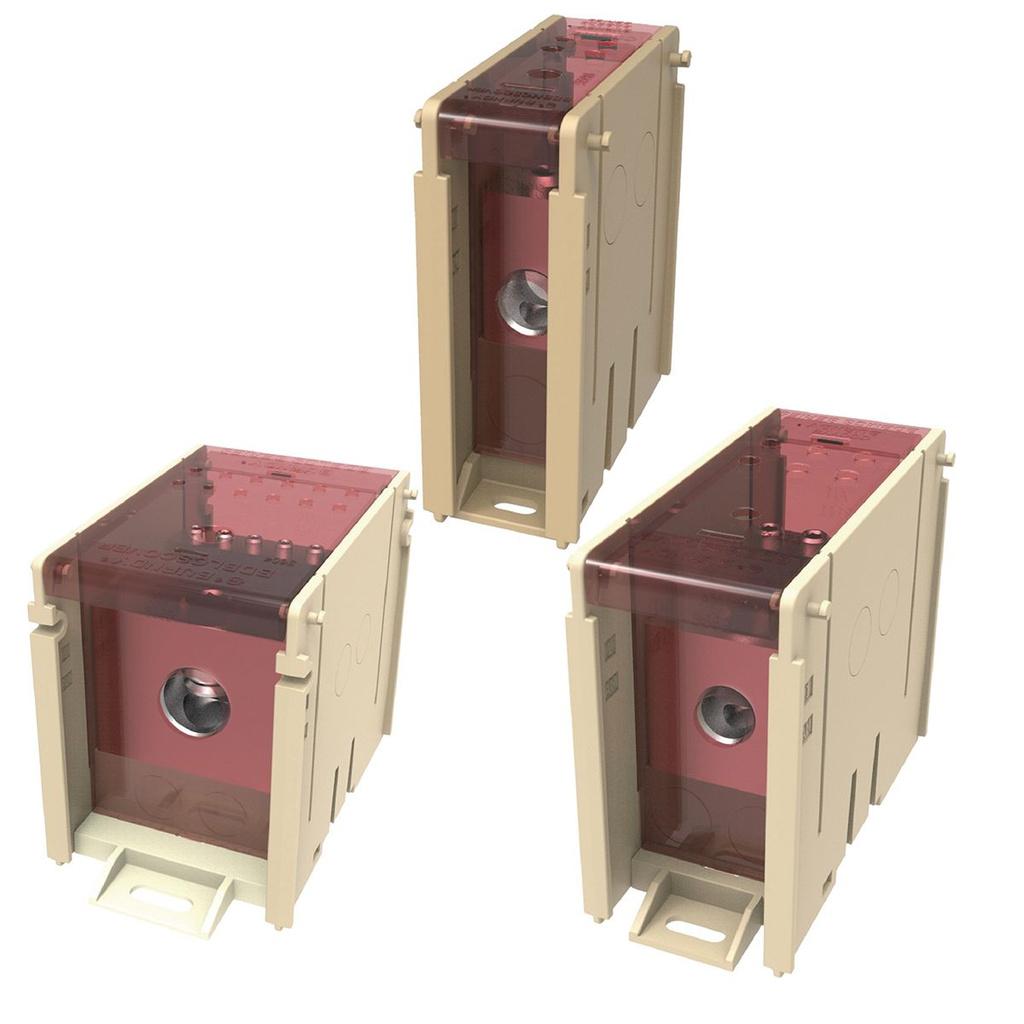

Burndy Versipole™ Finger-safe Style Configurable Power Distribution Blocks

Mfg #: BDBMCS3U3FS

BOR #: 3295946

View all 31 in product family

Looking for prices?

Create an Account

The VERSIPOLE™ Configurable Series Power Distribution Blocks are used for splicing and distributing power from primary run(s) to secondary/branch circuits. They are offered in standard one, two, or three pole configurations.

1000 Volt Rated
Allow for panel mounting, medium and large sizes also allow for DIN rail mounting
Bases and side barriers of glass-reinforced nylon 6/6 for extra durability and excellent insulating properties, carry a UL94 flammability rating of V0
High Short-Circuit Current rating up to 100kA with proper fusing
AL9CU dual rated for use with copper and aluminum conductors
Finger-Safe style are provided with translucent polycarbonate top covers and end plates to permit easy visual inspection and provide IEC 60529 IP-20 Rating
Range taking designs accommodate wire sizes up to 535 DLO and can support 1 or 2 run conductors and up to 12 taps for secondary circuits
Rated for use with both code and flex conductor without requiring ferrules

Product can be ordered only in multiples of

Specifications

Brand	Burndy
Amperage	310 A
Number of Poles	3 Pole
Material	Aluminum
