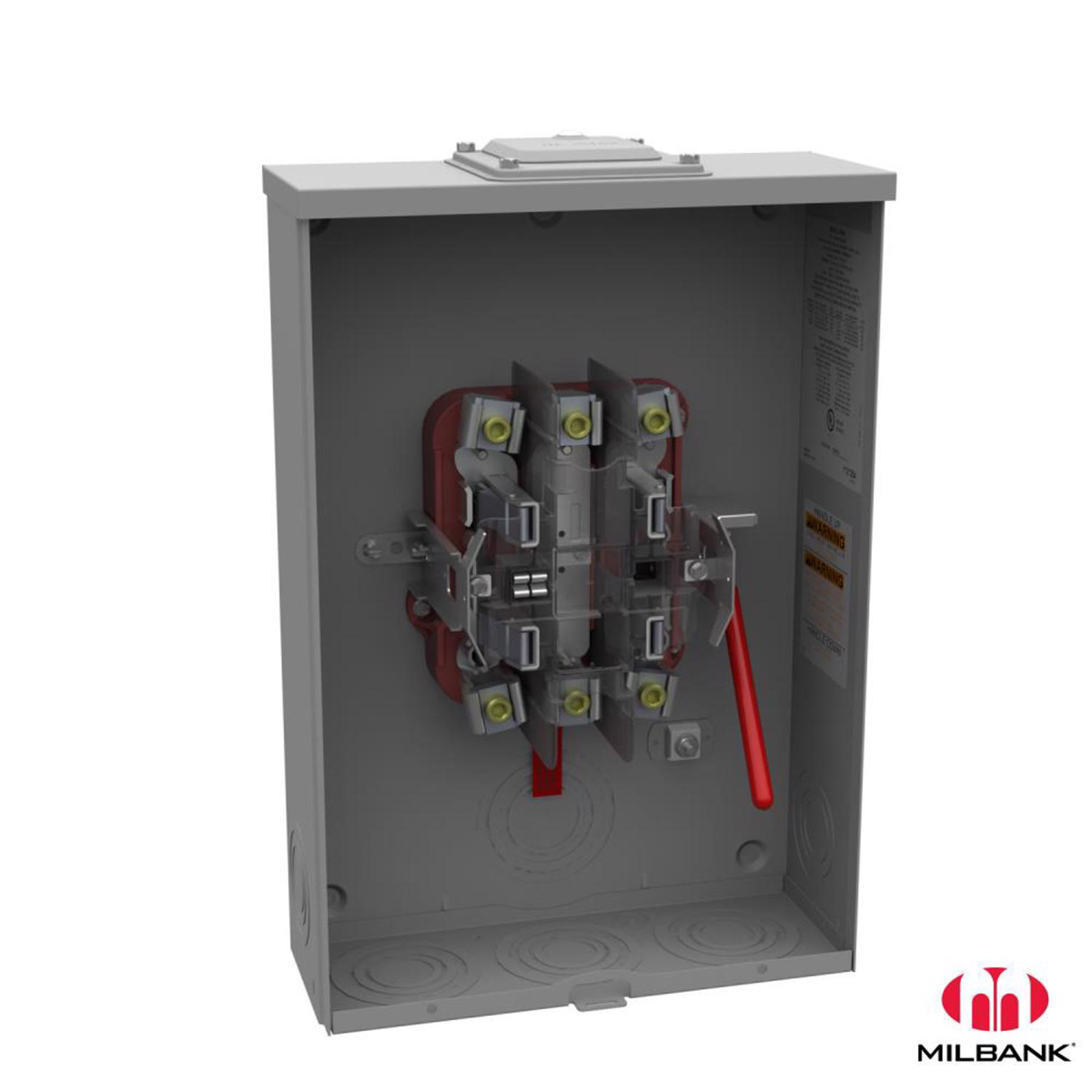

Milbank Lever Bypass Ringless Meter Sockets 200 A 600 VAC OH/UG 5 Jaw 1 Position 1 Phase Bonded Ground Strap Large Hub Open Adapt to Small Closing Plate
Mfg #:
U9551RXL5T9IL
BOR #:
2988251
| Brand | Milbank |
| Mounting Type | Surface |
| Service Type | OH/UG |
| Ground Type | Bonded Ground Strap |
| Amperage | 200 A |
| Height | 19 in |
| Bypass | Lever Bypass |
| Depth | 4.844 in |
| Insulation | Glass Polyester |
| Includes | 5th Terminal 9 Oclock Position, 7/16 In Knockouts Lock Provision |
| Number of Positions | 1 Position |
| Top Type | Large Hub Open Adapt to Small Closing Plate |
| Enclosure Material | Steel |
| Number of Phases | 1 Phase |
| Enclosure Type | N3R Enclosure |
| Number of Jaws | 5 Jaw |
| Type | Ringless |
| Width | 13 in |
| Voltage | 600 VAC |
| Milbank Specification Sheet | Specification Sheet |
|
