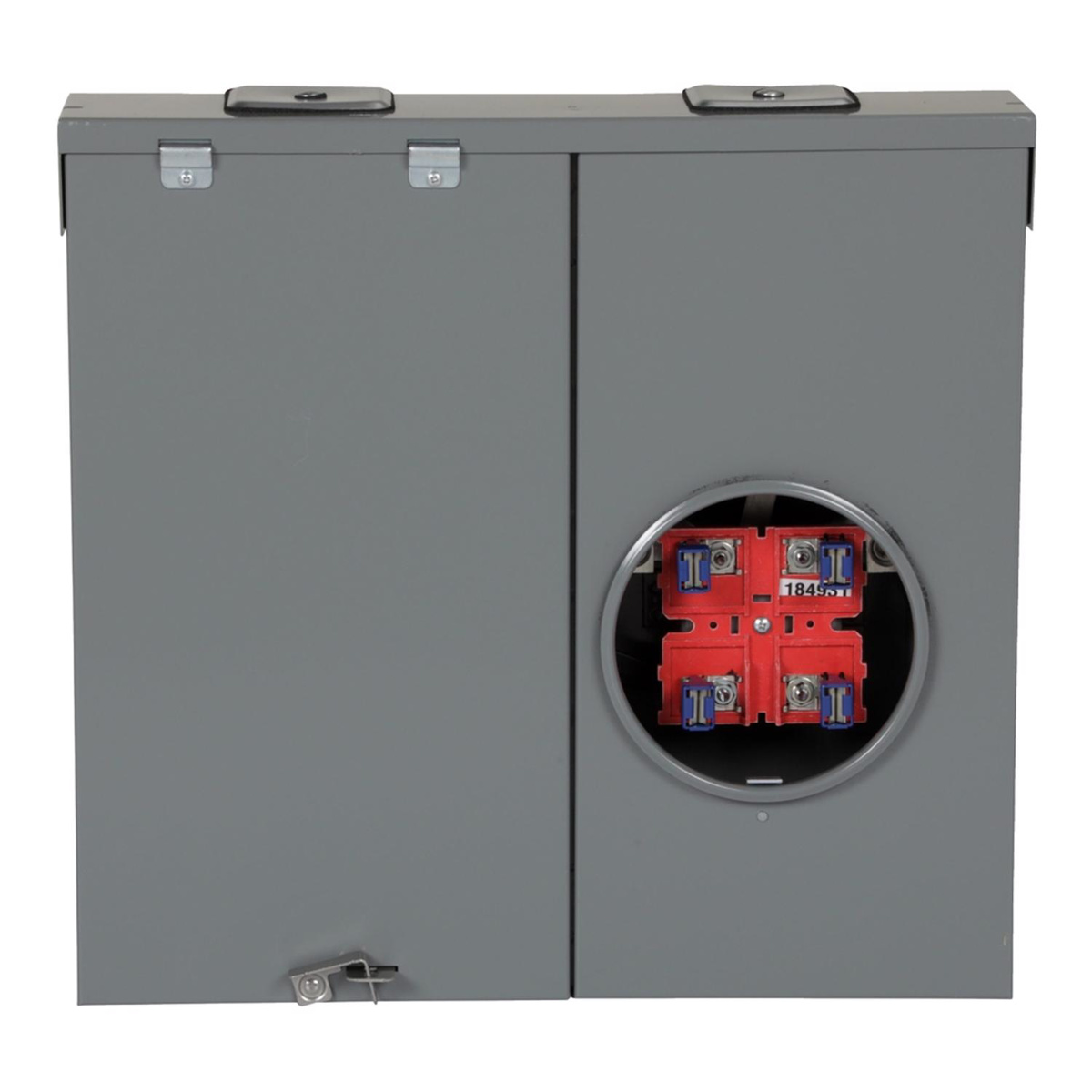

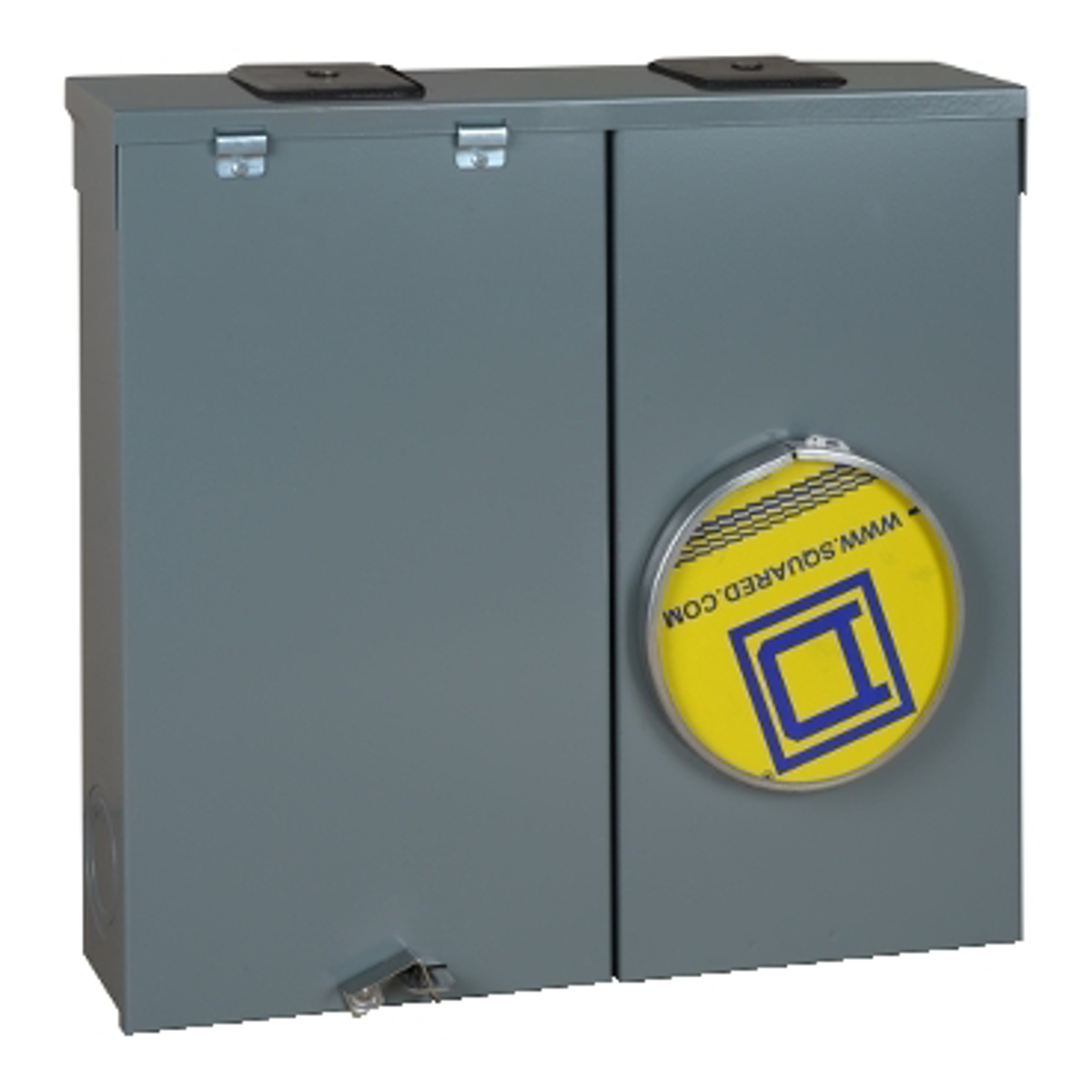

Square D No Bypass Ringed Meter Mains 200 A OH/UG
Mfg #:
CM200S
BOR #:
1401376
Ringed Meter Mains
- No Bypass
Related Items
Select Options
| Mounting Type | Surface |
| Type | Ringed |

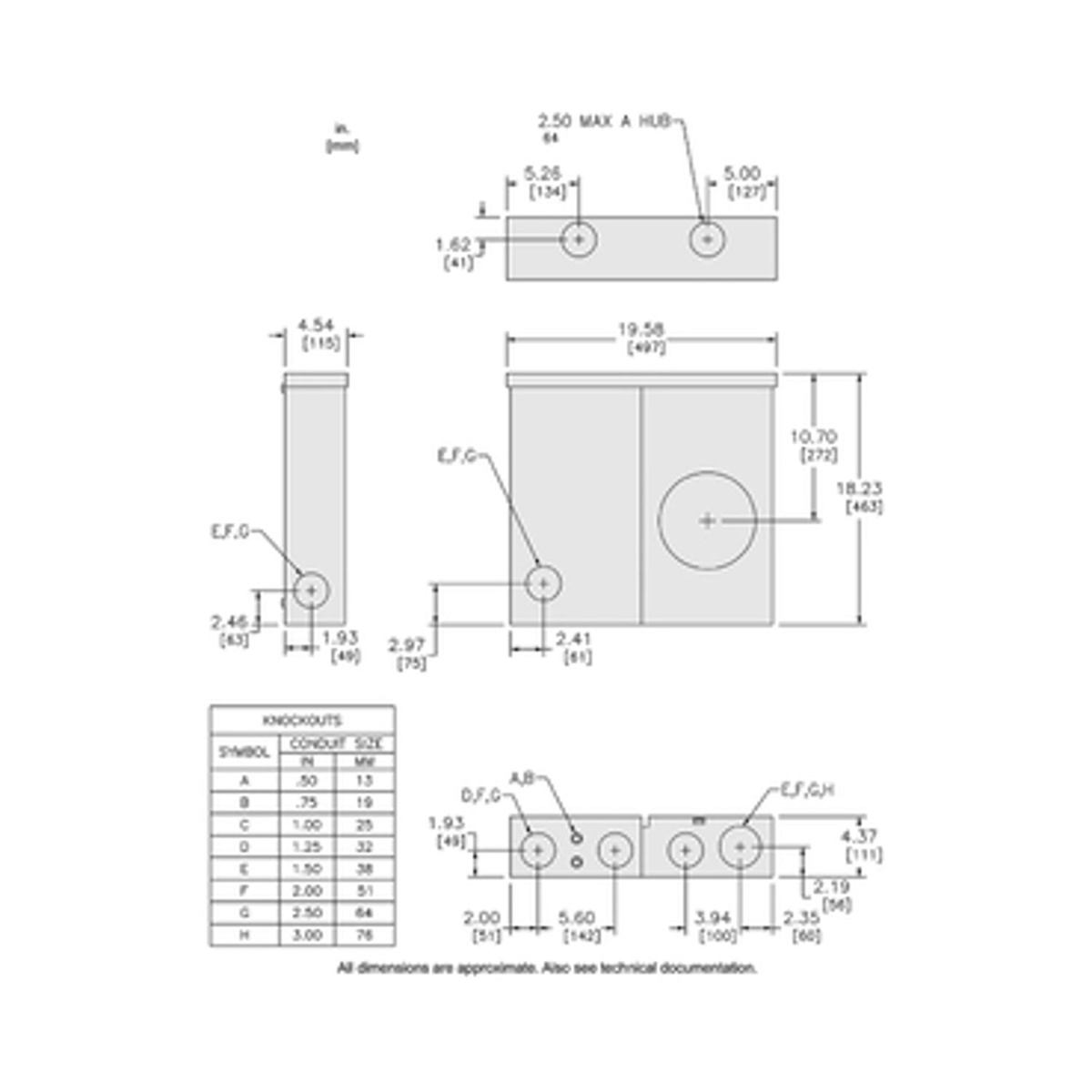

| Depth | 4.6 in |
| Height | 18.23 in |
| Width | 19.58 in |
| Brand | Square D |
| Amperage | 200 A |
| Number of Phases | 1 |
| Service Type | OH/UG |
| Bypass | No Bypass |
| Certificate, UL - UL_Certificate_E6294-19970527 (pdf) | Compliance |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Schneider Electric Specification Sheet | Specification Sheet |
|
| Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf) | Catalog |
|
| Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf) | Catalog |
|
| QO Circuit Breaker Meter Mains Installation Instructions - 40271-280-02 (pdf) | Installation and Instruction Manuals |
|
