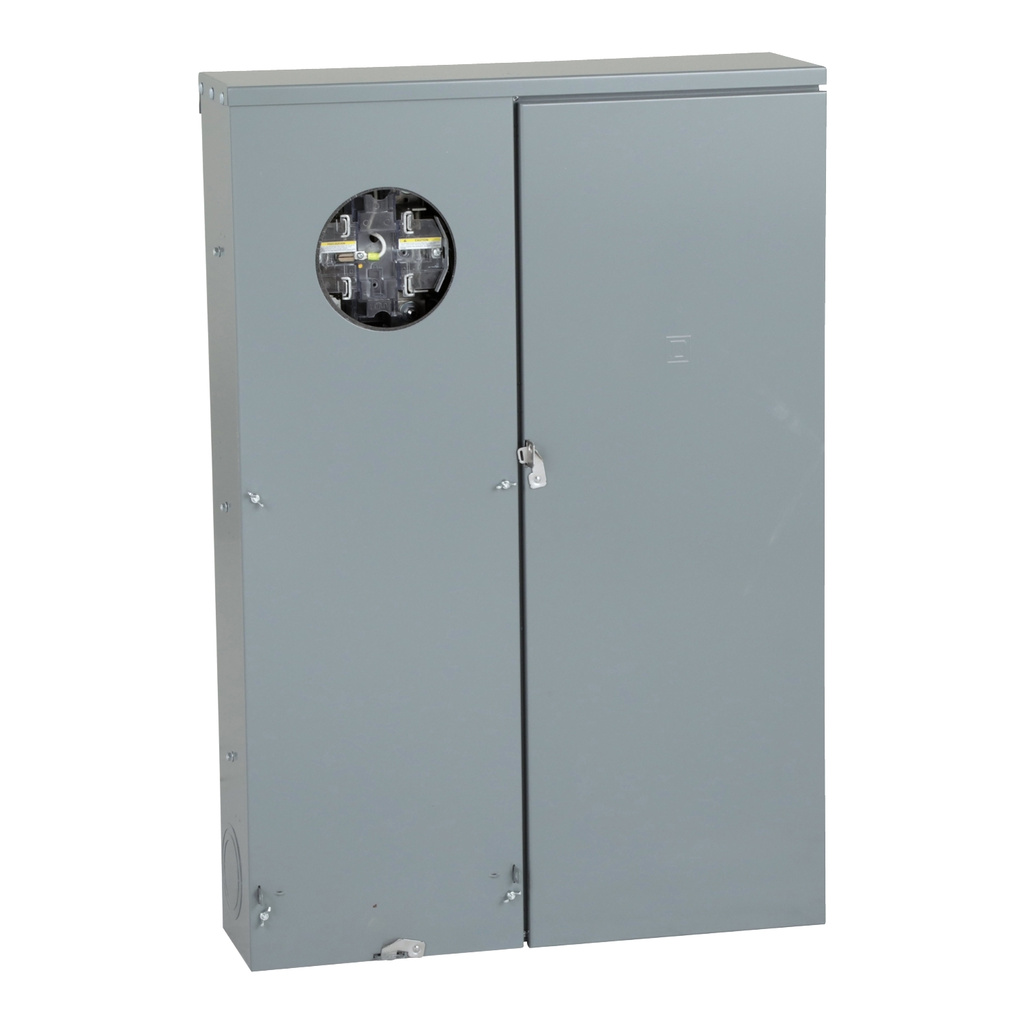

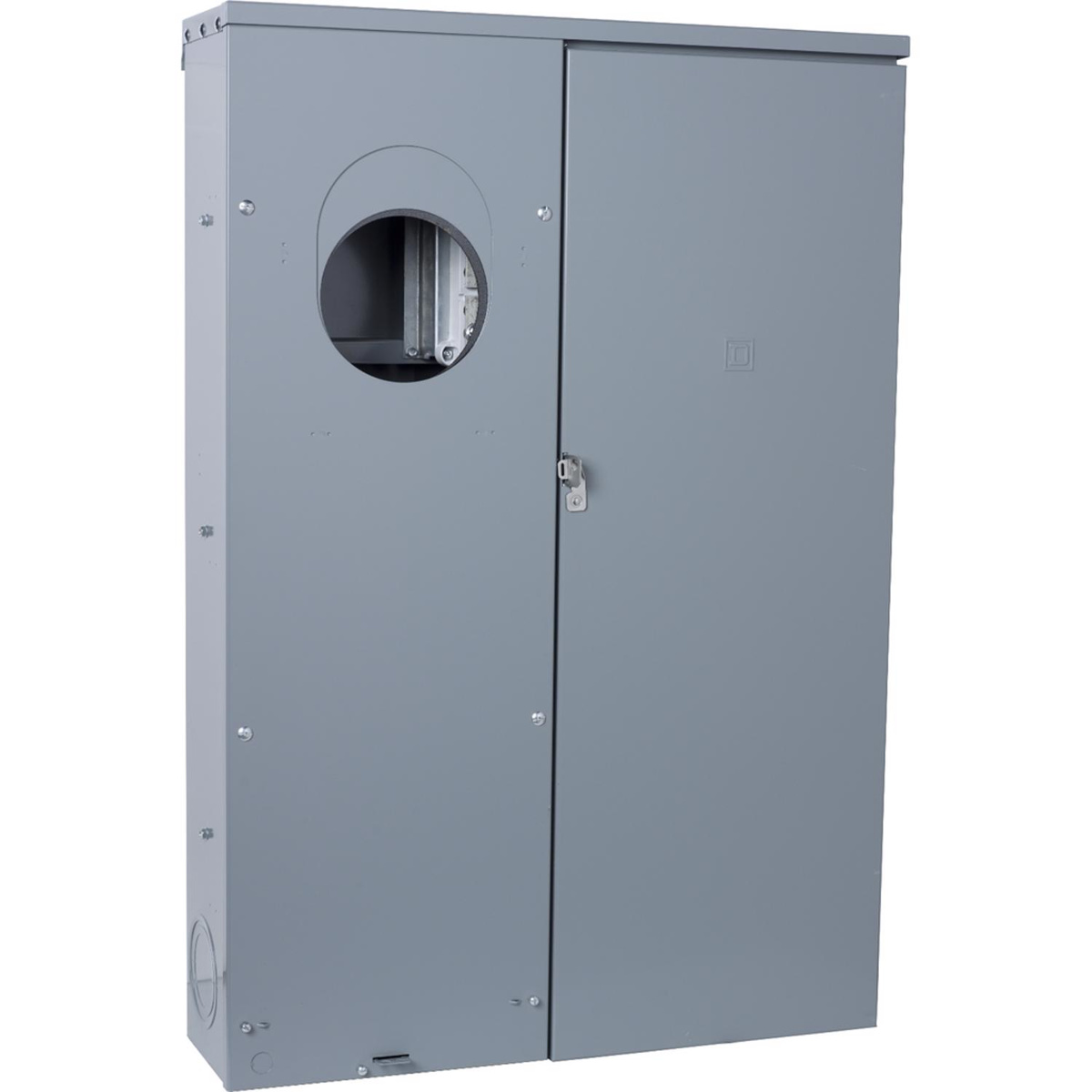

Square D Lever Bypass Ringless Meter Mains 400 A UG
Mfg #:
QU816D400CL
BOR #:
1527472
Ringless Meter Mains
- Lever Bypass
| Mounting Type | Surface |
| Type | Ringless |
| Depth | 7.87 in |
| Height | 43 in |
| Width | 28-1/4 in |
| Brand | Square D |
| Amperage | 400 A |
| Number of Phases | 1 |
| Service Type | UG |
| Bypass | Lever Bypass |
| Number of Circuits | 16 Circuit |
| Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf) | Catalog |
|
| QO Load Centers and Circuit Breakers Brochure - 1100BR1201 (pdf) | Brochure |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
| An Overview of Significant Changes to the 2020 National Electrical Code for Dwellings (Retail) Brochure - 998-20857871_GMA-US_RETAIL (pdf) | Brochure |
|
| QO Meter main, Certificate, UL - UL_Certificate_E6294-19941219 (pdf) | Compliance |
|
| Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf) | Catalog |
|
| Schneider Electric Specification Sheet | Specification Sheet |
|
| QO Circuit Breaker Meter Mains Installation Instructions - 40271-280-02 (pdf) | Installation and Instruction Manuals |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
