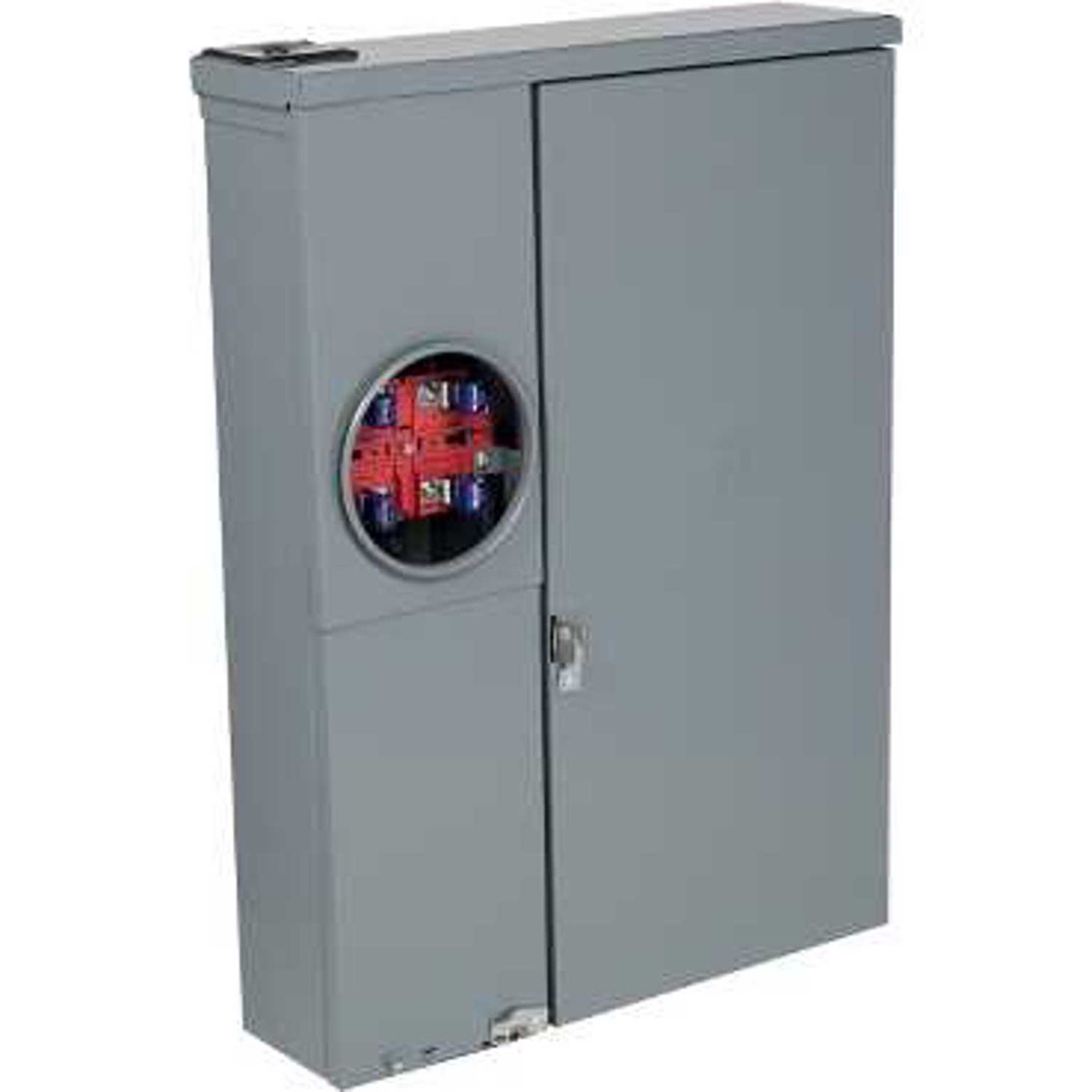

Square D Homeline™ HOM Main Lug Only Combination Service Entrance Loadcenter - EUSERC 200 A Ring Style - Surface OH/UG
This product has been discontinued.
Mfg #:
SC12L200S
BOR #:
1121576
Homeline™ HOM Series Main Lug Only Combination Service Entrance Loadcenter - EUSERC
- Used in residential applications where local codes require service disconnects to be located outside the dwelling.
- NEMA Type 3R enclosure
- All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294
- Single phase
- 3-wire
- Suitable only for use as service equipment
Related Items
Select Options
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 20 A 120/240 VAC 10 kAIC 2 Pole 1 Phase
View details
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 30 A 120/240 VAC 10 kAIC 2 Pole 1 Phase
View details
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 50 A 120/240 VAC 10 kAIC 2 Pole 1 Phase
View details
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 70 A 120/240 VAC 10 kAIC 2 Pole 1 Phase
View details
| Brand | Square D |
| Number of Spaces | 12 Space |
| Cover Type | Ring Style - Surface |
| Bus Material | Aluminum |
| Amperage | 200 A |
| Number of Phases | 1 Phase |
| NEMA Rating | NEMA 3R |
| Voltage | 120/240 VAC |
| Service Type | OH/UG |
| Wire Size | (1) 4 AWG - 250 kcmil |
| Bypass | No Bypass |
| Number of Circuits | 0 Circuit |
| Number of Terminals | 4 Terminal |
| Schneider Electric Specification Sheet | Specification Sheet |
|
| Retail Products Catalog.pdf | Catalog |
|
| UL_Certificate_E6294-19900206.pdf | Compliance |
|
| UL_Certificate_E6294-19941219.pdf | Compliance |
|
