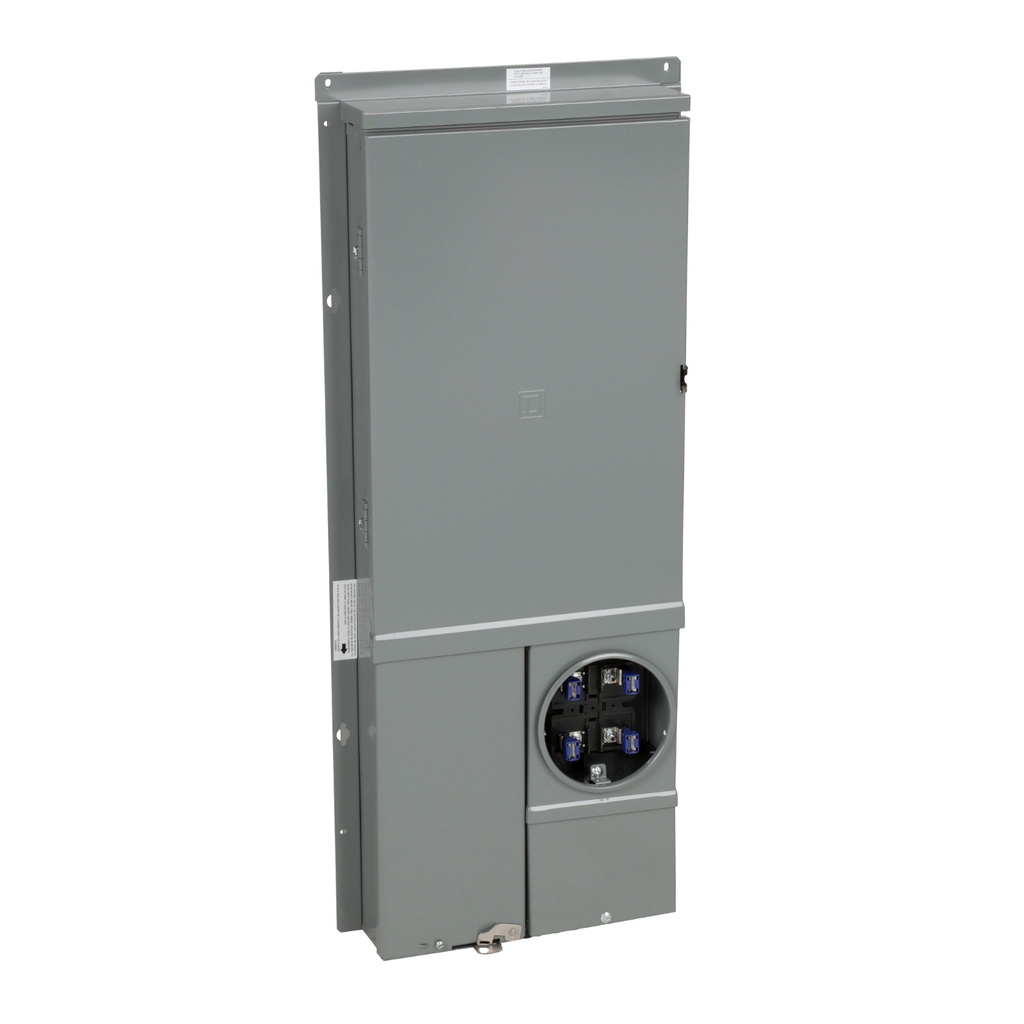

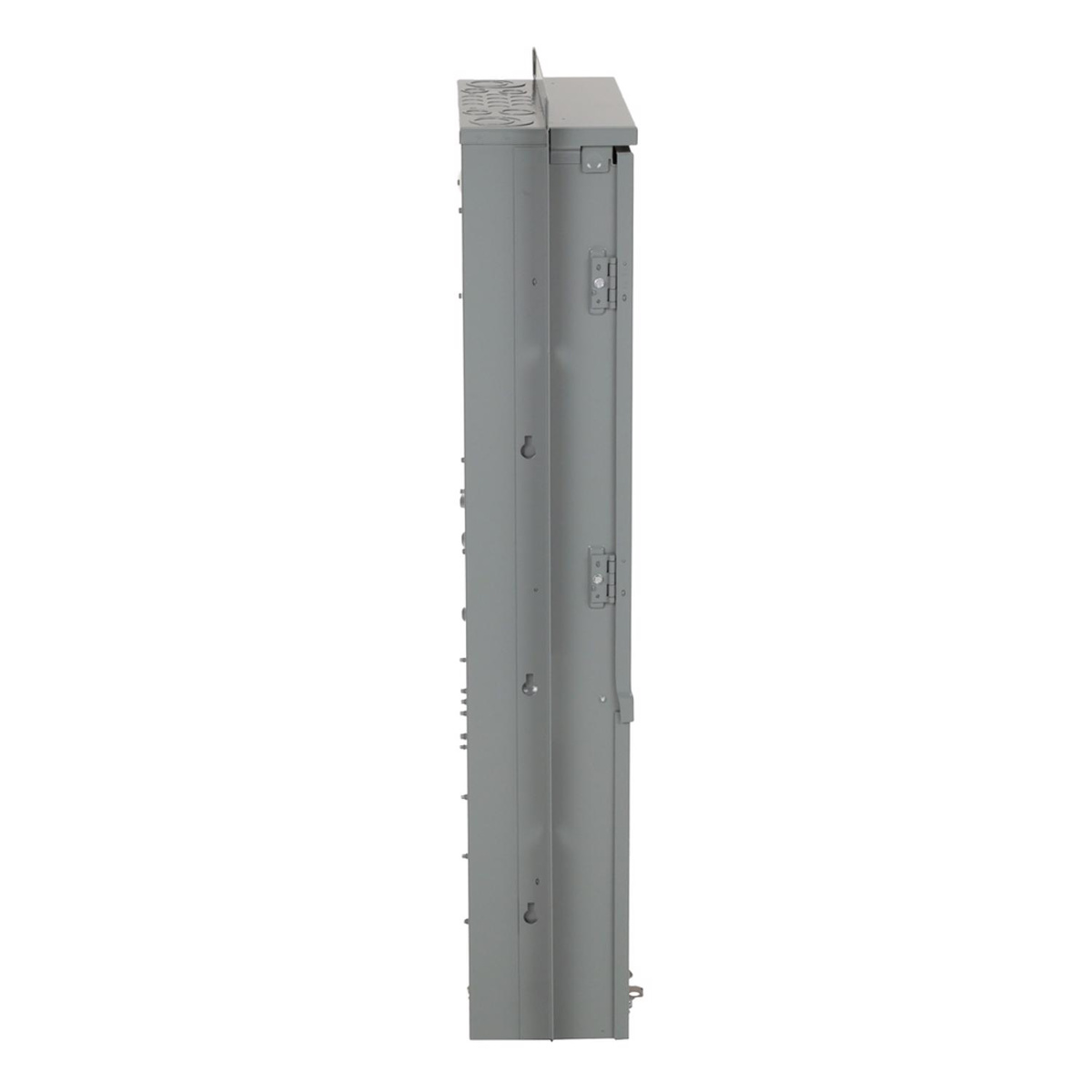

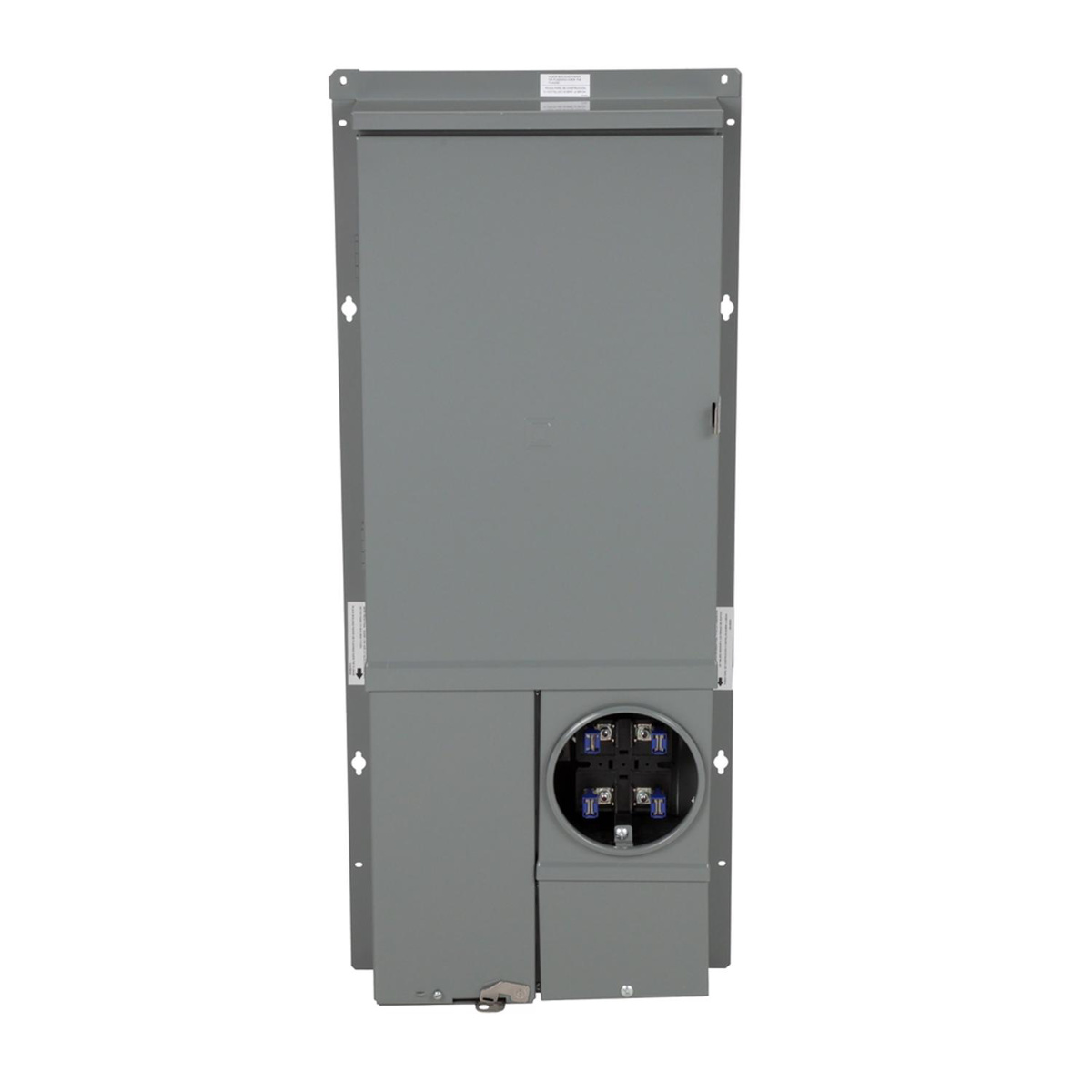

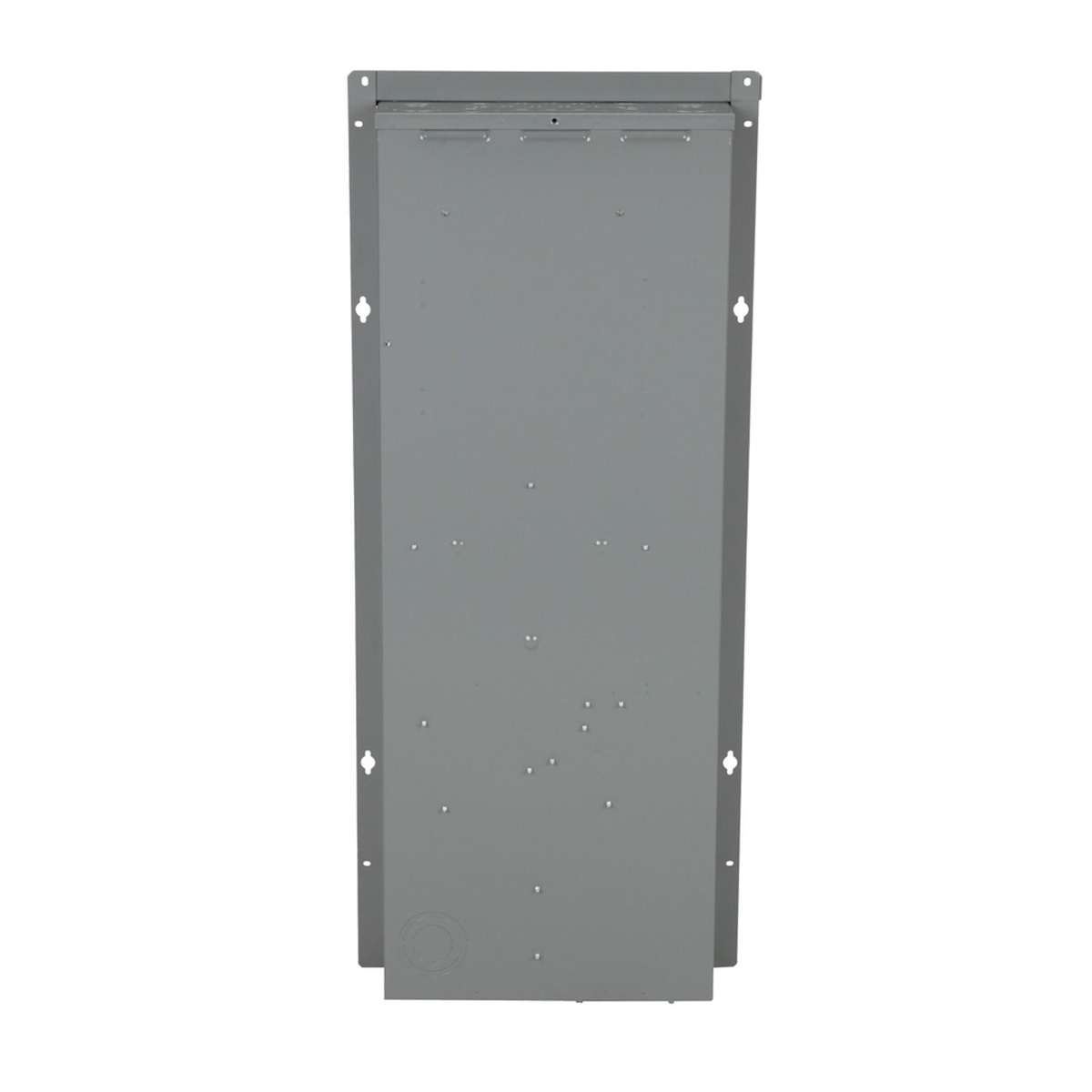

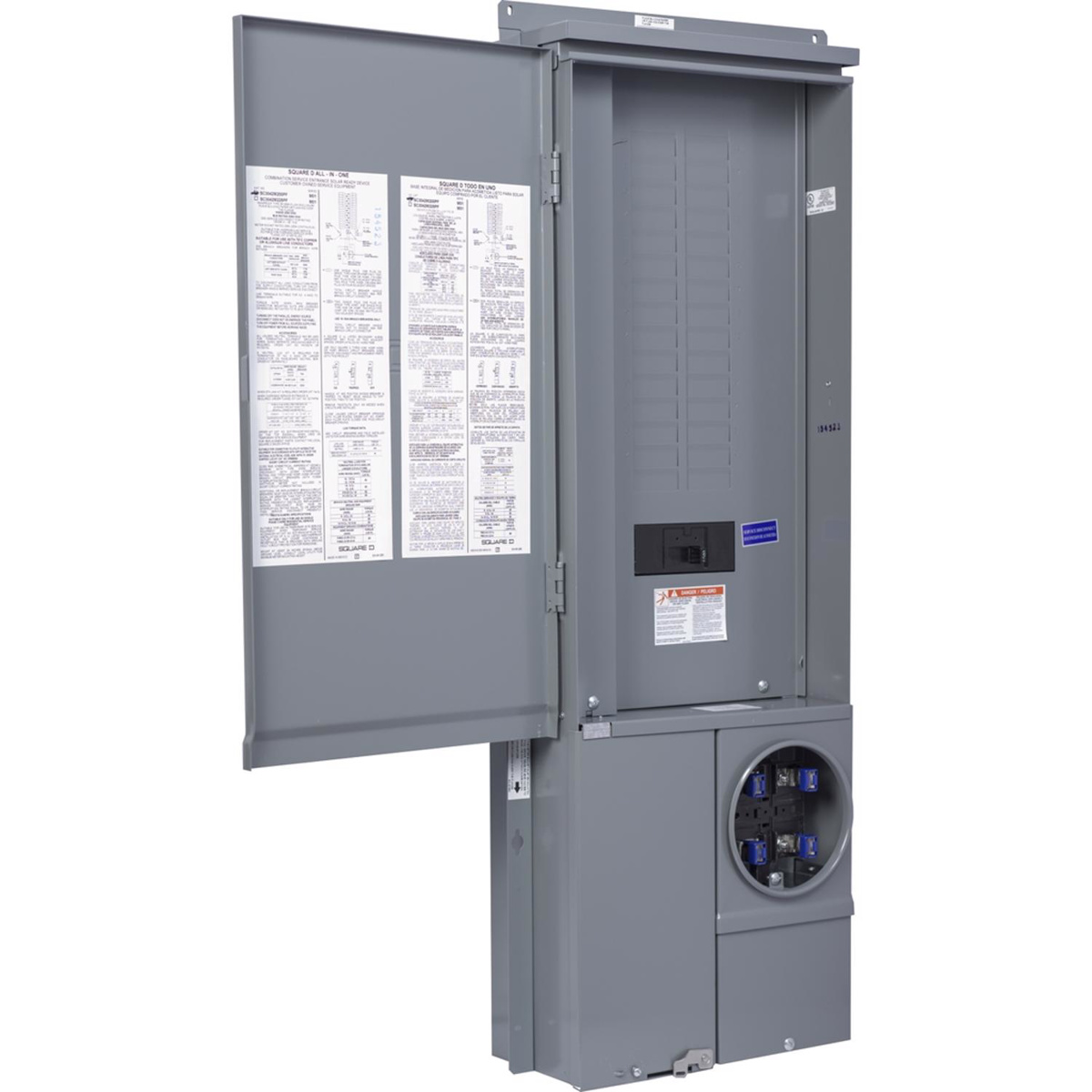

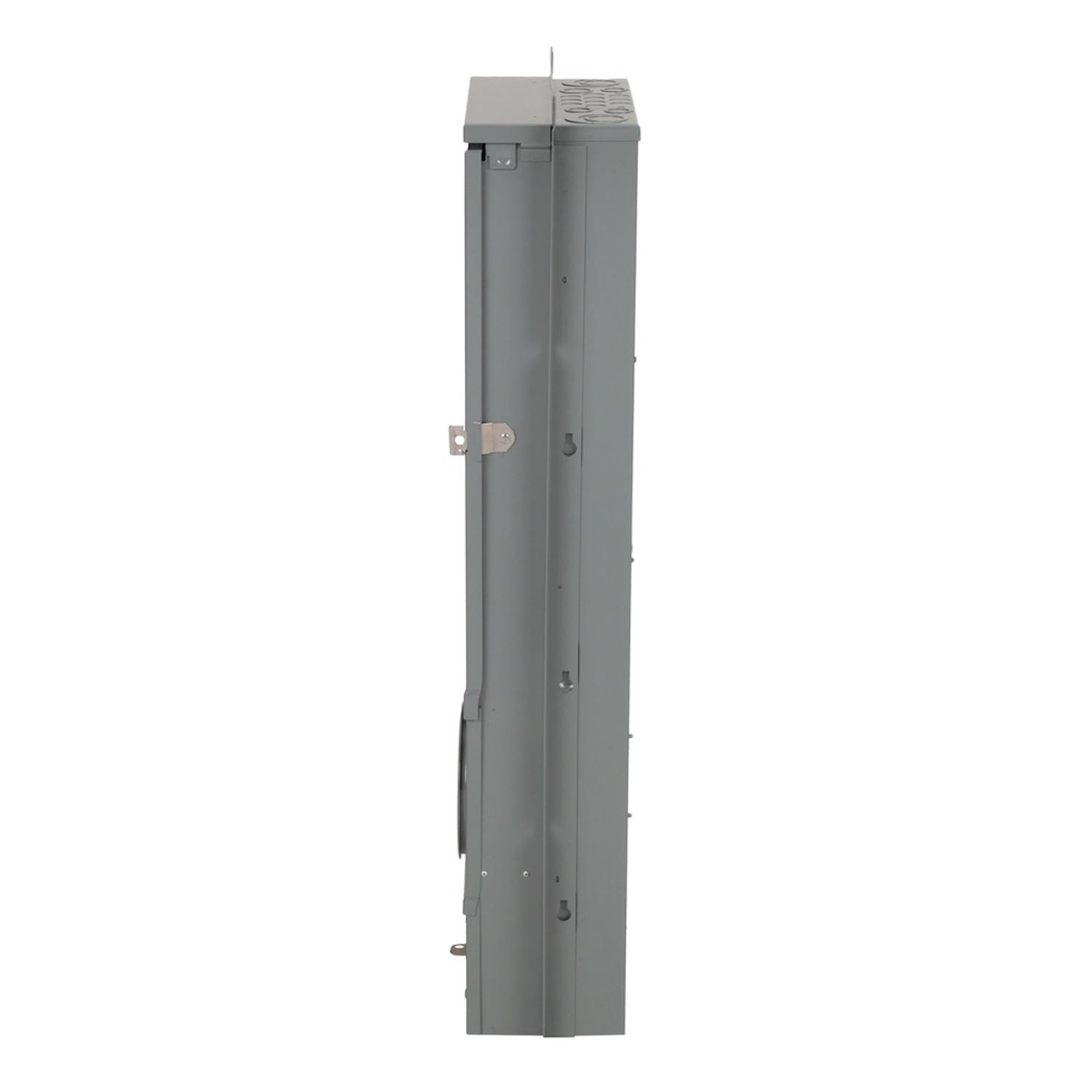

Square D Homeline™ HOM Main Breaker Plug-on Neutral Combination Service Entrance Loadcenter - EUSERC 200 A Ring Style - Semiflush OH/UG
Mfg #:
SC2040M200PF
BOR #:
3205857
Homeline™ Main Breaker Neutral Combination Service Entrance Loadcenters
- HOM Series
- Plug-on
- EUSERC
- Solar Ready
Related Items
Select Options
Square D QO® QOM Main Breaker Molded Case Bolt-on Circuit Breakers 200 A 120/240 VAC 22 kAIC 2 Pole 1 phase
View details
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 20 A 120 VAC 10 kAIC 1 Pole 1 Phase
View details
Square D Homeline™ HOM Molded Case Plug-in Circuit Breakers 20 A 120/240 VAC 10 kAIC 2 Pole 1 Phase
View details
Square D Homeline™ HOM Combination AFCI Molded Case Plug-in Circuit Breakers 15 A 120 VAC 10 kAIC 1 Pole 1 Phase
View details
Square D Homeline™ HOM Dual Function AFCI / GFCI Molded Case Plug-in Circuit Breakers 20 A 120 VAC 10 kAIC 1 Pole 1 Phase
View details
| Brand | Square D |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 20 Space |
| Cover Type | Ring Style - Semiflush |
| Bus Material | Aluminum |
| Amperage | 200 A |
| Number of Phases | 1 phase |
| NEMA Rating | NEMA 3R |
| Voltage | 120/240 VAC |
| Configuration | Solar Ready with Kit SR69064A (Order Separately) |
| Service Type | OH/UG |
| Wire Size | (1) 4 AWG - 250 kcmil |
| Bypass | No Bypass |
| Number of Circuits | 40 Circuit |
| Number of Terminals | 4 Terminal |
| Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf) | Catalog |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| HomeLine CSED Circuit Breaker Installation Instructions - 40270-308-05 (pdf) | Installation and Instruction Manuals |
|
| Homeline Standard Load Centers, Certificate, UL - 20170609-E6294 (pdf) | Compliance |
|
| Homeline Standard Load Centers, Certificate, UL - UL_Certificate_E6294-19900206 (pdf) | Compliance |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf) | Catalog |
|
