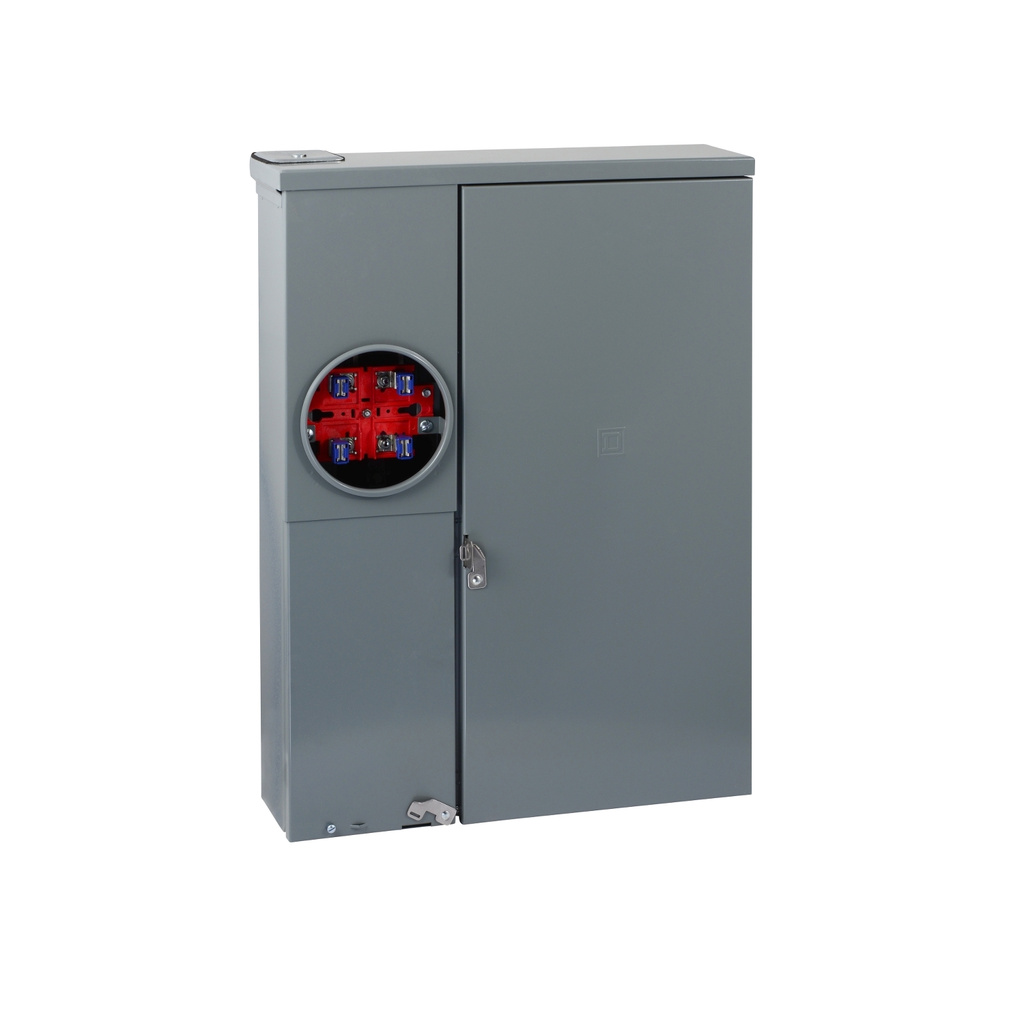

Square D Homeline™ HOM Main Breaker Plug-on Neutral Combination Service Entrance Loadcenter - EUSERC 150 A Ring Style - Semiflush OH/UG
Mfg #:
SC816F150PS
BOR #:
3285817
Homeline™ Main Breaker Neutral Combination Service Entrance Loadcenters
- HOM Series
- Plug-on
- EUSERC
- Solar Ready
| Brand | Square D |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 8 Space |
| Cover Type | Ring Style - Semiflush |
| Bus Material | Aluminum |
| Amperage | 150 A |
| Enclosure Type | N3R Enclosure |
| Number of Phases | 1 Phase |
| NEMA Rating | NEMA 3R |
| Voltage | 120/240 VAC |
| Service Type | OH/UG |
| Wire Size | (1) 4 AWG - 250 kcmil |
| Bypass | No Bypass |
| Includes | Circuit breaker 1) 2P 150 A 120/240 VAC main supply ready assembled |
| Number of Circuits | 16 Circuit |
| Number of Terminals | 4 Terminal |
| Schneider Electric Specification Sheet | Specification Sheet |
|
