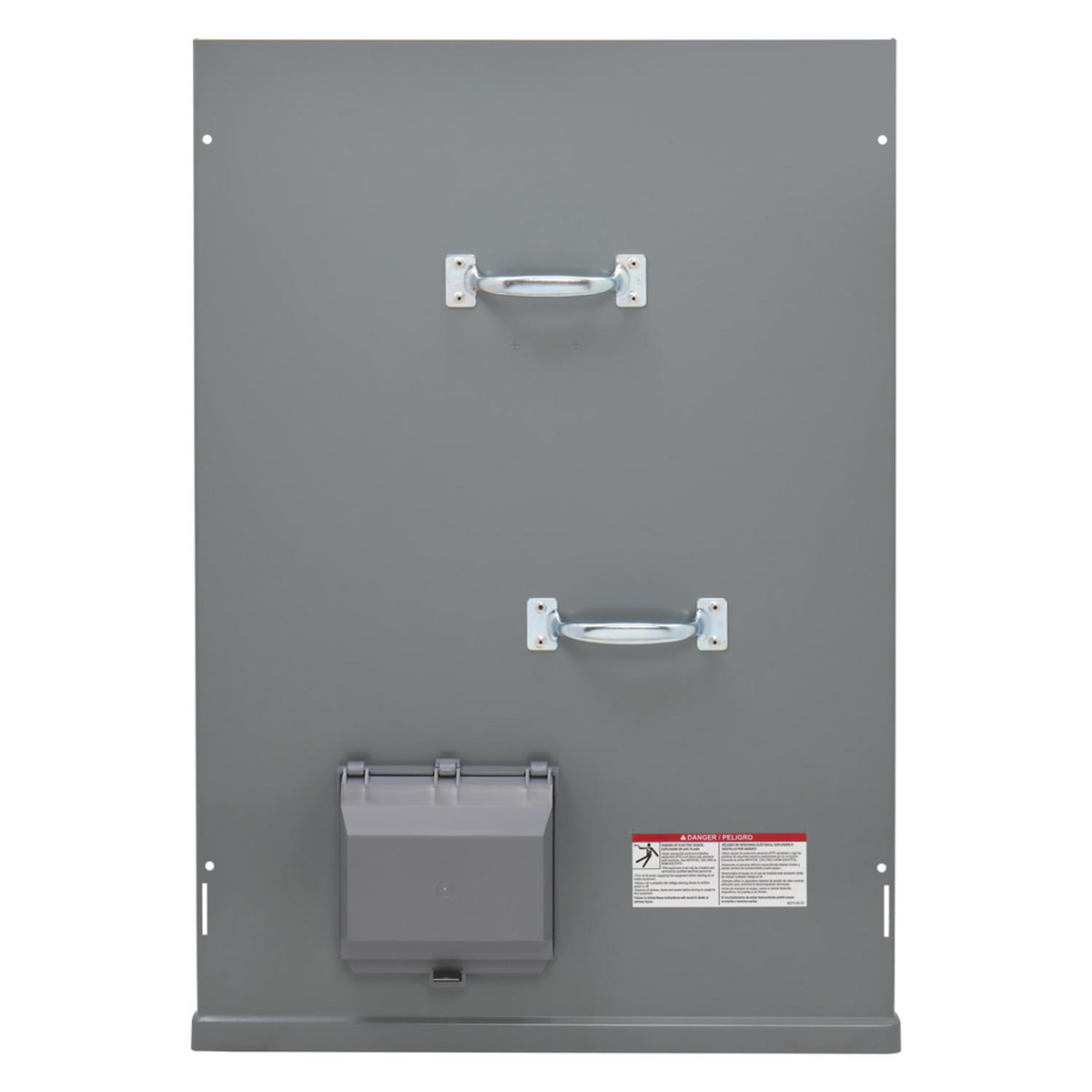

Square D EZM EZ Meter-Pak™ Meter Center Single Phase Main Breakers - EUSERC 400 A 1 phase in ,, 1 phase out

Mfg #: EZM1400CBU
BOR #: 854470
Looking for prices?

EZM EZ Meter-Pak™ Meter Center Single Phase Main Breakers - EUSERC

  • EZ Meter-Pak Meter Centers
  • 3 wire
  • Single phase in, single phase out
  • Indoor/Rainproof
  • 120/240 Vac
  • SCCR main breaker
  • UL Listed
See More
Product can be ordered only in multiples of
Brand Square D
Interrupting Rating 65 kA
Enclosure Type N3R Enclosure
Bus Material Aluminum
Series EZM EZ Meter-Pak™
Amperage 400 A
Meter Center Style Main Breaker
NEMA Rating NEMA 3R
Voltage 120/240 VAC
Number of Phases 1 phase in ,, 1 phase out
Service Type UG
Includes Circuit-breaker 1) 2P 400 A 100 kA, Closing plate
EZ Meter-Pak Meter Centers Installation Instructions - 73293-715-04 (pdf) Installation and Instruction Manuals
Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf) Catalog
Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) Brochure
EZ Meter-Pak Meter Centers, Certificate, UL - E131840-19990804-CertificateofCompliance (pdf) Compliance
EZ Meter-Pak Meter Centers Installation Instructions - 73293-715-02 (pdf) Installation and Instruction Manuals
Square D EZ and MP Meter-Pak Meter Centers Brochure - 4100BR9801 (pdf) Brochure
Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf) Catalog
Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf) Catalog
