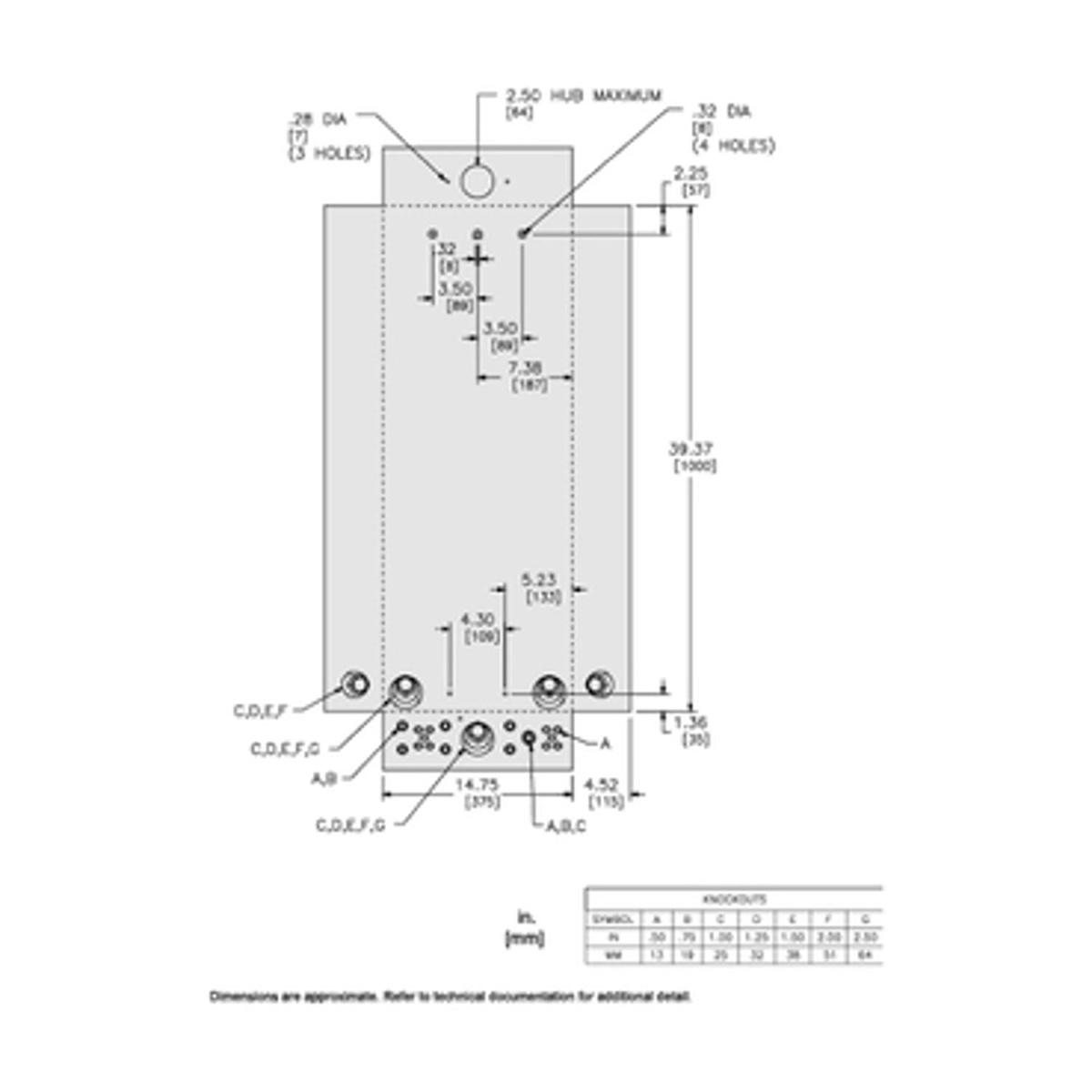

Square D Homeline™ N3R Convertible Main Lug Loadcenters 225 A 120/240 V 42

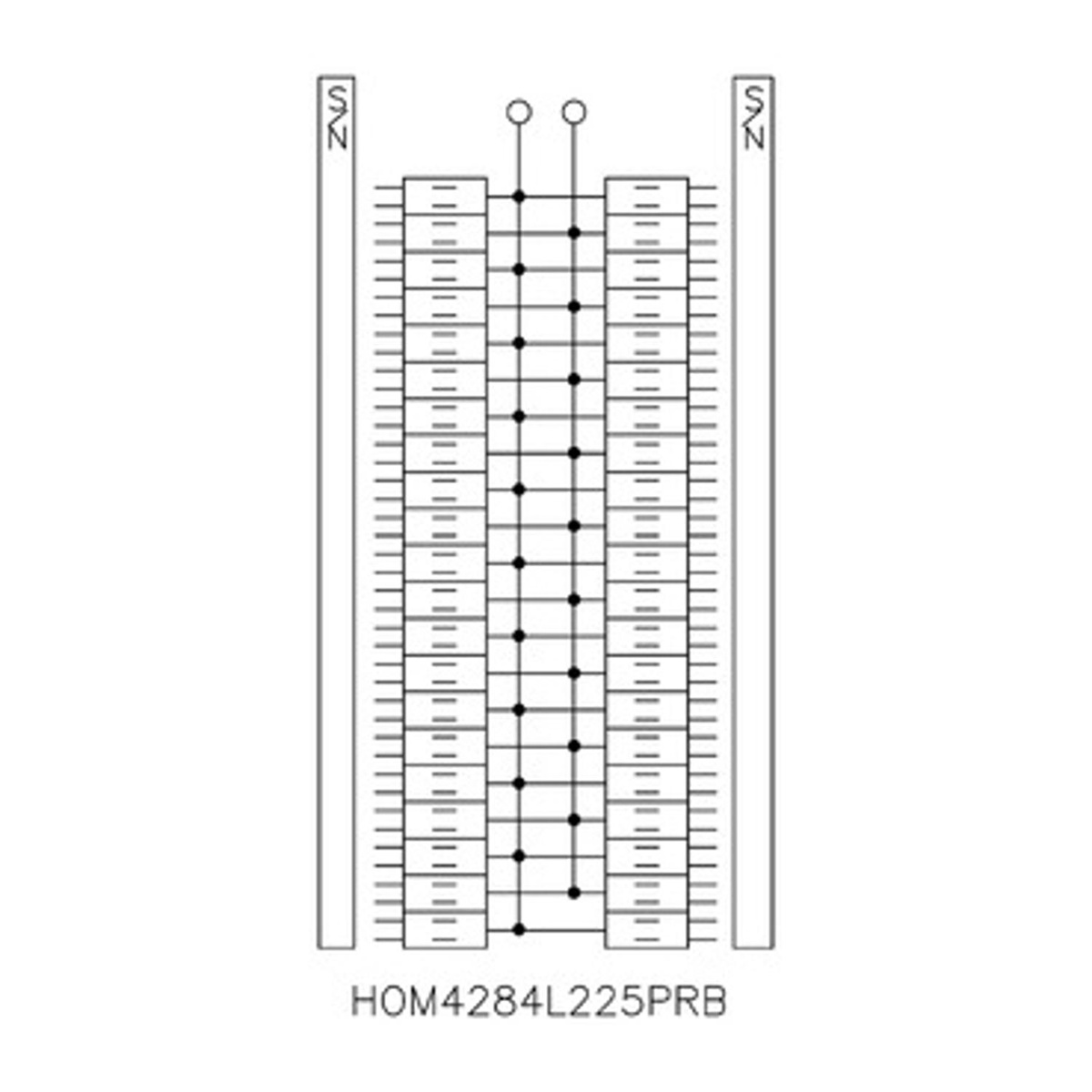

Mfg #: HOM4284L225PRB
BOR #: 3170787
Looking for prices?
Product can be ordered only in multiples of
Circuit Breaker Type HOM
Brand Square D
Number of Phases 1 phase
Wire Size 4 AWG - 300 kcmil
Voltage 120/240 V
Bus Material Aluminum
Includes Cover
Box Number 14R
Number of Circuits 84 Circuit
Cover Type surface cover
Interrupting Rating 10 kAIC
Number of Spaces 42
Amperage 225 A
Series Homeline™
NEMA Rating NEMA 3R
Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf) Catalog
Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) Catalog
Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) Brochure
Homeline Plug-on Neutral Load Centers, Certificate, UL - 20180524-E6294 (pdf) Compliance
QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) Installation and Instruction Manuals
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) Catalog
Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf) Brochure
QO and Homeline Outdoor Load Centers - Installation Instructions - 40281-607-02 (pdf) Installation and Instruction Manuals
Square D Specification Sheet Specification Sheet
A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) Brochure
