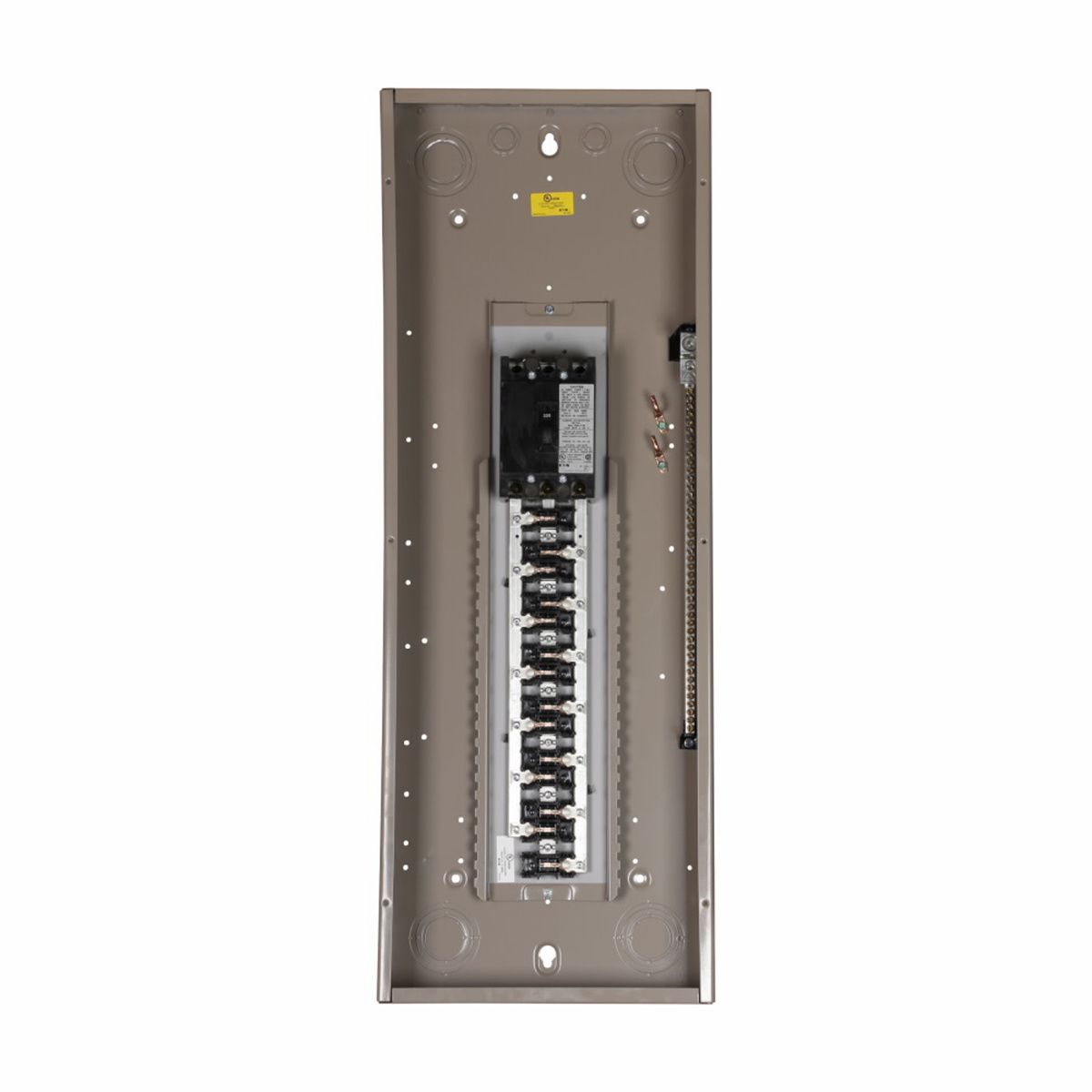

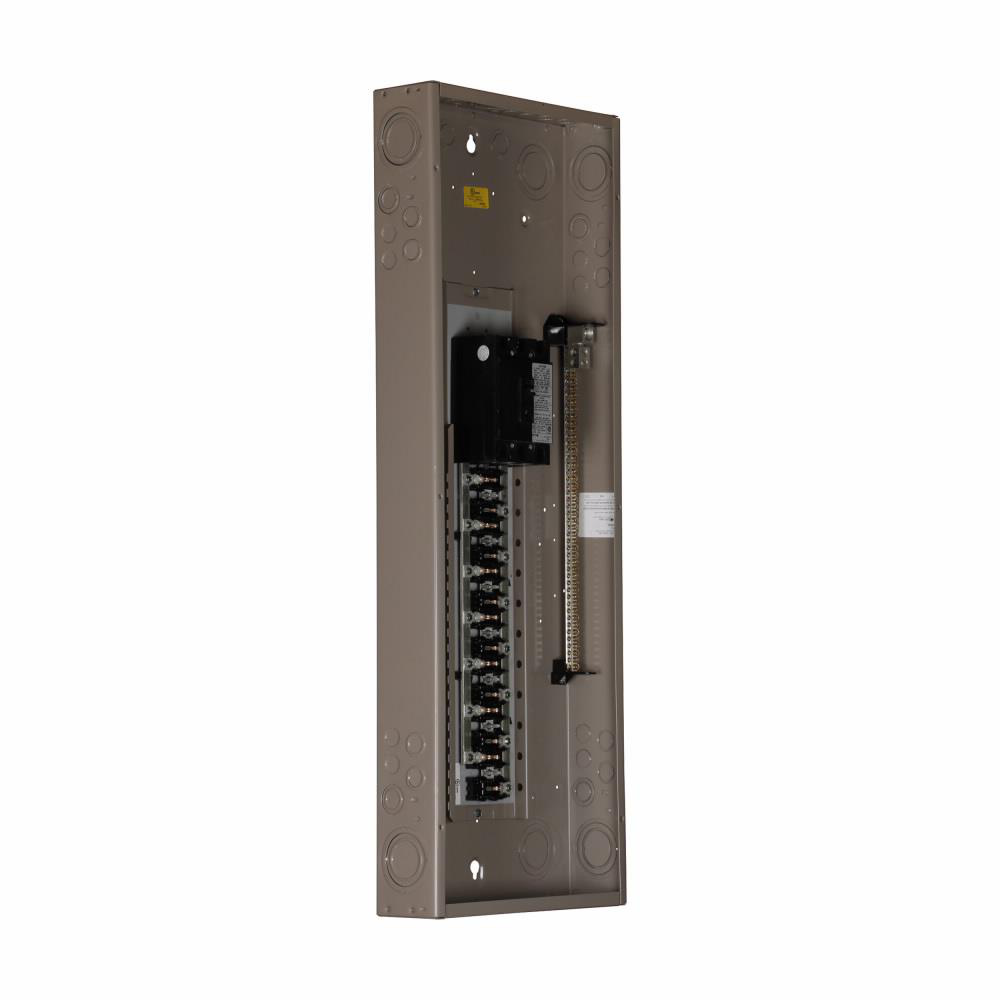

Eaton CH NEMA 1 Main Breaker Loadcenters 225 A 120/240 VAC, 120/208Y VAC 42 Space
Mfg #:
CH42B3225L
BOR #:
1775226
| Brand | Eaton |
| Interrupting Rating | 10 kAIC |
| Number of Spaces | 42 Space |
| Amperage | 225 A |
| Series | CH |
| Depth | 39 in |
| NEMA Rating | NEMA 1 |
| Height | 3.88 in |
| Number of Phases | 3 Phase |
| Wire Size | 2/0 AWG - 300 kcmil |
| Voltage | 120/240 VAC, 120/208Y VAC |
| Bus Material | Copper |
| Cover - Catalog Number (Combination) | CH8LF |
| Box Number | L |
| Enclosure Type | N1 Enclosure |
| Cover - Catalog Number (Surface) | CH8LS |
| Number of Circuits | 42 Circuit |
| Cover Type | Combination/Surface (Not Included) |
