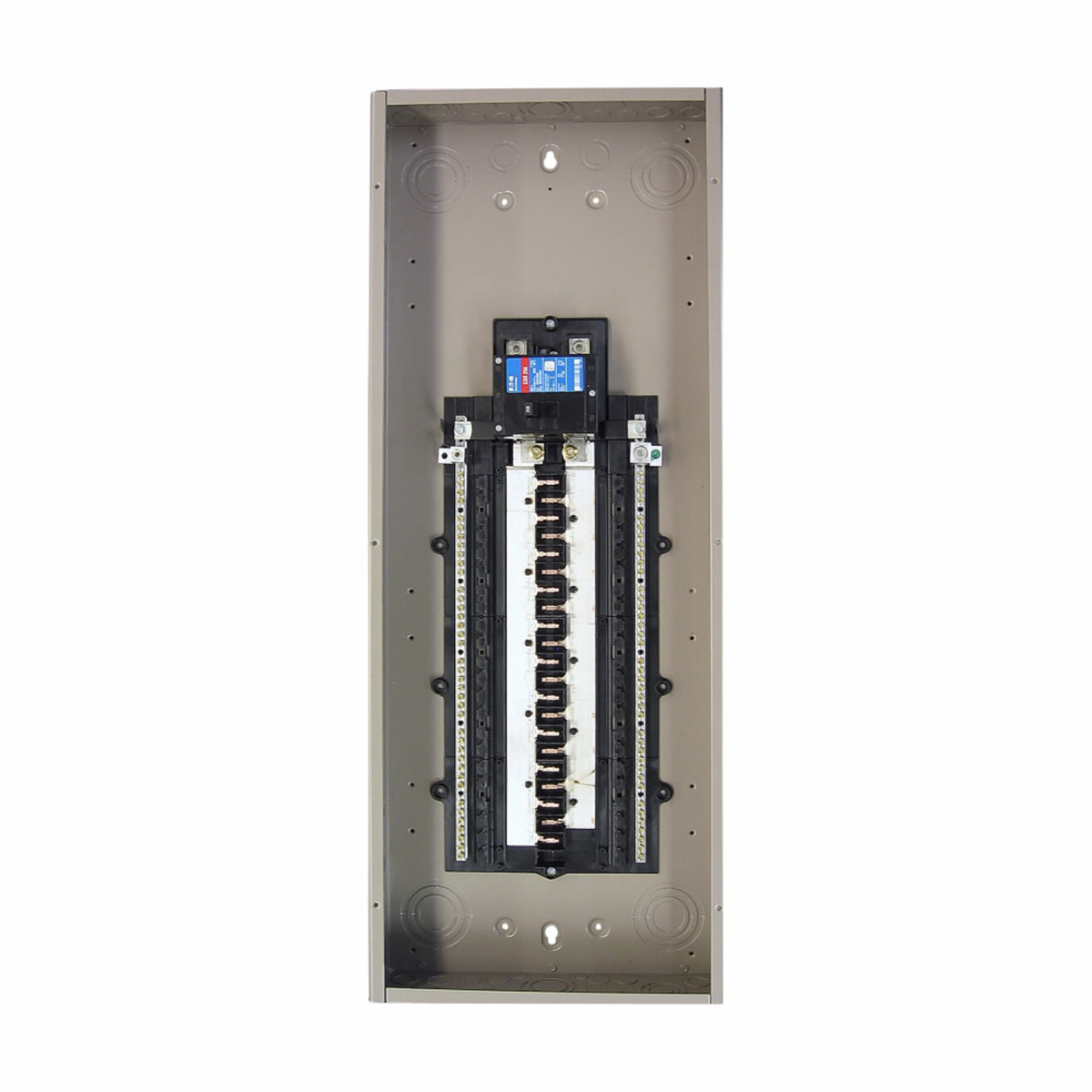

Eaton CH NEMA 1 Main Breaker Loadcenters 200 A 120/240 V 42 Space
Mfg #:
CHP42B200X7
BOR #:
3424910
| Brand | Eaton |
| Interrupting Rating | 25 kAIC |
| Number of Spaces | 42 Space |
| Amperage | 200 A |
| Series | CH |
| Depth | 37 in |
| NEMA Rating | NEMA 1 |
| Height | 3.88 in |
| Number of Phases | 1 Phase |
| Wire Size | 2 AWG - 300 kcmil |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Cover - Catalog Number (Combination) | CHPX7BF |
| Box Number | X7 |
| Enclosure Type | N1 Enclosure |
| Cover - Catalog Number (Surface) | CHPX7BS |
| Number of Circuits | 84 Circuit |
| Cover Type | Combination/Surface (Not Included) |
