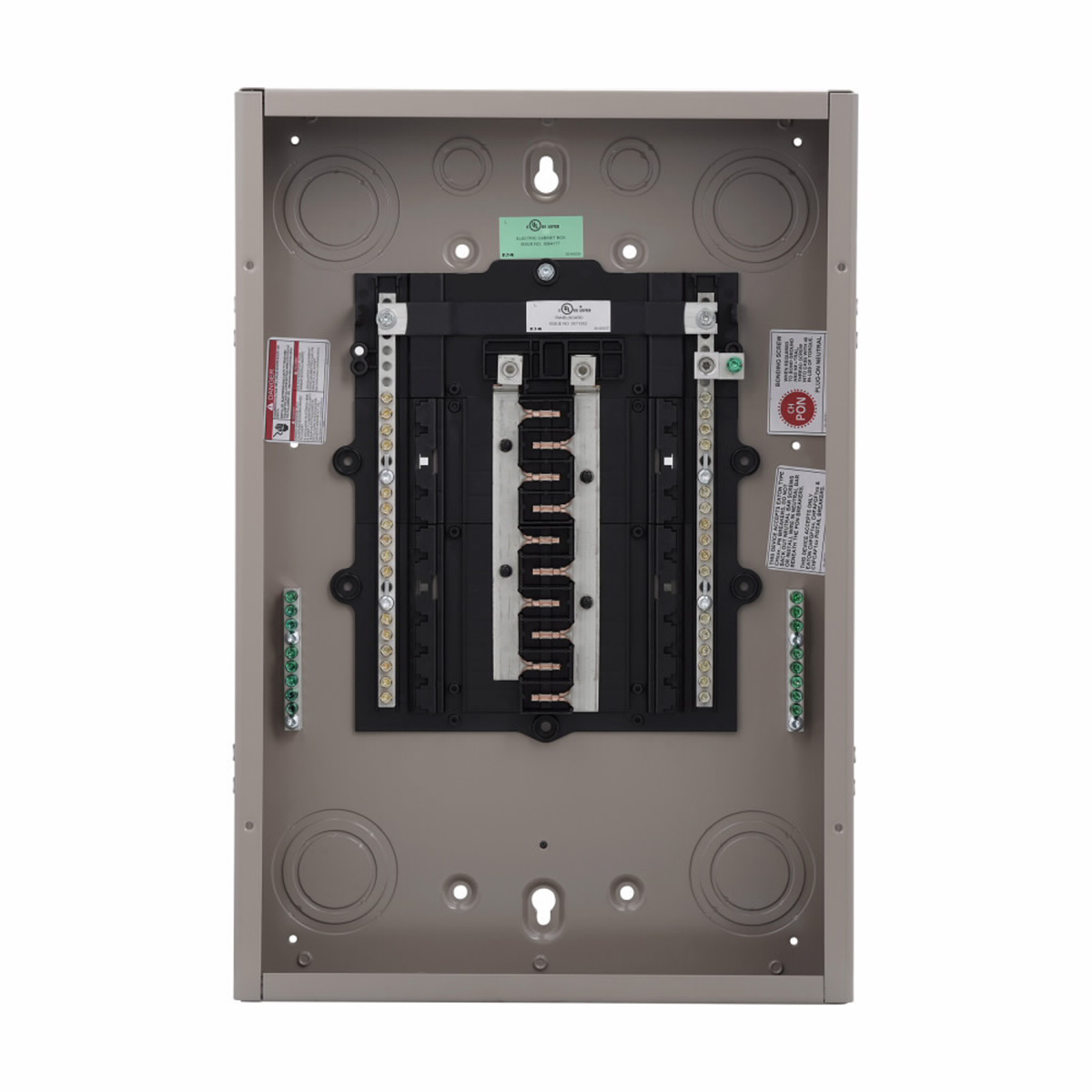

Eaton CH NEMA 1 Main Breaker Loadcenters 125 A 120/240 V 22 Space
Mfg #:
CHP22B125X2
BOR #:
3431933
| Brand | Eaton |
| Interrupting Rating | 10 kAIC |
| Number of Spaces | 22 Space |
| Amperage | 125 A |
| Series | CH |
| Depth | 21 in |
| NEMA Rating | NEMA 1 |
| Height | 3.88 in |
| Number of Phases | 1 Phase |
| Wire Size | 6 - 1/0 AWG |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Cover - Catalog Number (Combination) | CHPX2AF |
| Box Number | X2 |
| Cover - Catalog Number (Surface) | CHPX2AS |
| Number of Circuits | 44 Circuit |
| Cover Type | Combination/Surface (Not Included) |
