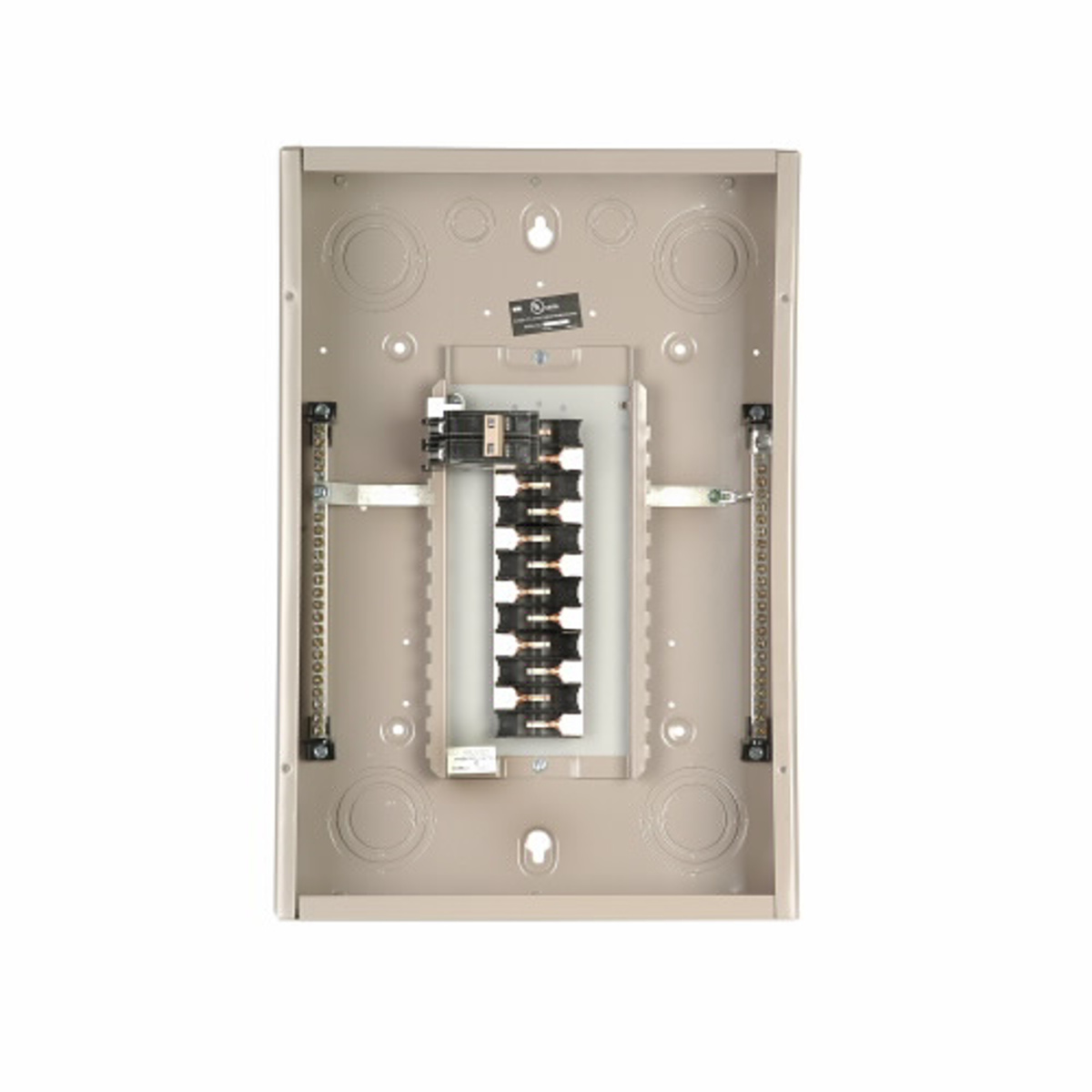

Eaton CH NEMA 1 Main Breaker Loadcenters 100 A 120/240 V 22 Space
This product has been discontinued.
Mfg #:
CH22B100C
BOR #:
1775330
| Brand | Eaton |
| Interrupting Rating | 10 kAIC |
| Number of Spaces | 22 Space |
| Amperage | 100 A |
| Series | CH |
| NEMA Rating | NEMA 1 |
| Height | 3.88 in |
| Number of Phases | 1 Phase |
| Wire Size | 6 - 1/0 AWG |
| Voltage | 120/240 V |
| Bus Material | Copper |
| Cover - Catalog Number (Combination) | CH8CF |
| Box Number | C |
| Enclosure Type | N1 Enclosure |
| Cover - Catalog Number (Surface) | CH8CS |
| Number of Circuits | 22 Circuit |
| Cover Type | Combination/Surface (Not Included) |
| Eaton Specification Sheet | Specification Sheet |
|
