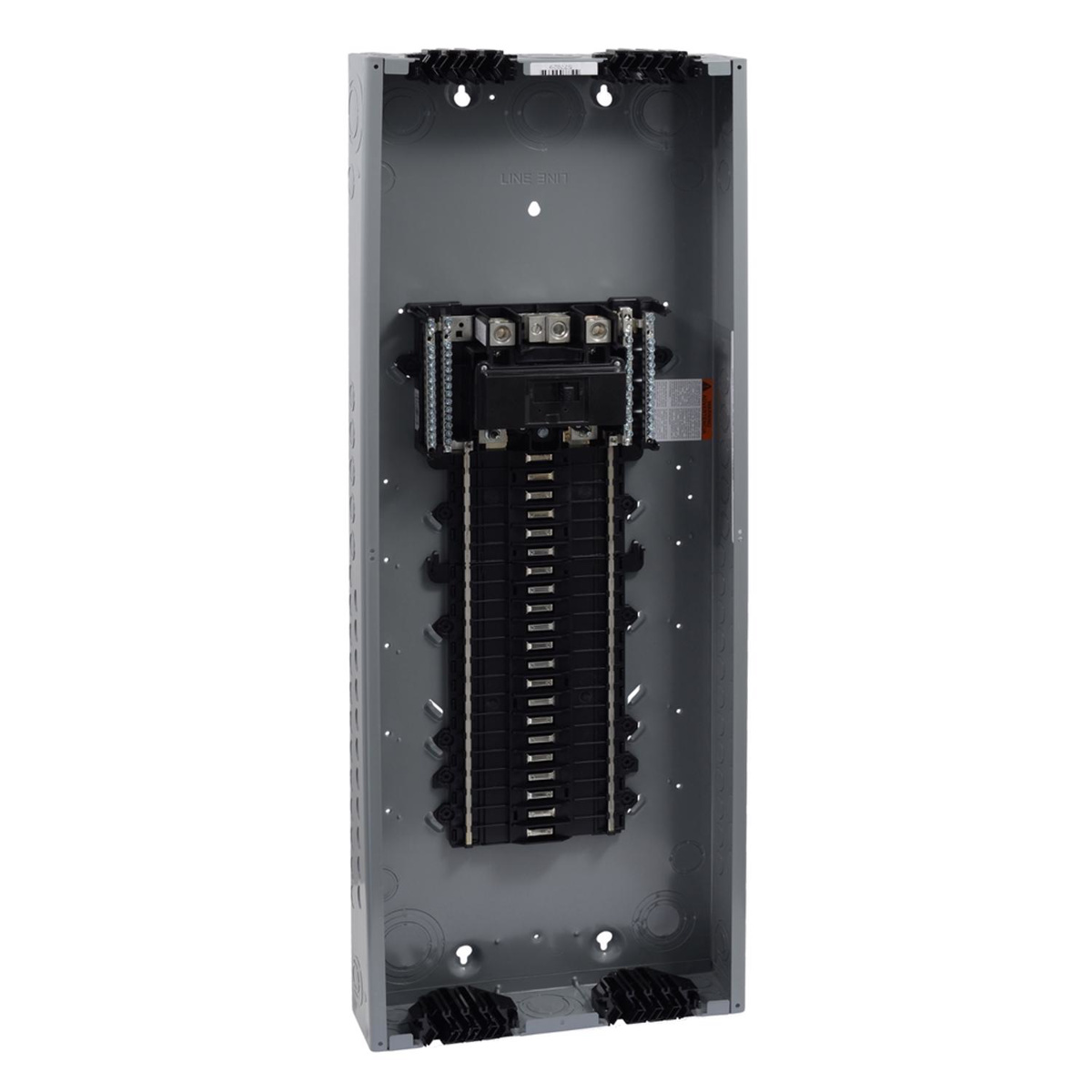

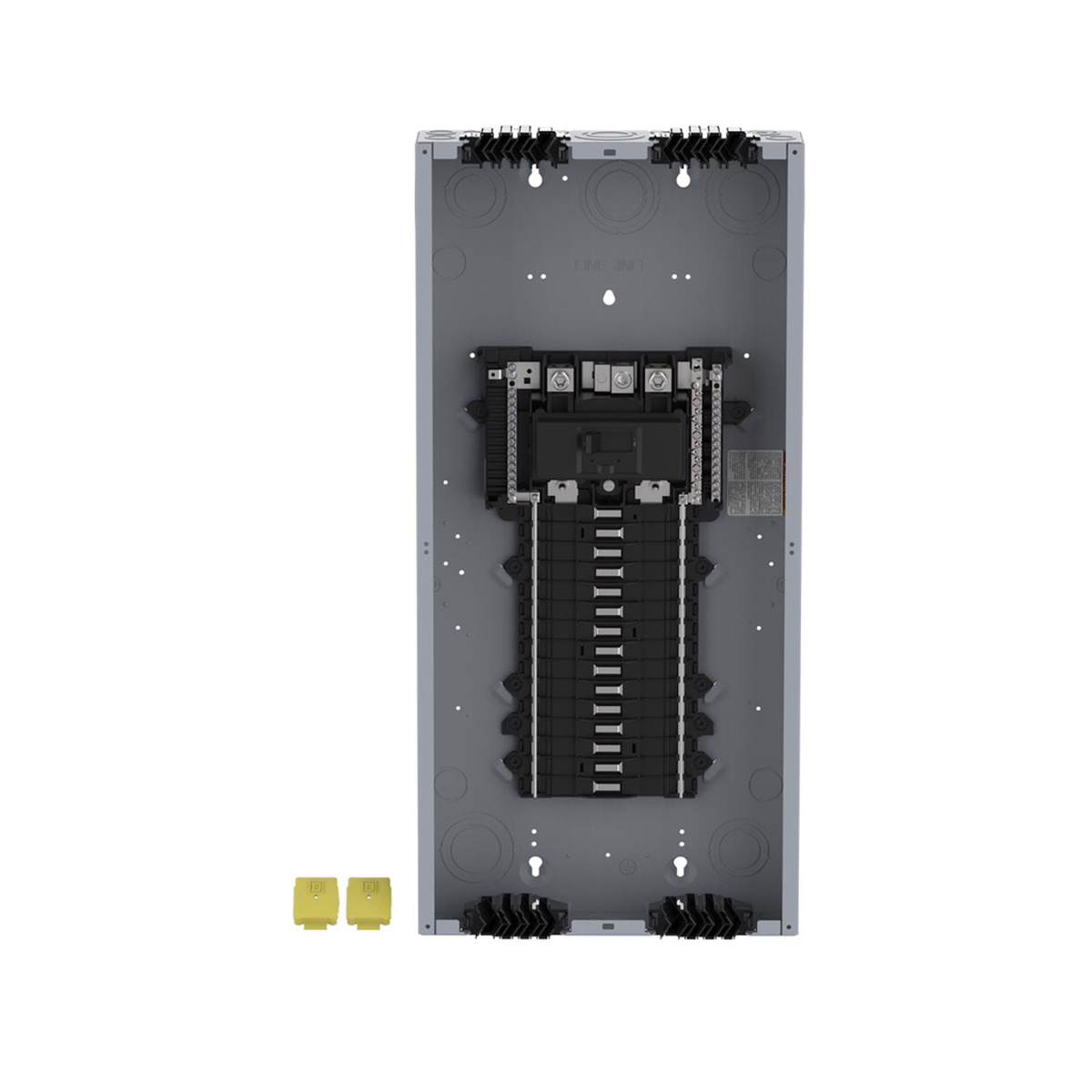

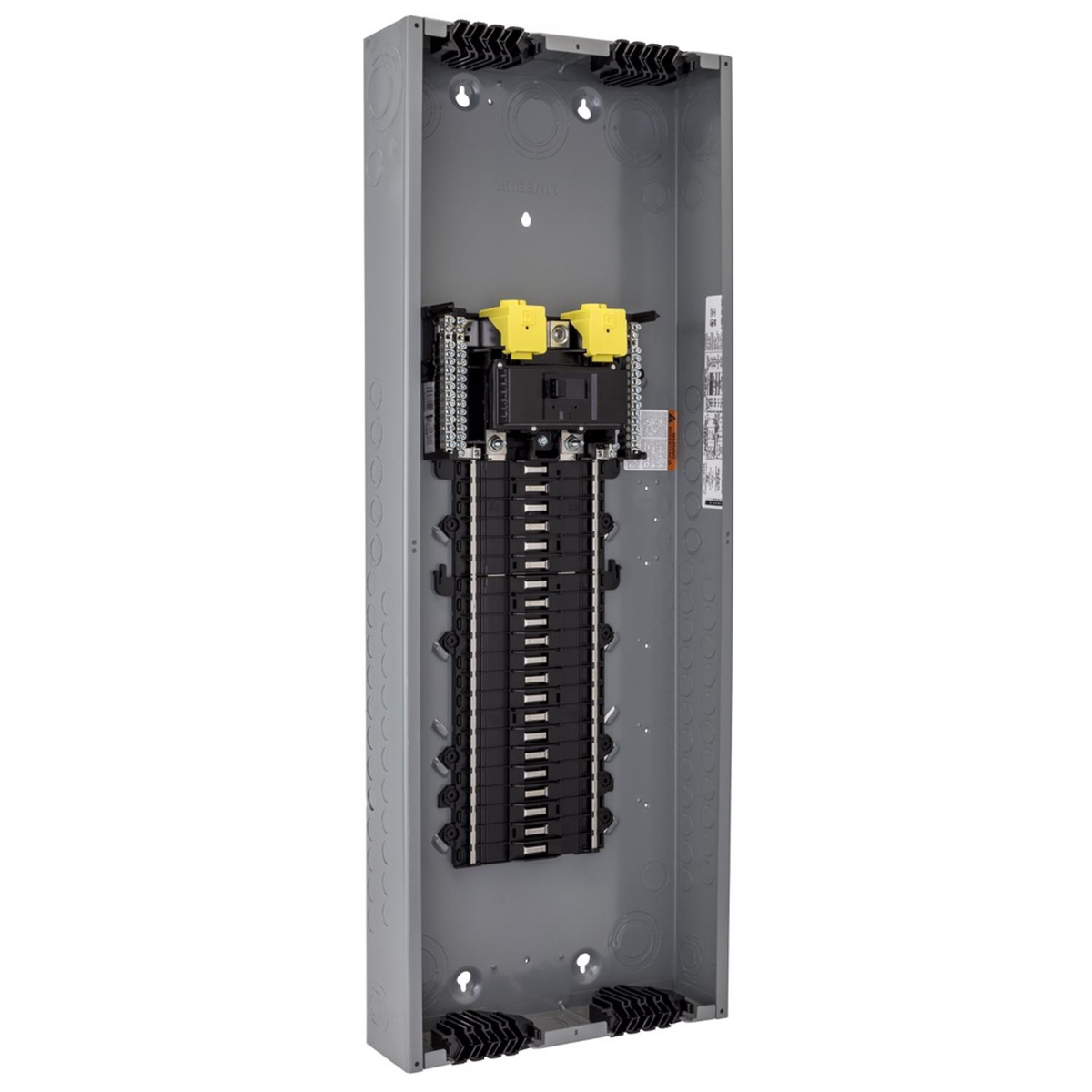

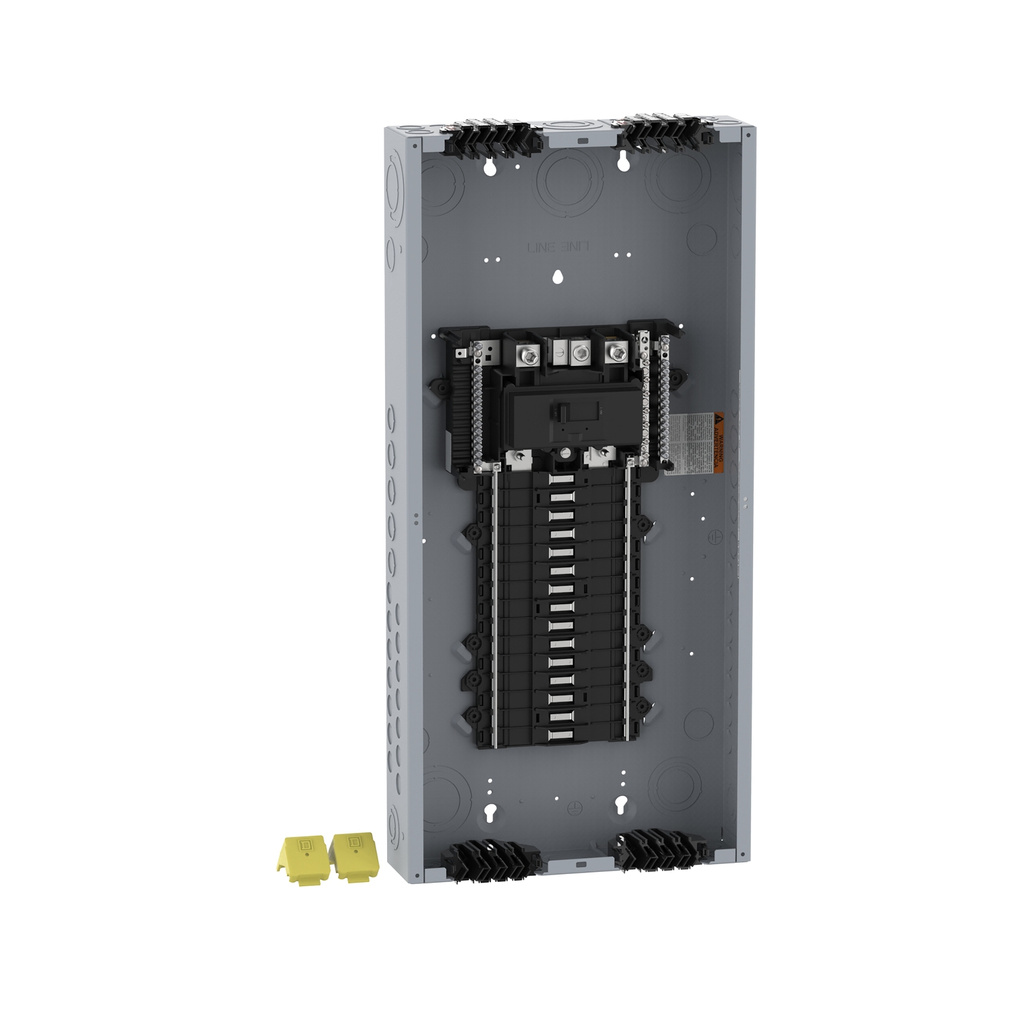

Square D QO™ Qwik-Grip™ N1 Convertible Main Breaker Loadcenters 200 A 120/240 V 30
Mfg #:
QO130M200PQ
BOR #:
3349072
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 1 phase |
| Wire Size | 4/0 AWG - 250 kcmil |
| Voltage | 120/240 V |
| Enclosure Type | N1 Enclosure |
| Bus Material | Aluminum |
| Box Number | 9Q |
| Cover - Catalog Number (Flush) | QOC30UF |
| Cover - Catalog Number (Surface) | QOC30US |
| Number of Circuits | 40 Circuit |
| Height | 29.84 in |
| Cover Type | Flush/Surface (Not Included) |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 30 |
| Amperage | 200 A |
| Series | QO™ |
| NEMA Rating | NEMA 1 |
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Homeline Standard Load Centers, Certificate, UL - 20140502-E6294 (pdf) | Compliance |
|
| Square D Plug-on Neutral/Qwik-Grip Load Centers Brochure - Plug-on+Neutral+Load+Centers+with+Qwik-Grip+Wire+Management+System (pdf) | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf) | Brochure |
|
