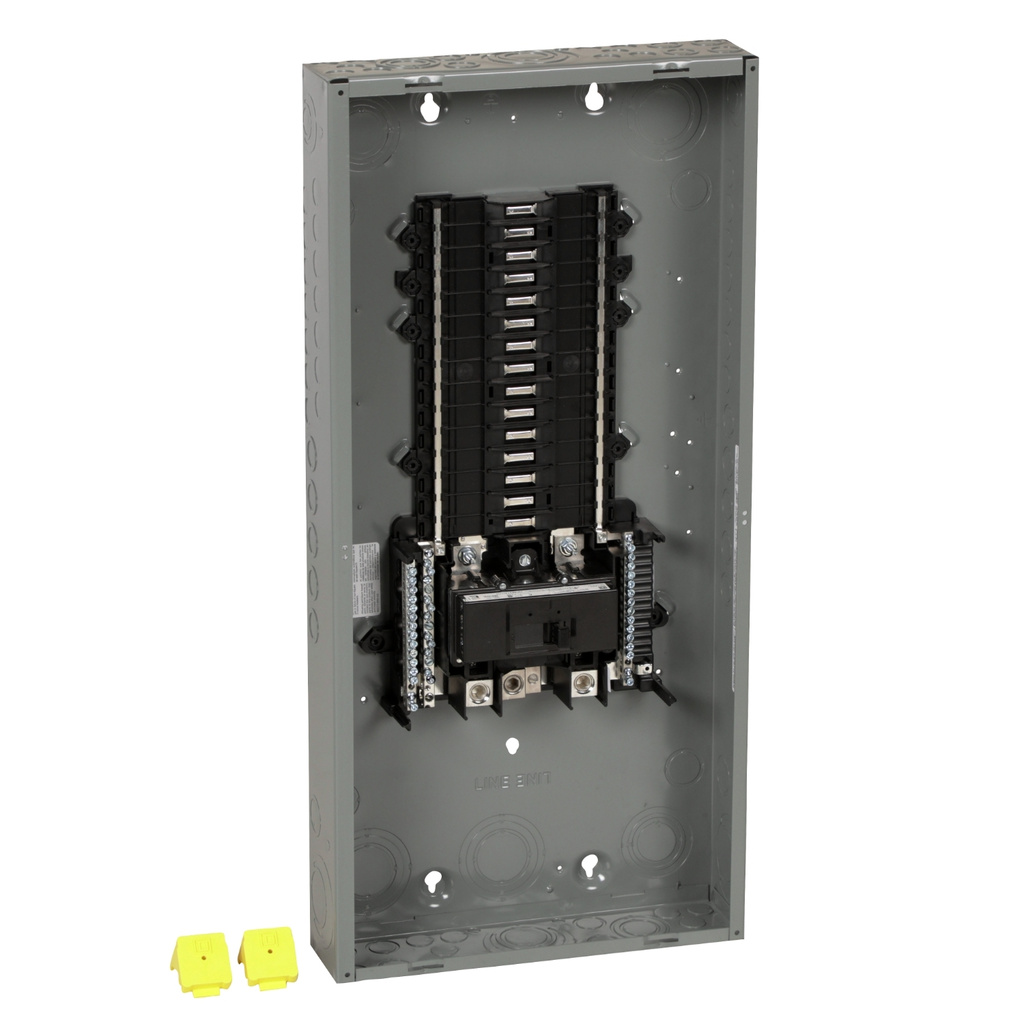

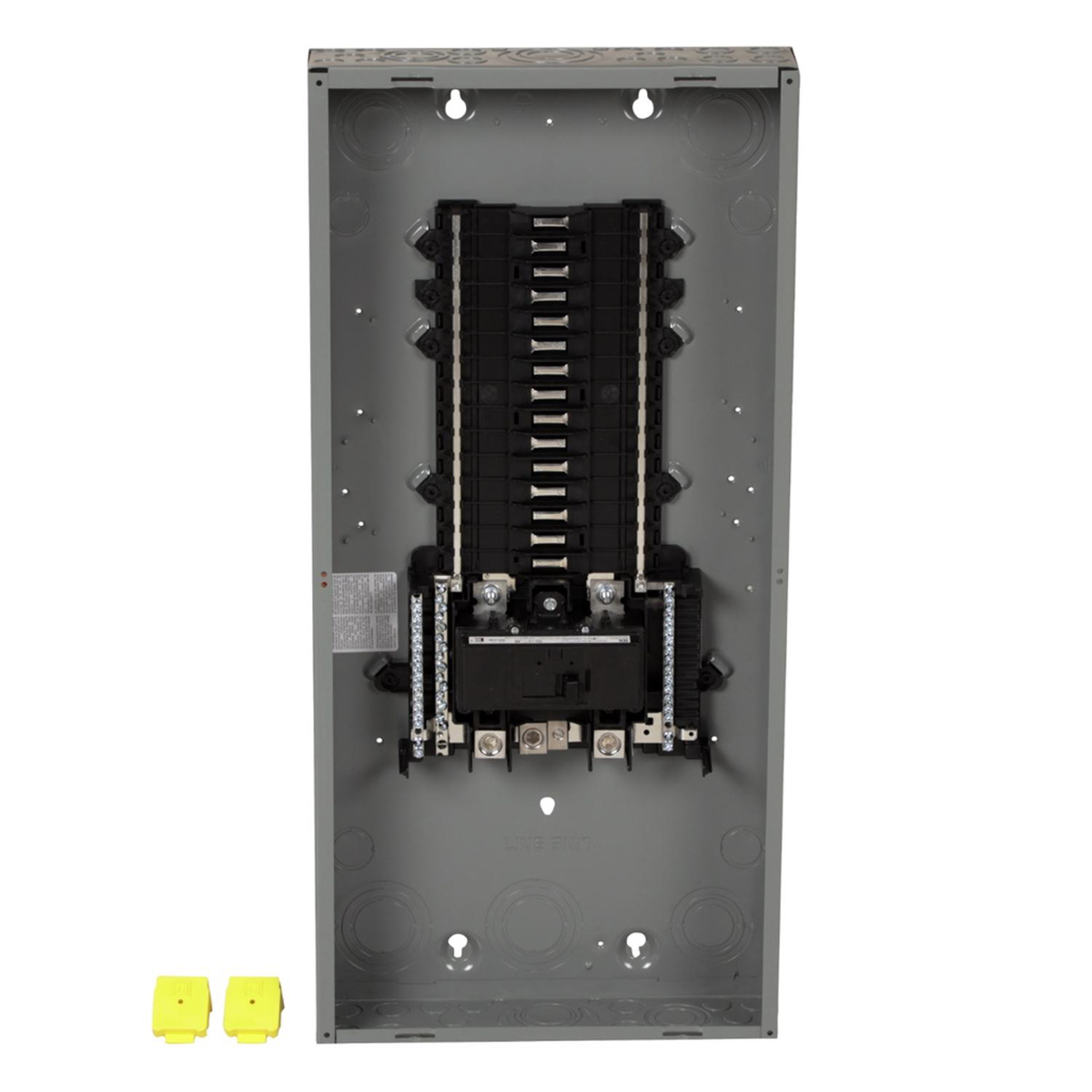

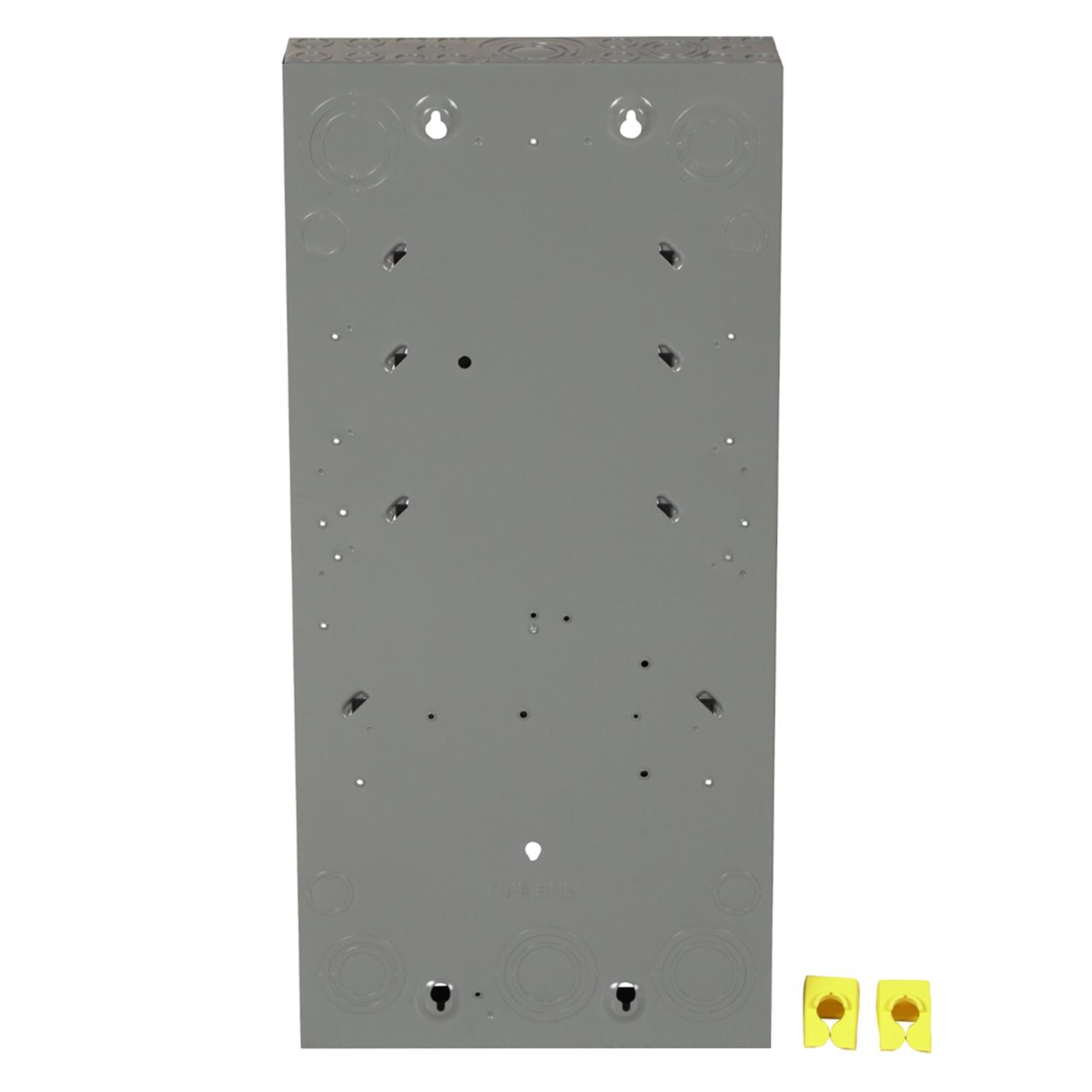

Square D QO™ N1 Convertible Main Breaker Loadcenters 150 A 120/240 V 30

Mfg #: QO130M150P

BOR #: 3248693

View all 65 in product family

Looking for prices?

Create an Account

Product can be ordered only in multiples of

Brand	Square D
Number of Phases	1 phase 3-wire
Wire Size	4 AWG - 250 kcmil
Voltage	120/240 V
Enclosure Type	N1 Enclosure
Bus Material	Copper
Box Number	9
Cover - Catalog Number (Flush)	QOC30UF
Cover - Catalog Number (Surface)	QOC30US
Number of Circuits	40 Circuit
Height	29.84 in
Cover Type	order separately
Interrupting Rating	22 kAIC
Number of Spaces	30
Amperage	150 A
Series	QO™
NEMA Rating	NEMA 1

A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)	Brochure
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)	Catalog
Square D QO Plug-on Neutral Brochure - Square+D+QO+Plug-on+Neutral+-+Espanol (pdf)	Brochure
Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)	Brochure
QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)	Installation and Instruction Manuals
Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)	Brochure
QO Standard Load Centers, Certificate, UL - E6294-20121201-CertificateofCompliance+QO130_QO142+PON (pdf)	Compliance
Square D Plug-on Neutral/Qwik-Grip Load Centers Brochure - Plug-on+Neutral+Load+Centers+with+Qwik-Grip+Wire+Management+System (pdf)	Brochure
Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)	Brochure
Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)	Catalog
