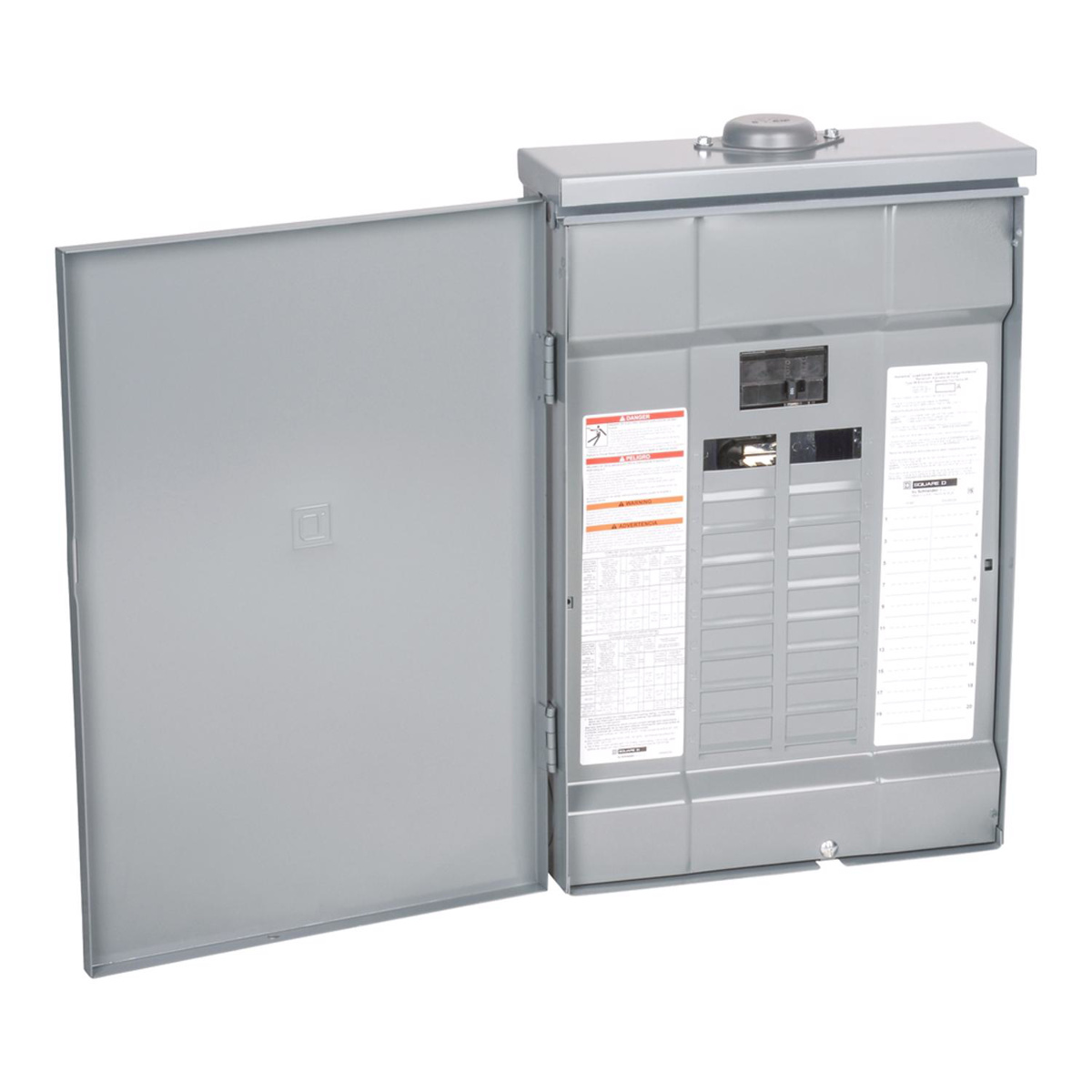

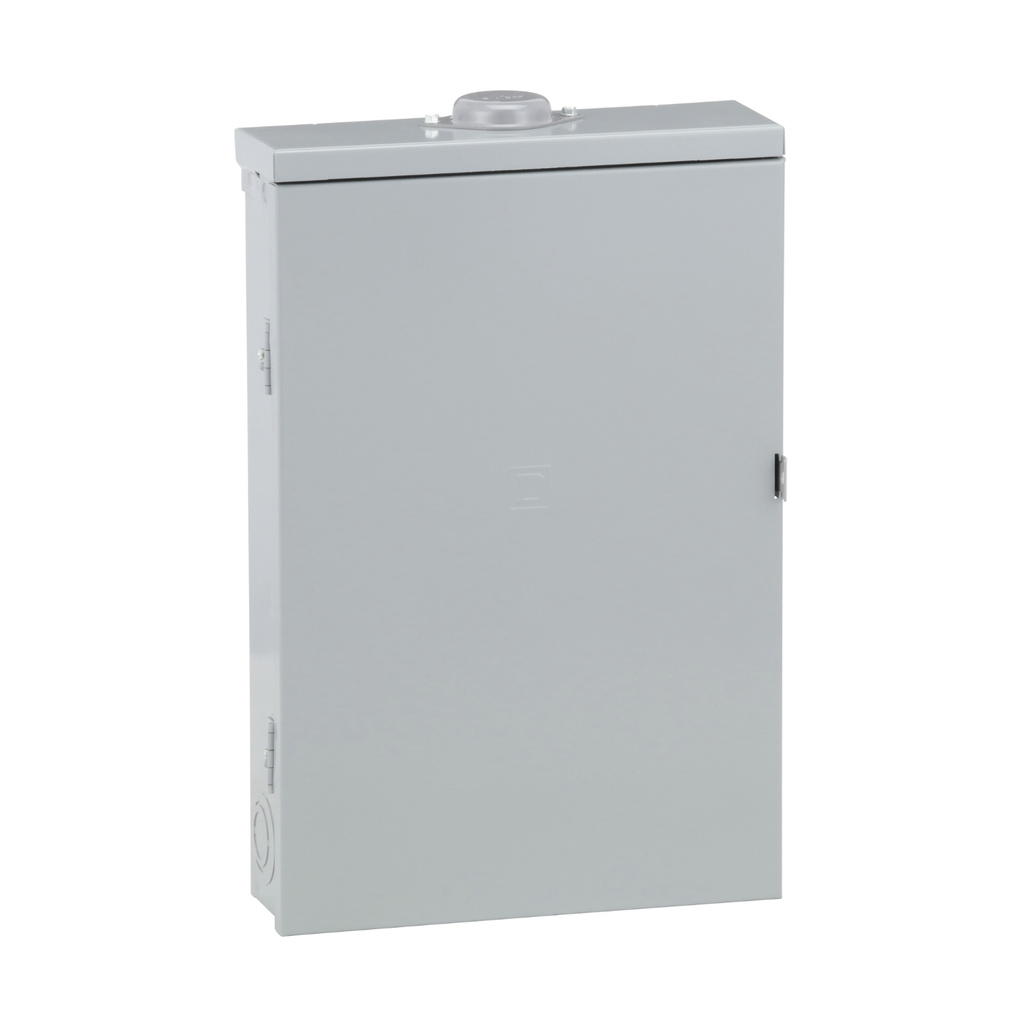

Square D Homeline™ N3R Convertible Main Breaker Loadcenters 100 A 120/240 V 20
Related Items
Select Options
| Brand | Square D |
| Number of Phases | 1 phase |
| Wire Size | 6 - 2/0 AWG |
| Voltage | 120/240 V |
| Enclosure Type | N3R Enclosure |
| Bus Material | Aluminum |
| Includes | Cover |
| Box Number | 4R |
| Number of Circuits | 40 Circuit |
| Cover Type | surface cover |
| Interrupting Rating | 22 kAIC |
| Number of Spaces | 20 |
| Amperage | 100 A |
| Series | Homeline™ |
| NEMA Rating | NEMA 3R |
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Homeline Standard Load Centers, Certificate, UL - 071002-E6294A (pdf) | Compliance |
|
| QO and Homeline Outdoor Load Centers Installation Instructions - 40271-887-03 (pdf) | Installation and Instruction Manuals |
|
| QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf) | Installation and Instruction Manuals |
|
| Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf) | Catalog |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
| QO and Homeline Outdoor Load Centers - Installation Instructions - 40281-607-02 (pdf) | Installation and Instruction Manuals |
|
| Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf) | Brochure |
|
| NVE74316 PKSB1LA Service Barrier Installation Instructions - JYT70330 (pdf) | Installation and Instruction Manuals |
|
