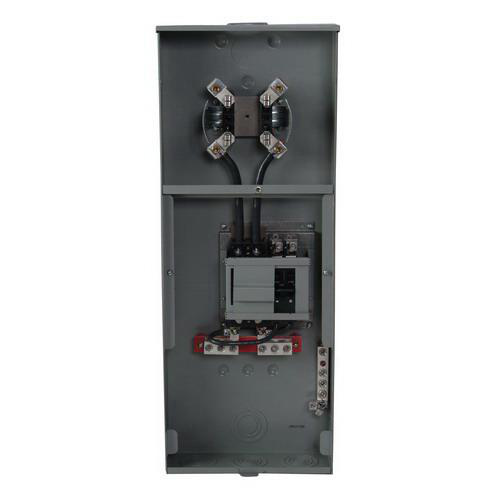

Durham SB Series 240 V 2PDT 3-wire N3R Interlocking Breakers. 100/100 A Main/Aux with Meter Socket 100/100 A 120/240 VAC NEMA 3R
Mfg #:
SB114DT100B
BOR #:
2866858
SB Series Generator Transfer Switch With Meter Socket, Current Rating: Main: 100 A, Auxiliary: 100 A (Breaker), Cable Entry: (SM) Hub Opening, Dimension: 12 IN Width X 4-3/8 IN Depth X 30-3/8 IN Height, Enclosure: NEMA 3R Outdoor, Phase: 1-PH, Short Circu
- NEMA 3R Outdoor
| Number of Poles | 1 Pole |
| Material | Steel |
| Service Type | OH/UG |
| Number of Terminals | 4 Terminal |
| Cover Type | Ringless Style - Surface |
| Brand | Durham |
| Wire Size | (1) 8 - 2/0 AWG |
| Configuration | 100 A Main and 100 A Auxiliary |
| Includes | Sliding breaker interlock |
| Amperage | 100/100 A |
| Enclosure Type | N3R Enclosure |
| NEMA Rating | NEMA 3R |
| Voltage | 120/240 VAC |
| Number of Phases | 1 Phase |
