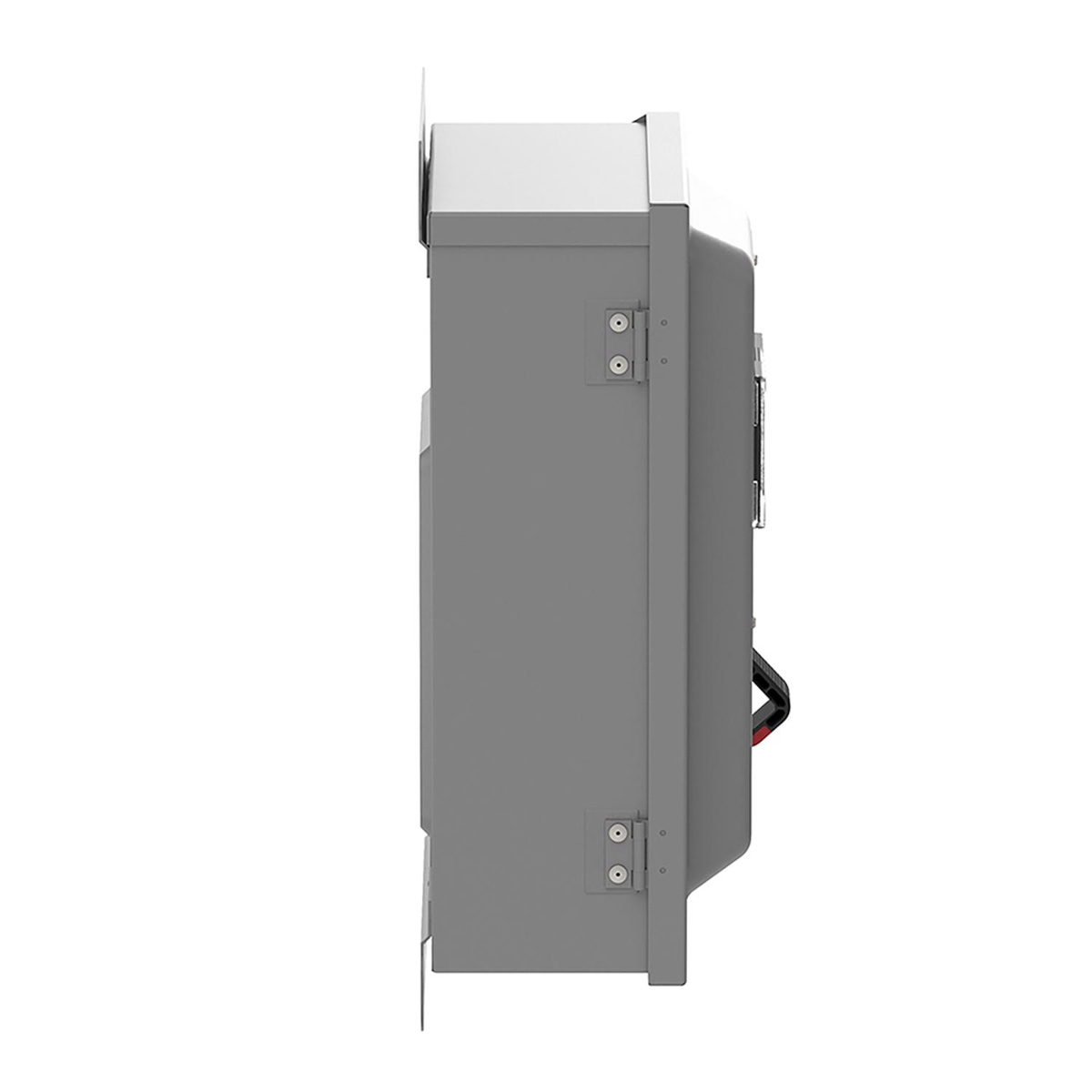

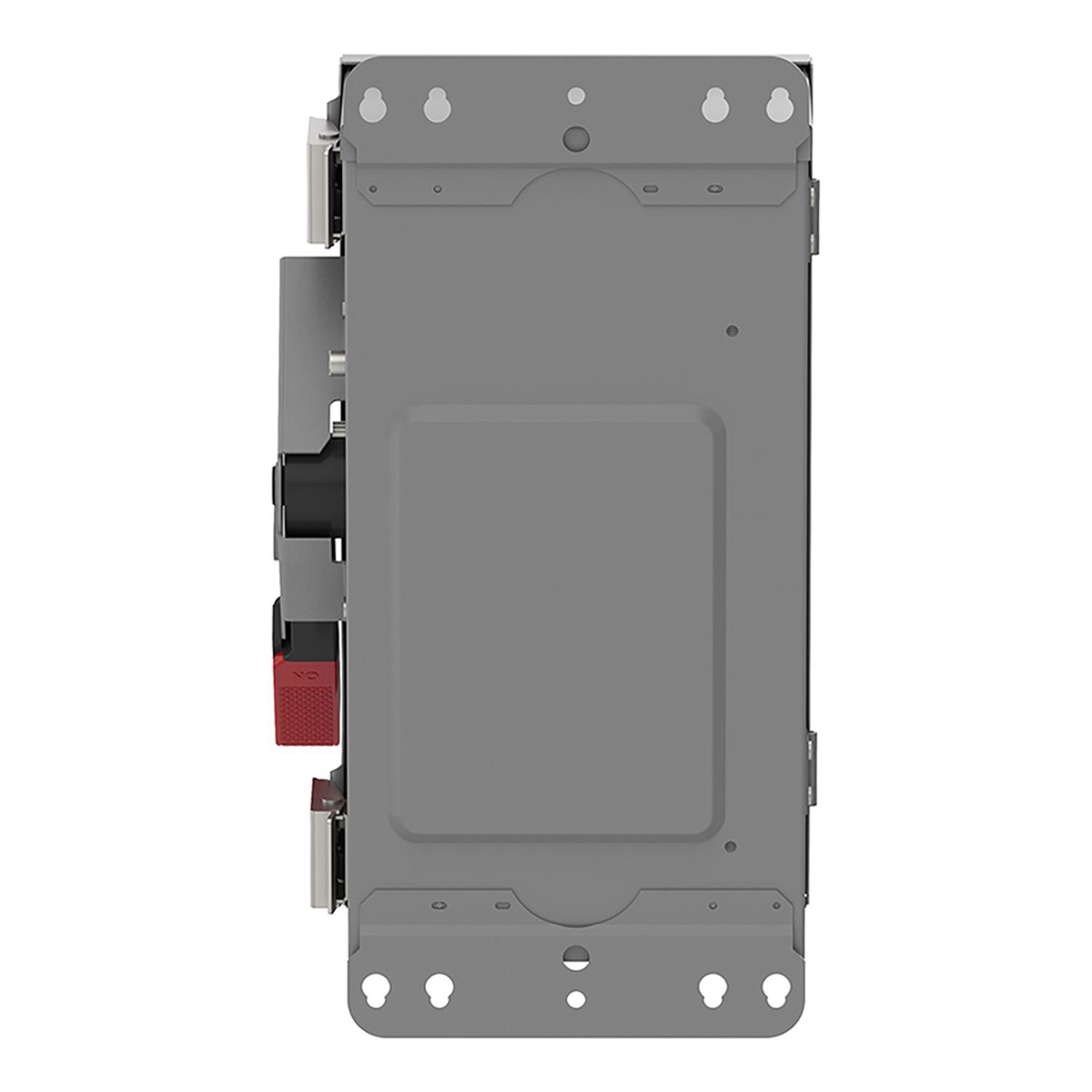

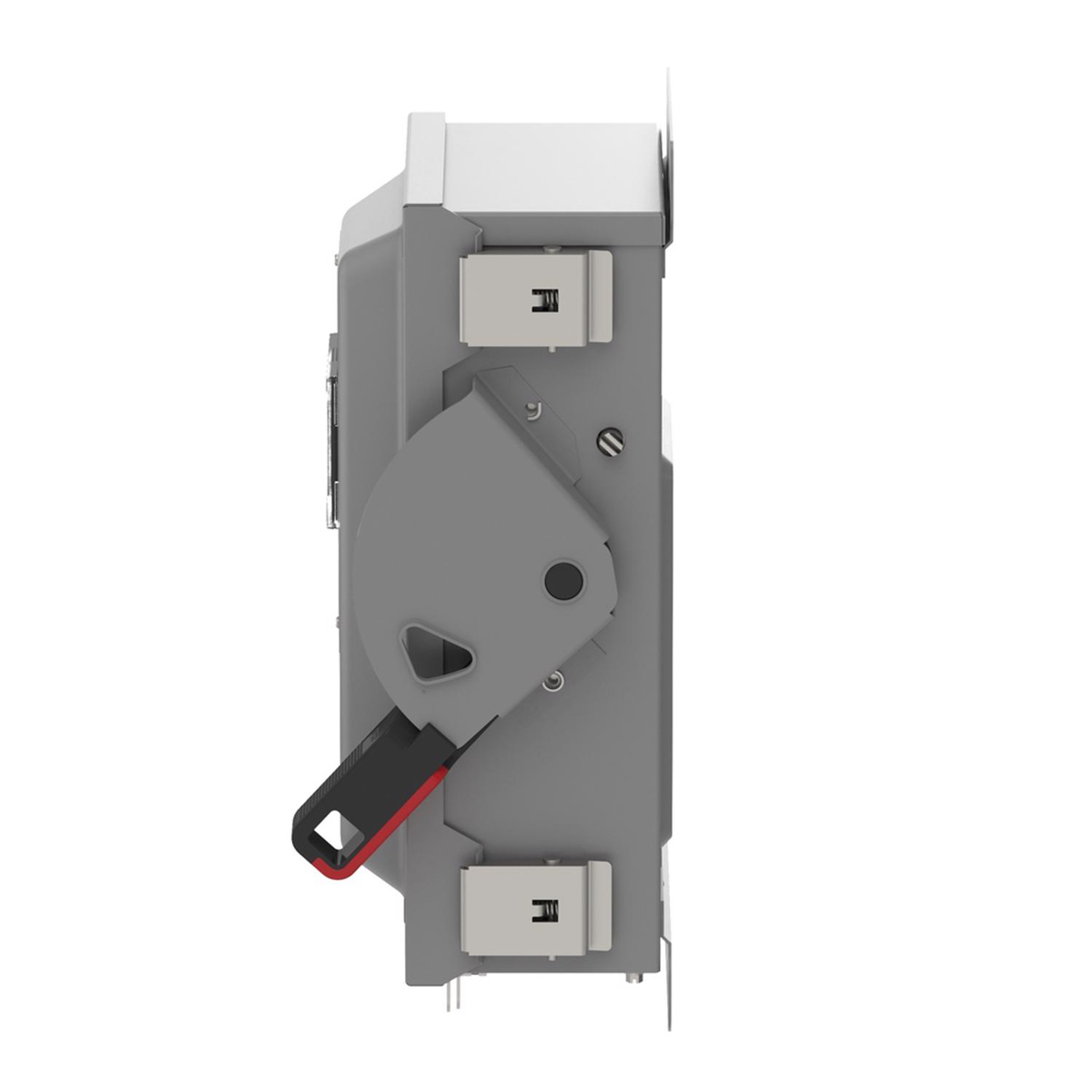

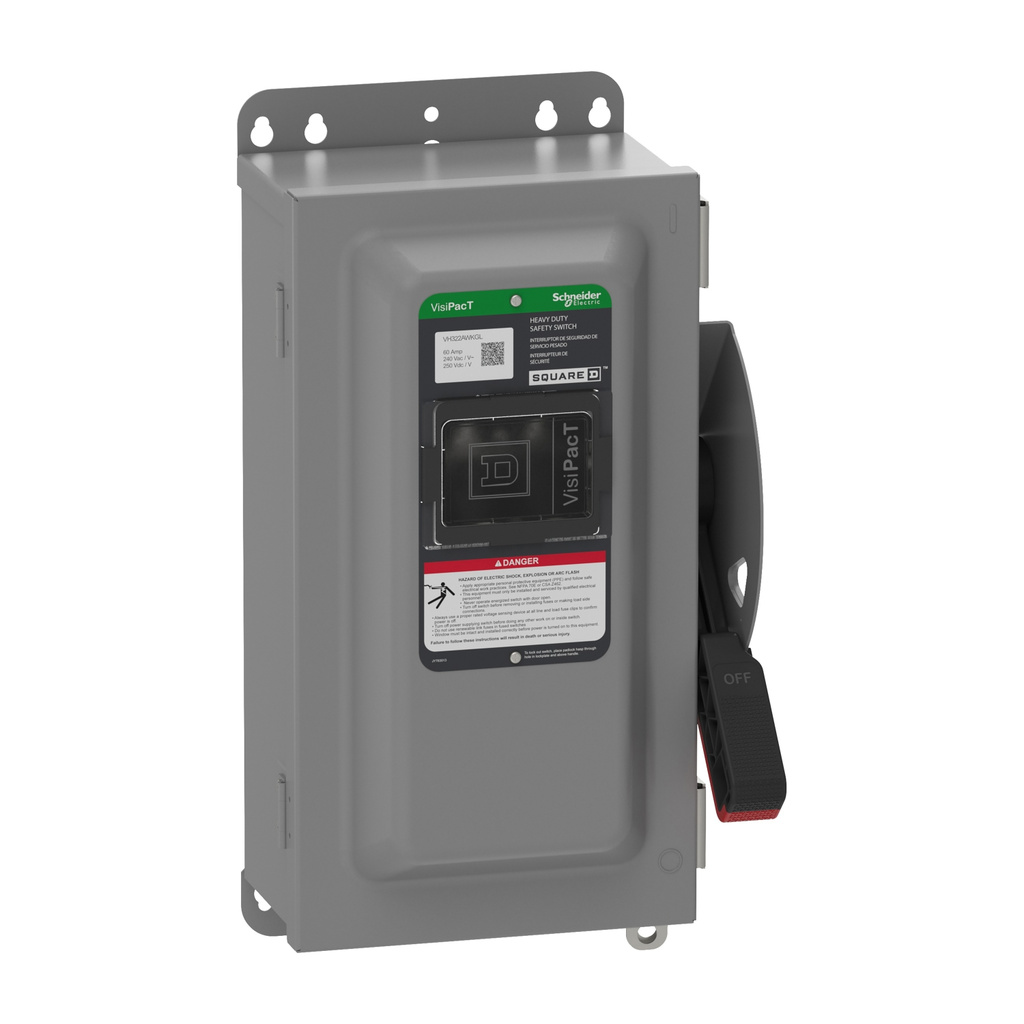

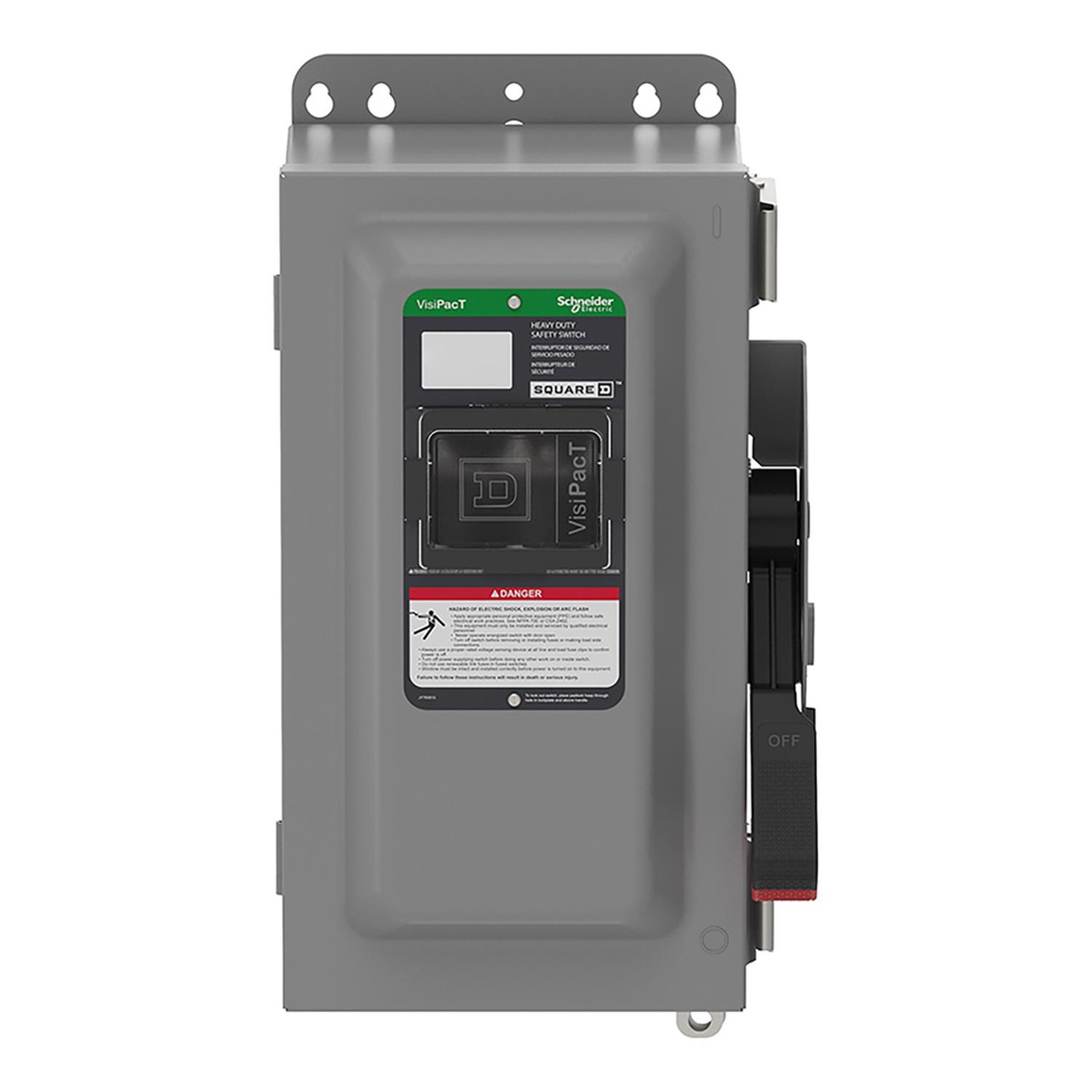

Square D Heavy Duty Three Phase Fused Disconnects 60 A NEMA 12 240 V
Mfg #:
VH322AWKGL
BOR #:
3591420
Heavy Duty Three Phase Fused Disconnects
- All heavy duty safety switches feature quick-make, quick-break operating mechanism
- Color coded indicator handle
- Dual cover interlock
- 10 kA for H, K fuses, L, 200 kA for J, R, L fuses
- Watertight hubs
- On 3P devices, use two outside poles for switching DC
- NEMA 3R/12
- Also suitable for NEMA 3R application by removing drain screw from bottom endwall
- NEMA 12 without knockouts
| Brand | Square D |
| NEMA Rating | NEMA 12 |
| Number of Phases | 3 Phase |
| Wire Size | 12 - 3 AWG |
| Voltage | 240 V |
| Number of Poles | 3 |
| Enclosure Type | N12 Enclosure |
| Disconnect Type | Fused |
| Amperage | 60 A |
| Material | Steel |
| VisiPacT Safety Switches - 998-22308345_GMA-US_SE-2667_VisiPact+Brochure+0309 (pdf) | Brochure |
|
| Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf) | Catalog |
|
| Safety Switches: Section 3 - Digest 179 (2024) - Safety-Switches-Digest-Catalog-0100CT2401-SEC-03 (pdf) | Catalog |
|
| Enclosed Safety Switches, Certificate, UL and CSA - E2875-20230131 (pdf) | Compliance |
|
