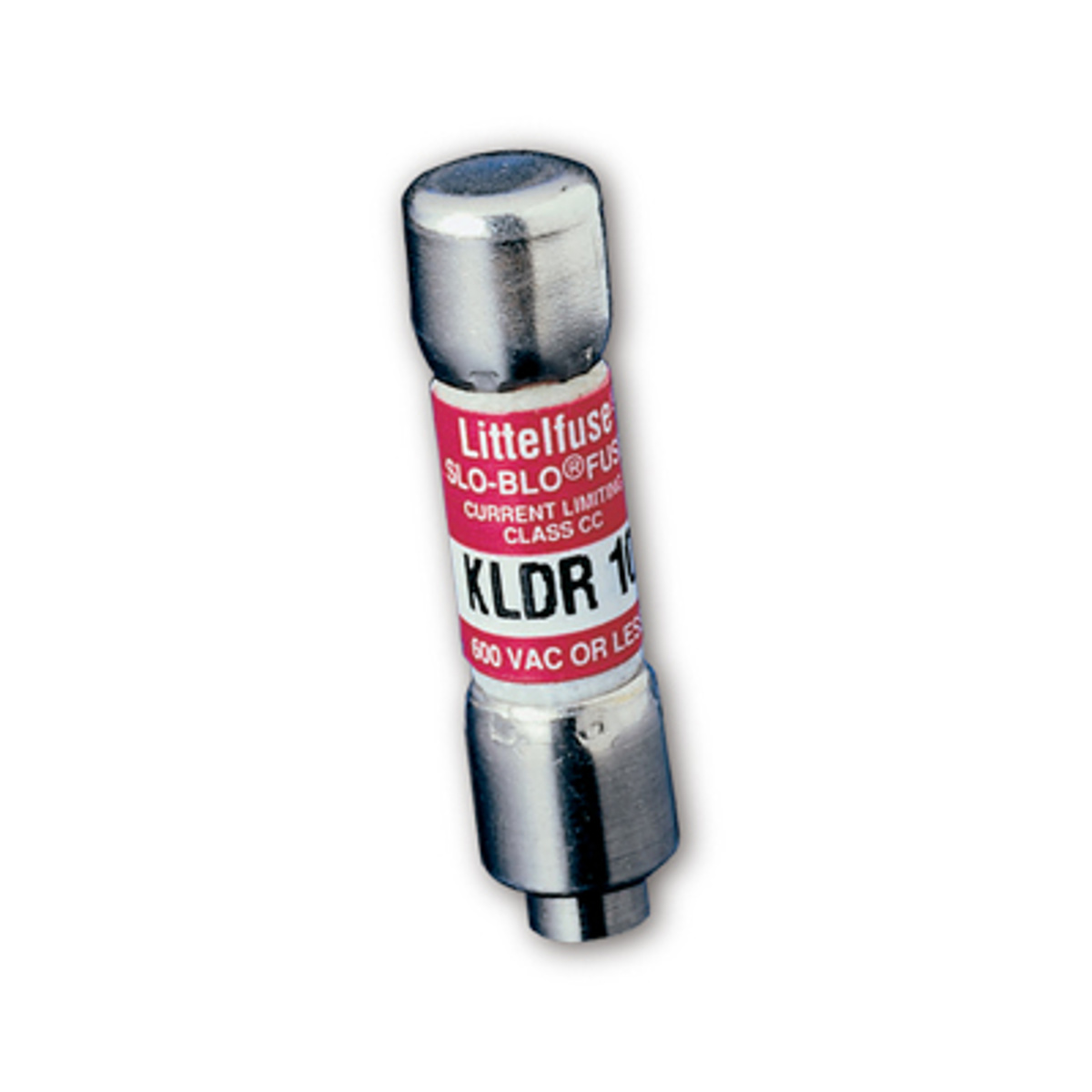

Littelfuse KLDR POWR-GARD® Series Time Delay Class CC Fuses 8 A 600 VAC/300 VDC 200/20 kA
Mfg #:
KLDR008TXP
BOR #:
2918808
Designed for the protection of control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle.
- Current limiting design often permits use of readily available, less costly equipment
- Class CC fuses provide protection for a variety of components. The KLDR series fuses are designed to withstand the high magnetizing inrush of transformers.
- Class CC fuses are the smallest 600V, 200,000 A.I.R. fuses approved for branch circuit protection
- Voltage rating: 600 VAC / 300 VDC
- Interrupting rating: 200,000 AC / 20,000 DC amperes
- Ampere Range: 1/10 - 30 amperes
- Time delay
Brand | Littelfuse |
Voltage | 600 VAC/300 VDC |
Indicator Type | Non-indicating |
Mounting Type | Clip |
Material | Melamine |
Fuse Speed | Time Delay |
Terminal Type | Ferrule |
Fuse Class | Class CC |
Interrupting Rating | 200/20 kA |
Rejecting | Rejection |
Length | 1-1/2 in |
Diameter | 13/32 in |
Amperage | 8 A |
