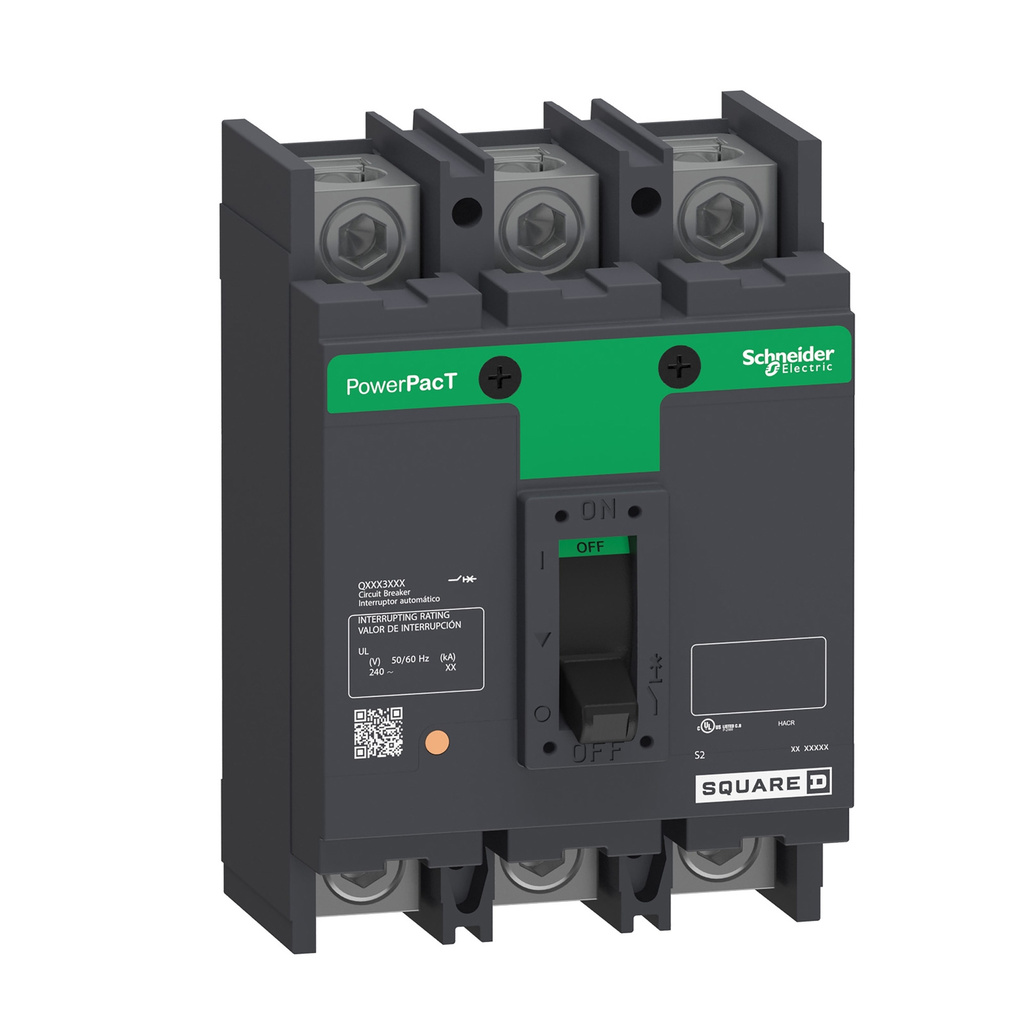

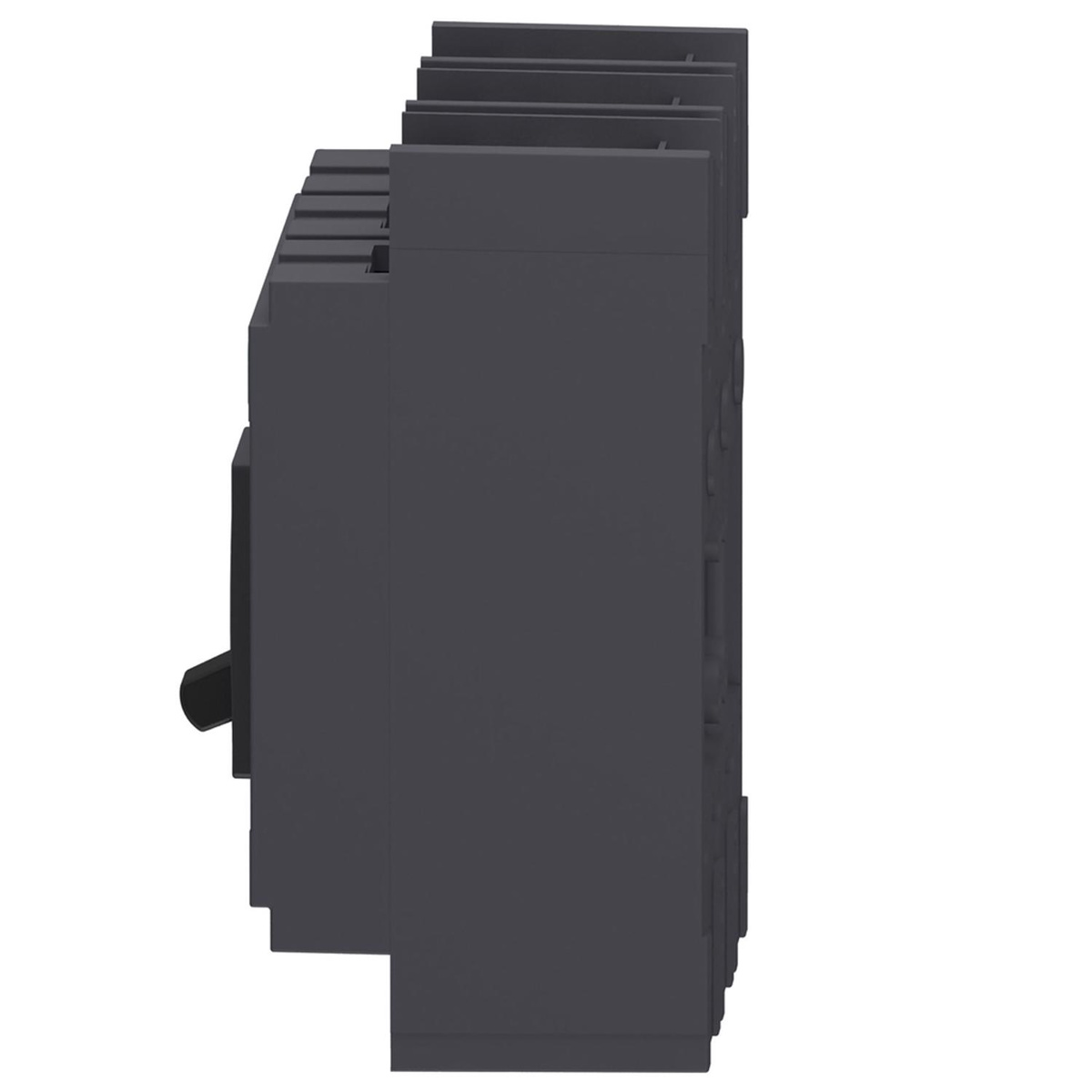

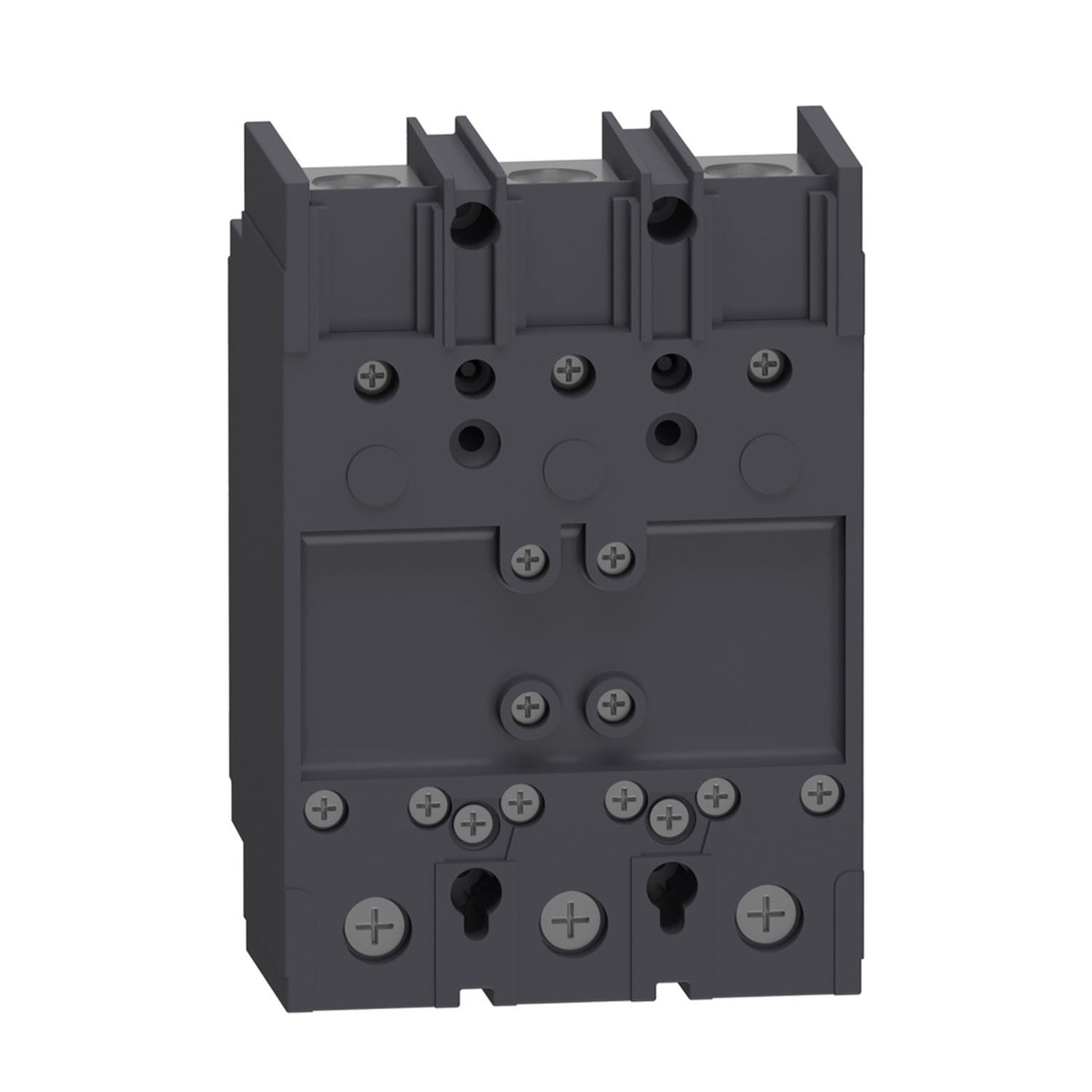

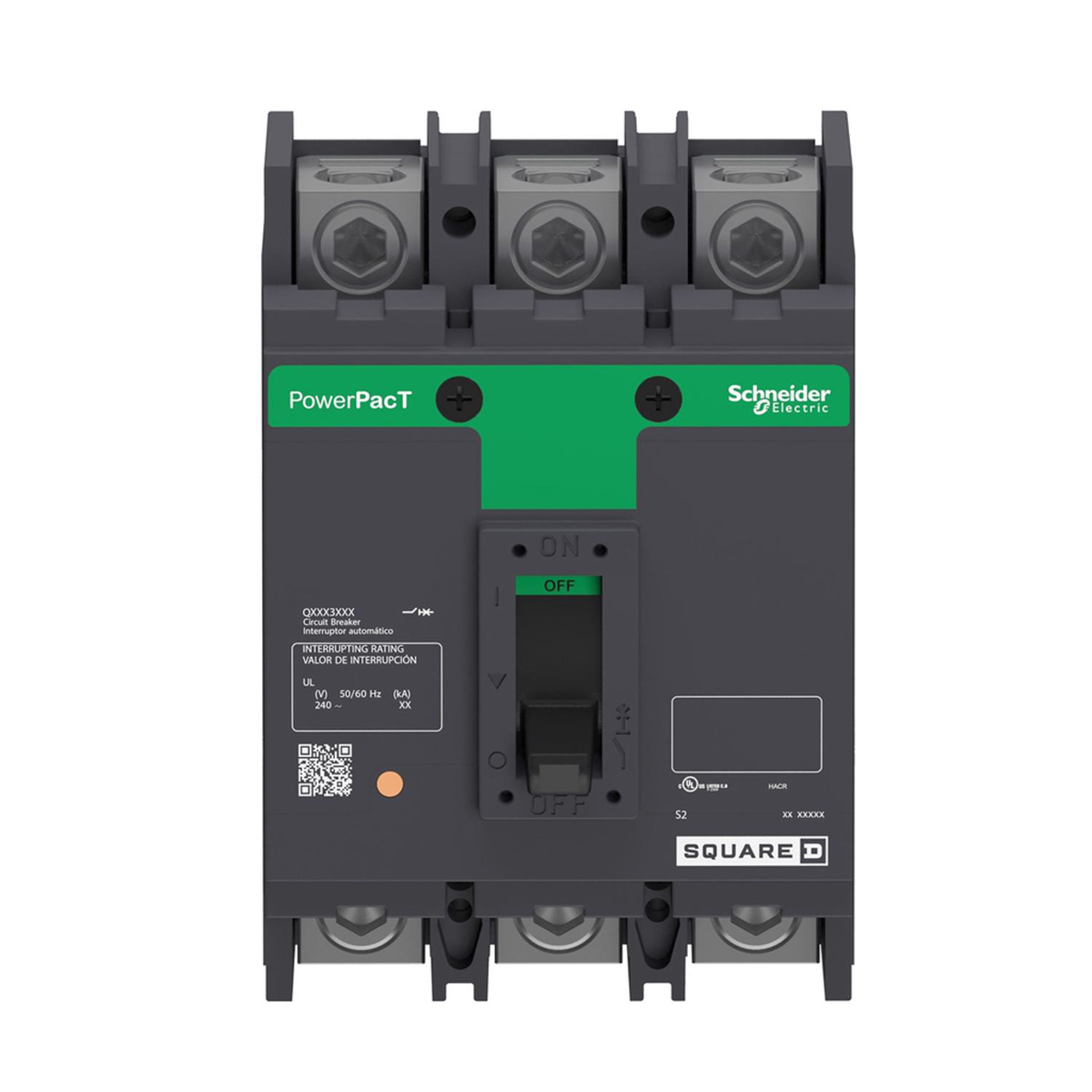

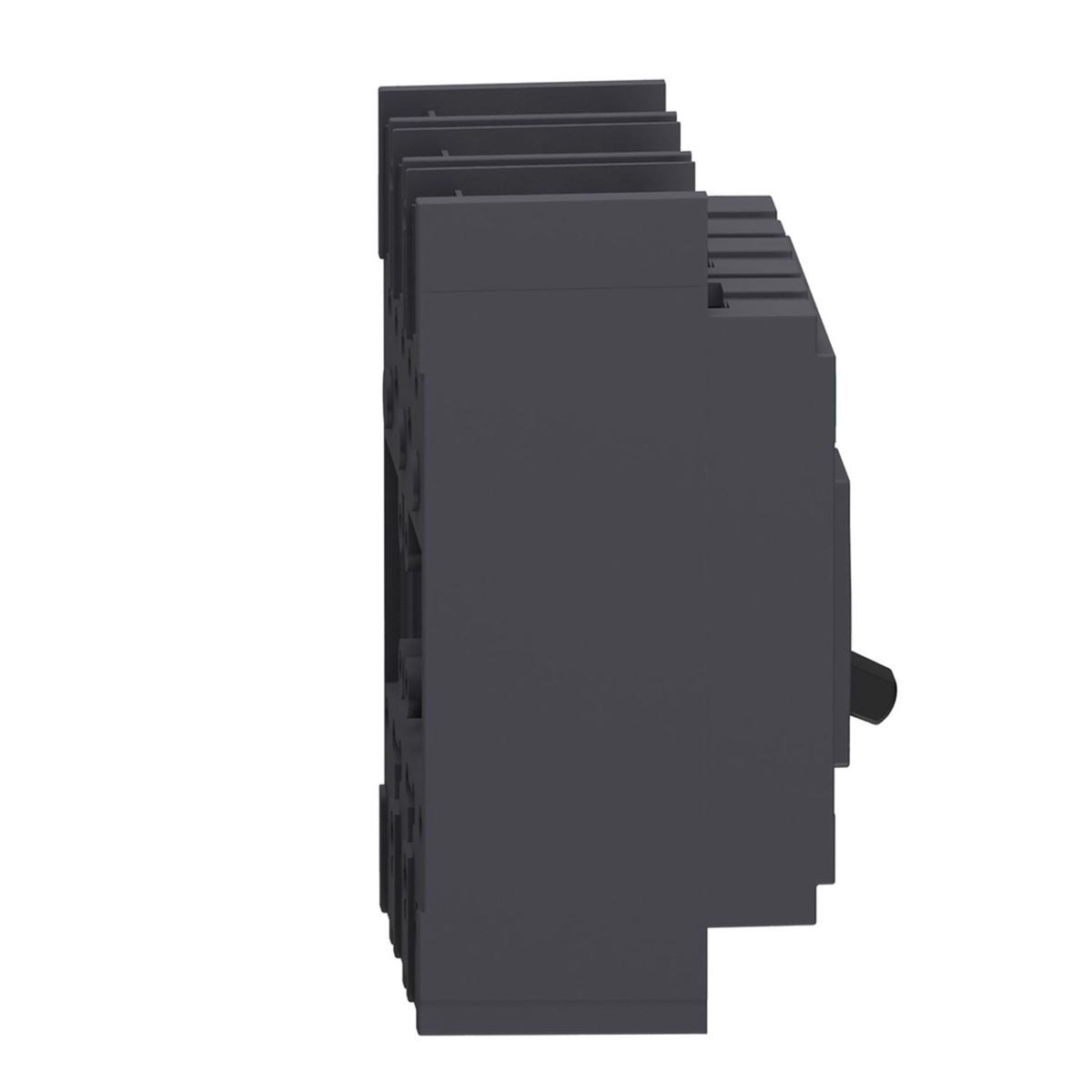

Square D QGP Q Frame Molded Case Circuit Breakers 200-200 A 240 VAC 65 kAIC 3 Pole 3 Phase
Mfg #:
QGP32200TM
BOR #:
1683933
Q Frame Molded Case Circuit Breakers
- QGP Series
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount lug) |
| Voltage | 240 VAC |
| Frame Type | Q Frame |
| Interrupting Rating | 65 kAIC |
| Number of Phases | 3 Phase |
| Wire Size | 4 AWG - 300 kcmil |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 200-200 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf) | Catalog |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
| PowerPact Q-Frame, Certificate, UL - UL_Certificate_E84905_PowerPact_Q (pdf) | Compliance |
|
| Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf) | Catalog |
|
| PowerPact Q-Frame Circuit Breakers Installation and User Guide - 48940-218-01 (pdf) | Installation and Instruction Manuals |
|
