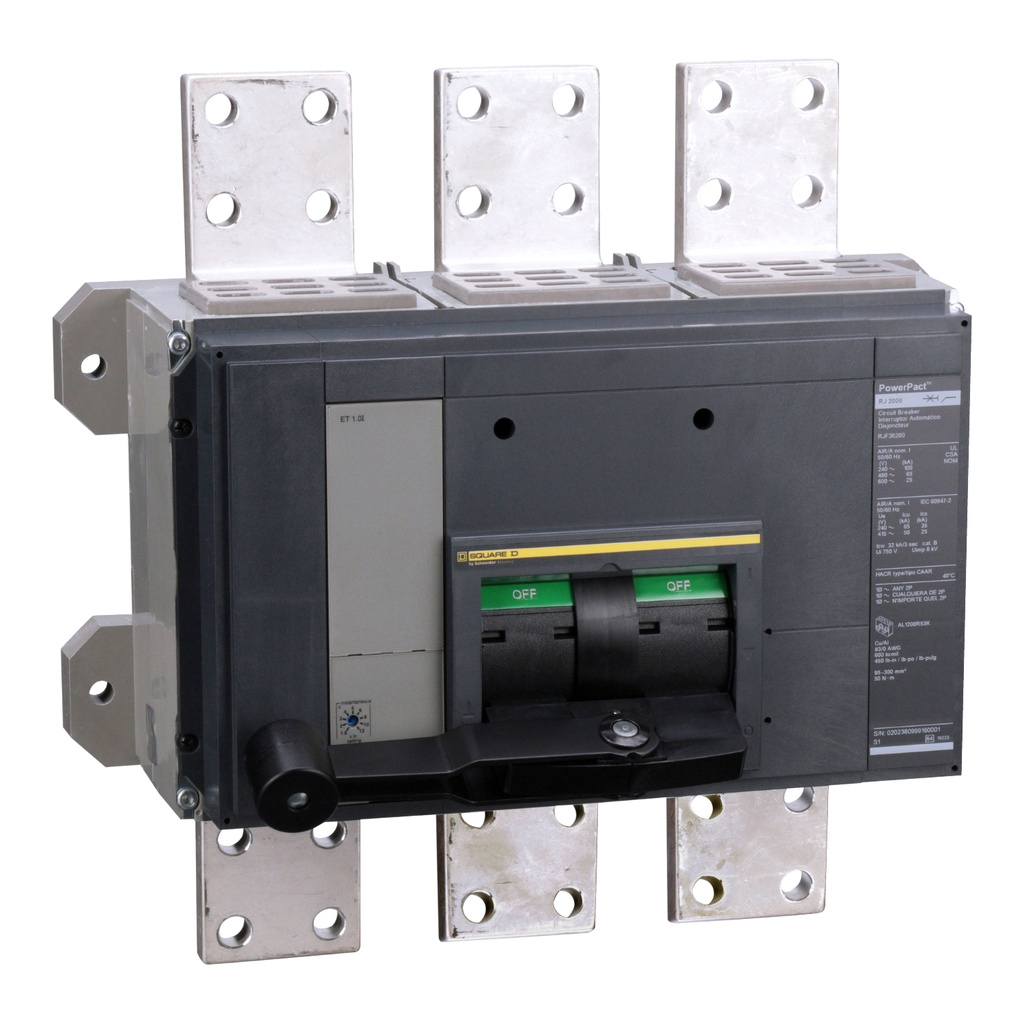

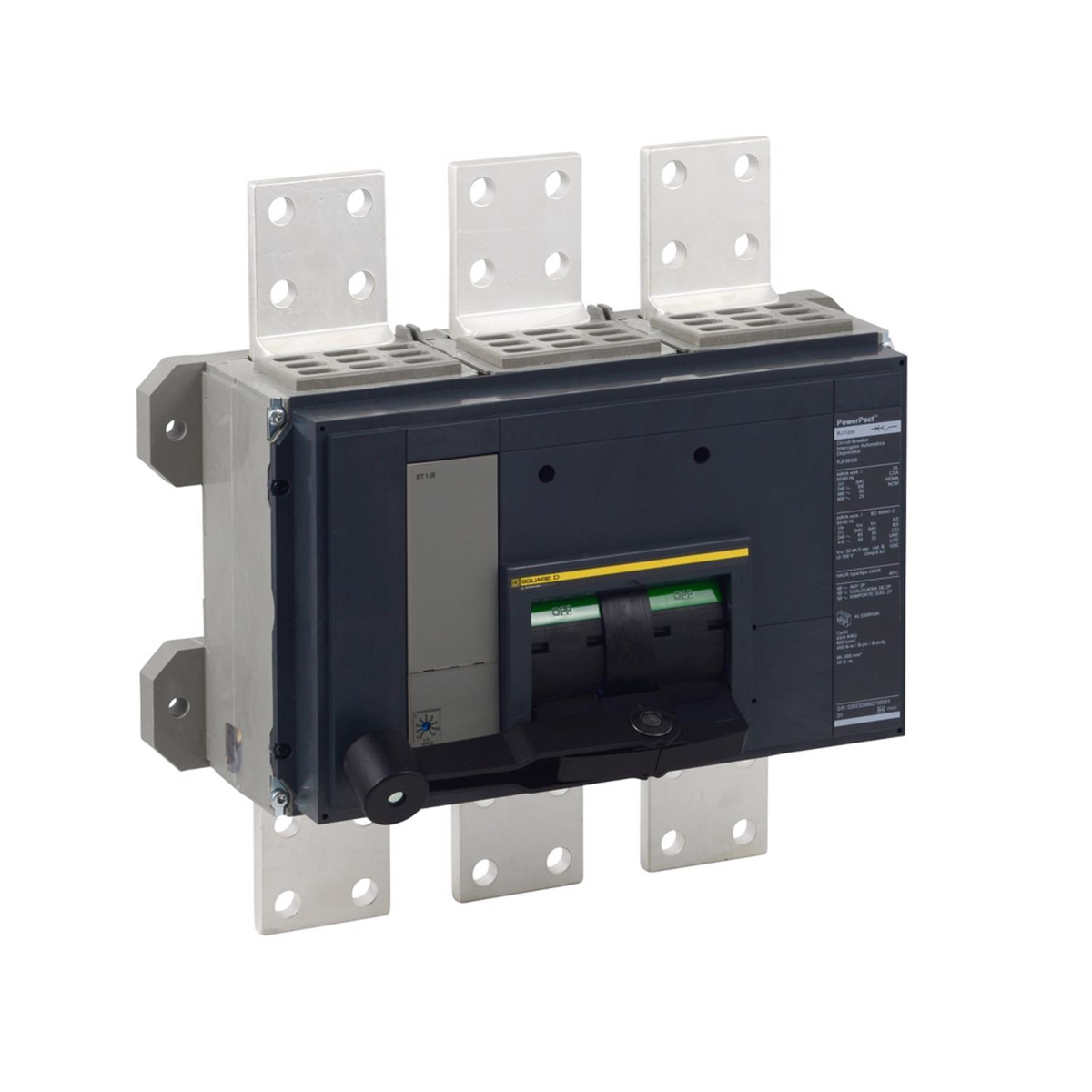

Square D PowerPact™ RJF Molded Case Industrial Circuit Breakers 2000 A 600 VAC 25 kAIC 3 Pole
Mfg #:
RJF36200
BOR #:
3609115
Related Items
Select Options
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | R Frame |
| Interrupting Rating | 25 kAIC |
| Trip Type | Electronic |
| Amperage | 2000 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf) | Catalog |
|
| PowerPact R-Frame, Certificate, CSA - CSA_Certificate_Powerpact_R (pdf) | Compliance |
|
| PowerPact R-Frame, Certificate, CSA - CSA_Powerpact_R (pdf) | Compliance |
|
| PowerPacT R-Frame and NS1600b–NS3200 Circuit Breaker Installation Instructions - 48049-243-04+Rev+06 (pdf) | Installation and Instruction Manuals |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| PowerPact R-Frame, Certificate, EN, Schneider Electric - IEC_Certificate_PowerPact_R_60947-2 (pdf) | Compliance |
|
| PowerPact R-Frame, Certificate, UL - UL_MARINE_E85161_breakers (pdf) | Compliance |
|
| PowerPact R-Frame, Certificate, UL - UL_Certificate_E10027-20011018 (pdf) | Compliance |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
