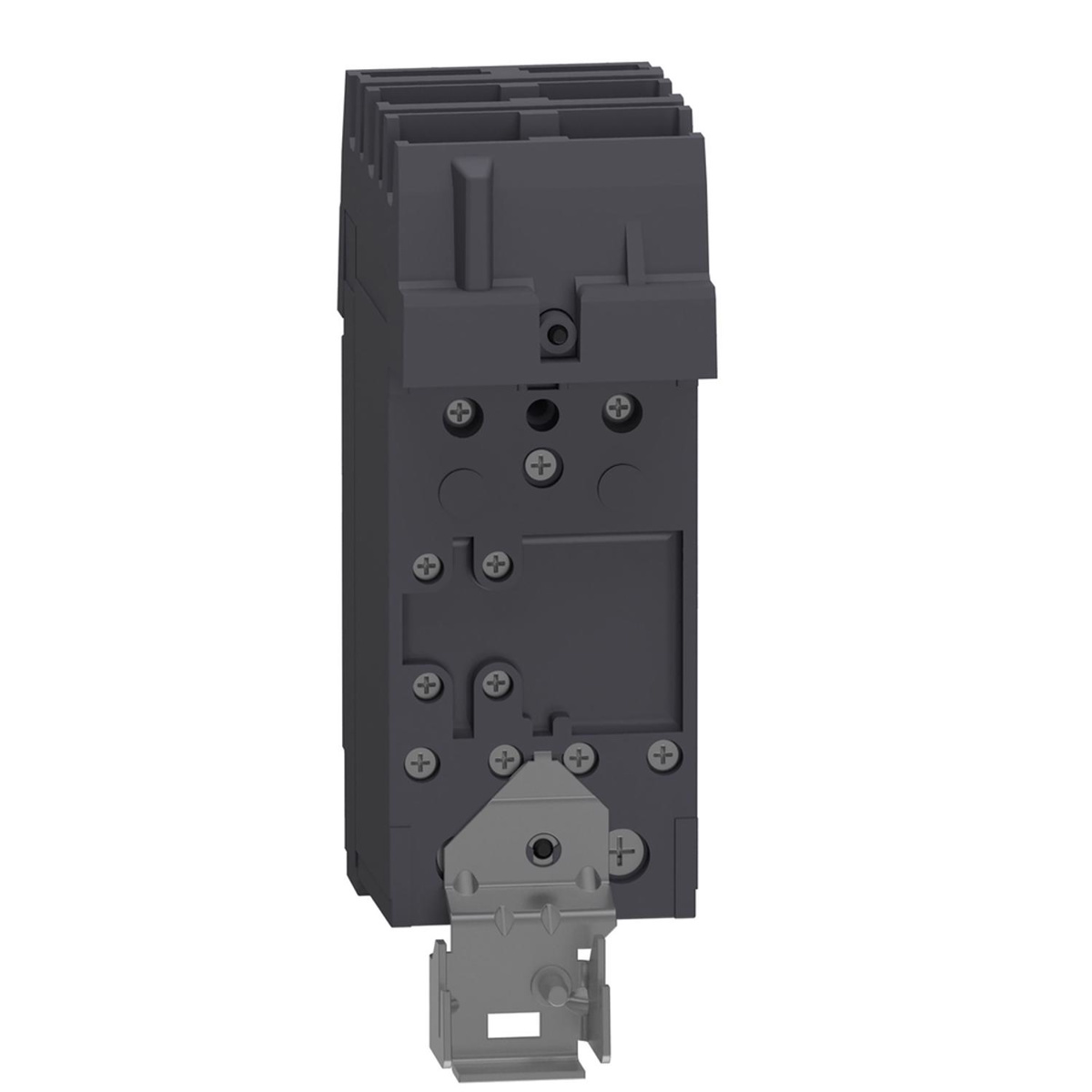

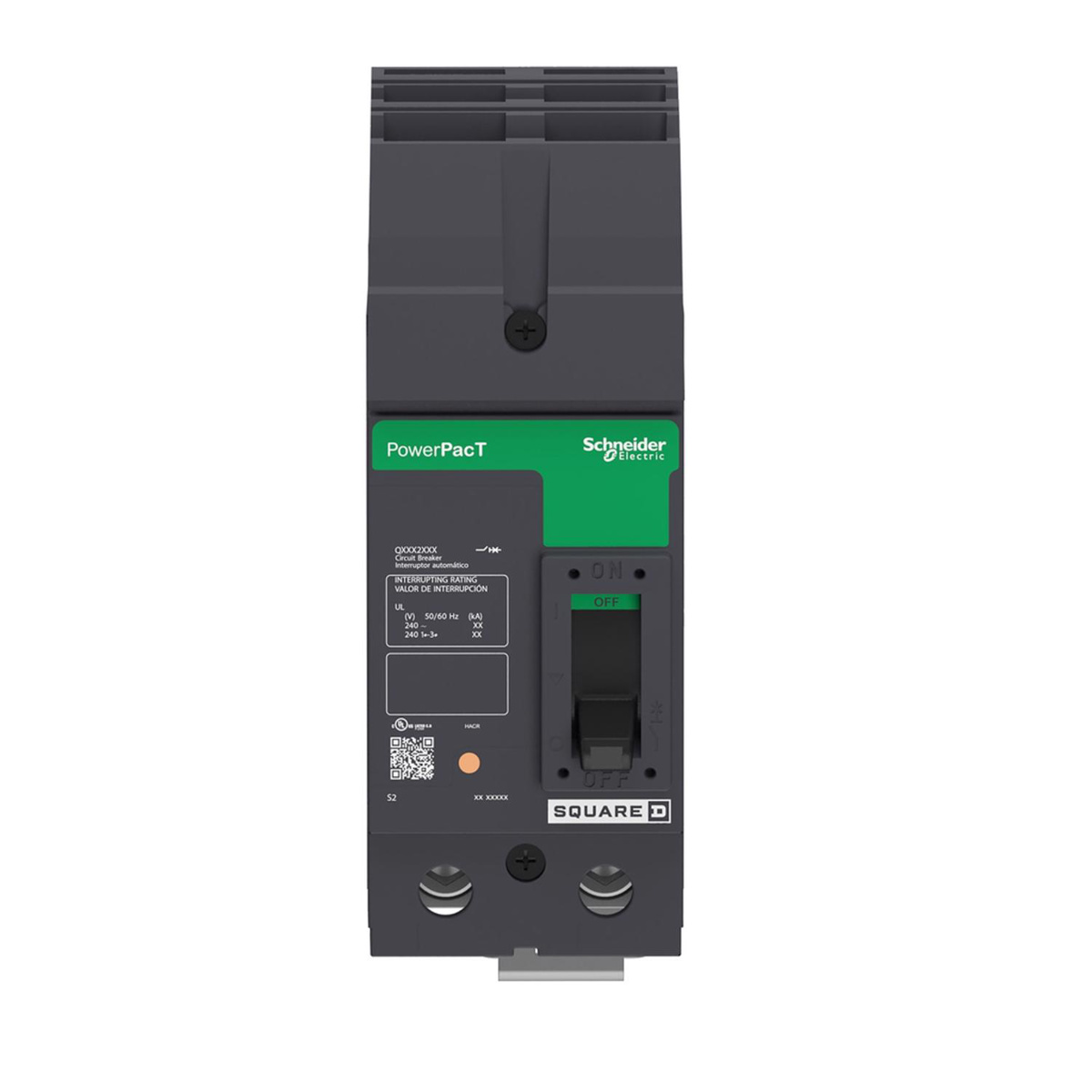

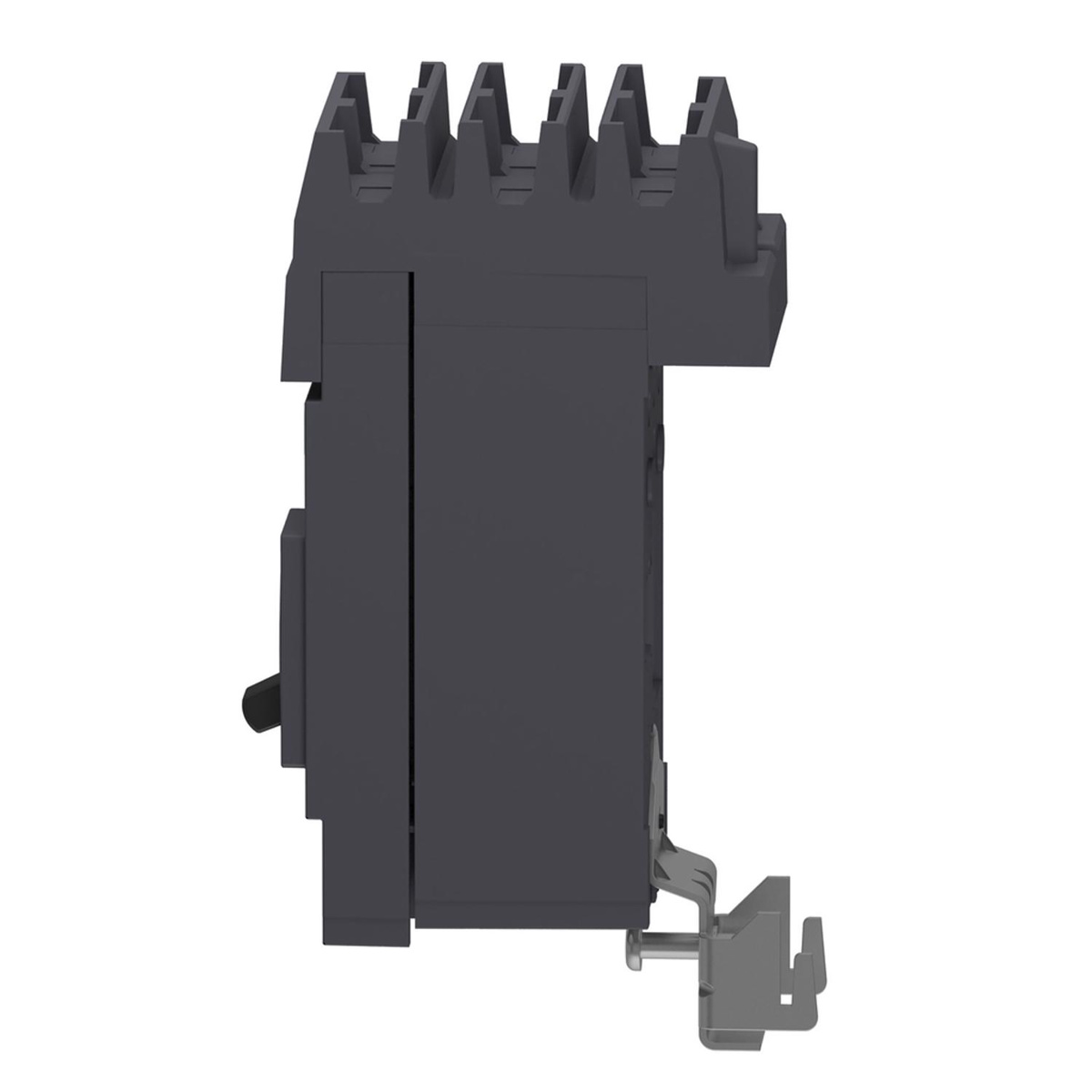

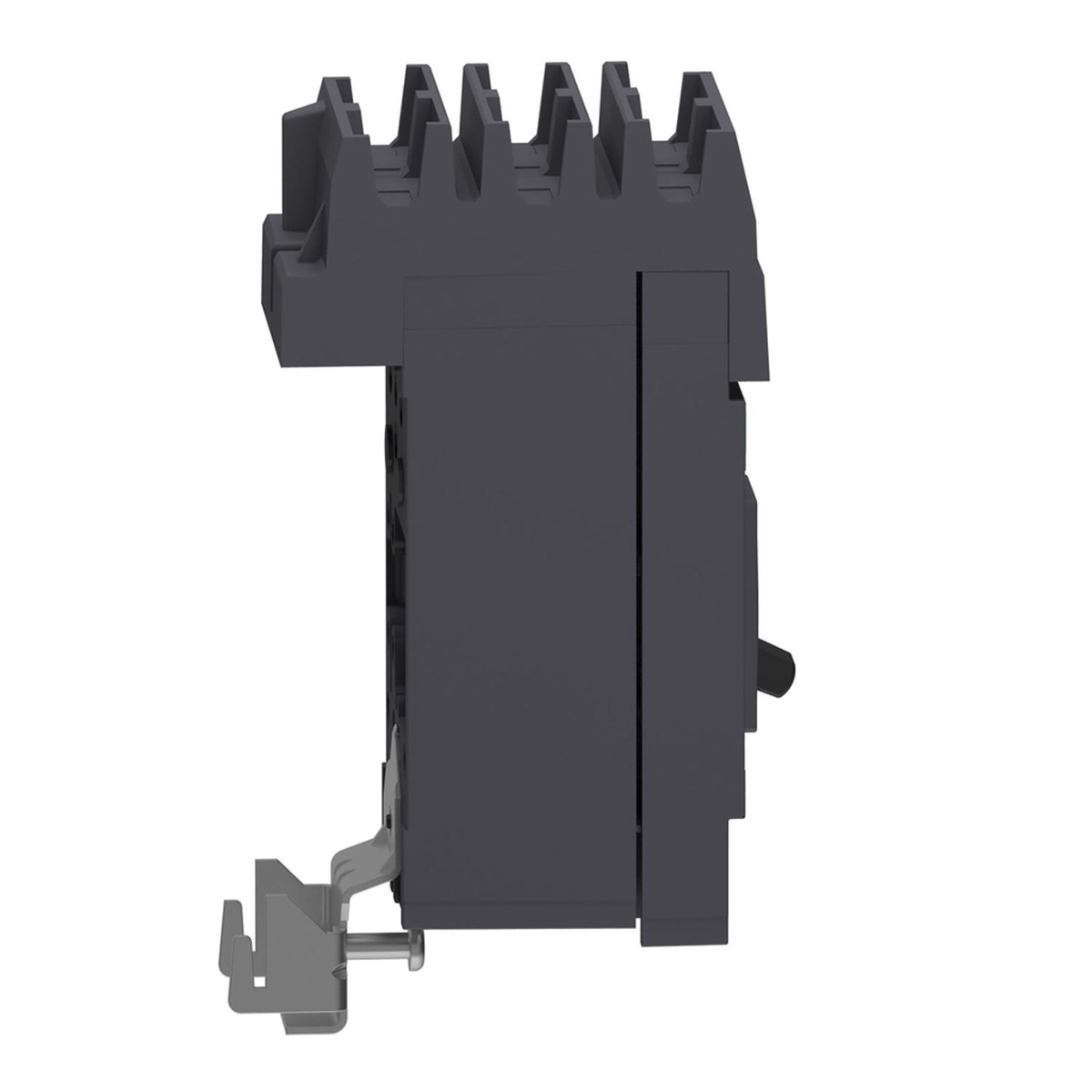

Square D PowerPact™ QDA Molded Case Industrial Circuit Breakers 125-125 A 240 VAC 25 kAIC 2 Pole 1 Phase
Mfg #:
QDA221252
BOR #:
1425725
PowerPact™ Molded Case Industrial Circuit Breakers
- QDA Series
Related Items
Select Options
| Brand | Square D |
| Mounting Type | I-Line bracket) |
| Voltage | 240 VAC |
| Frame Type | Q Frame |
| Interrupting Rating | 25 kAIC |
| Number of Phases | 1 Phase |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 125-125 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 2 Pole |
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
| PowerPact Q-Frame Circuit Breakers Installation and User Guide - 48940-218-01 (pdf) | Installation and Instruction Manuals |
|
| PowerPact Q-Frame, Certificate, UL - UL_Certificate_E84905_PowerPact_Q (pdf) | Compliance |
|
