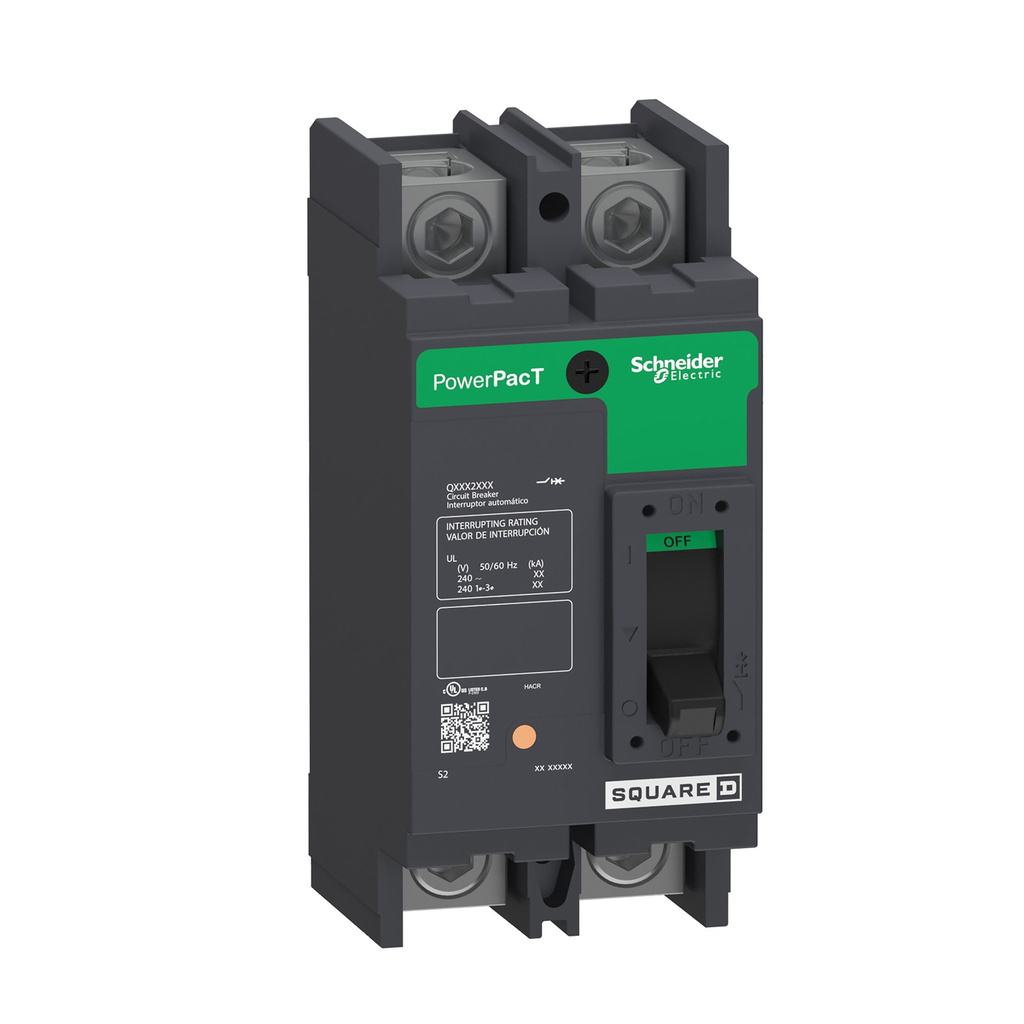

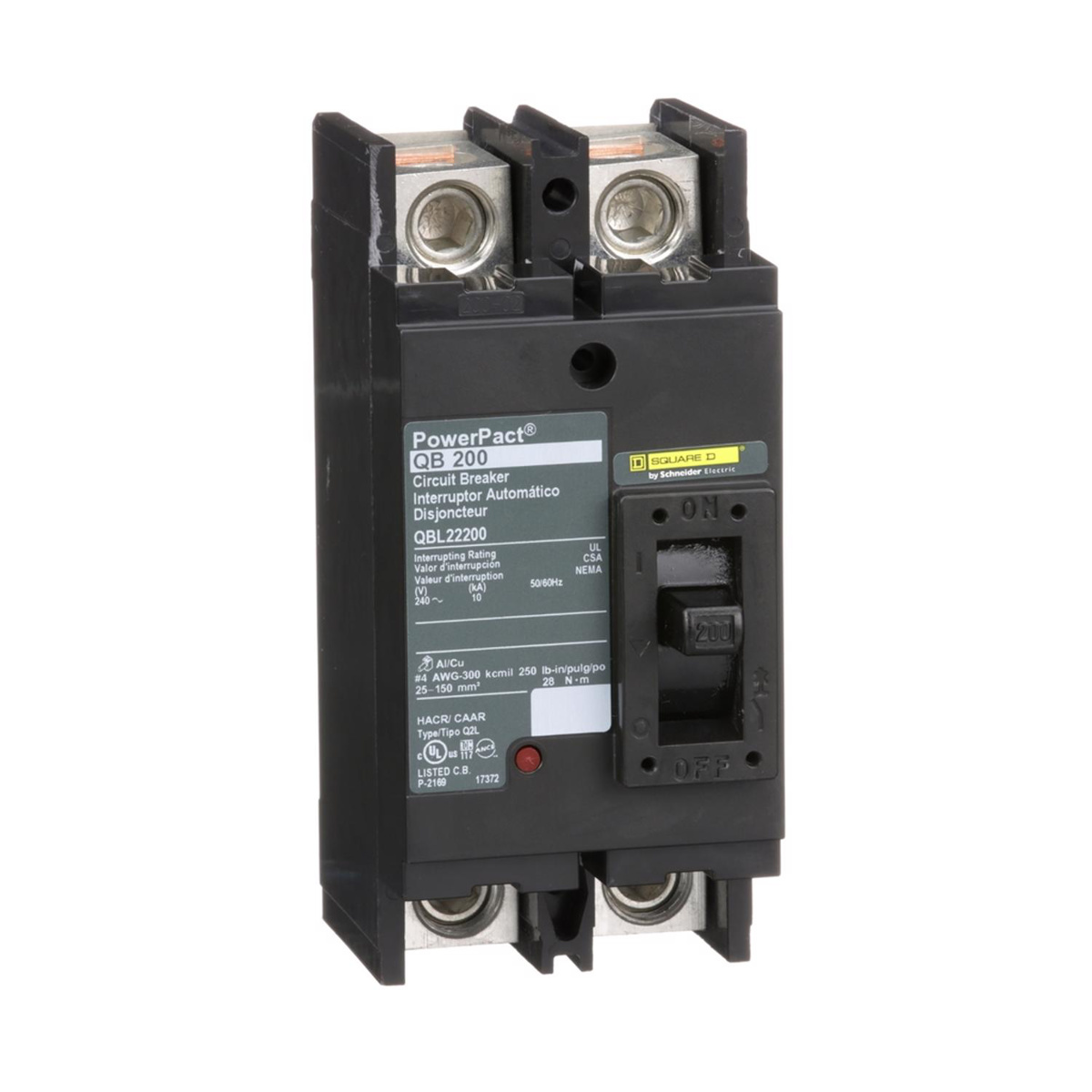

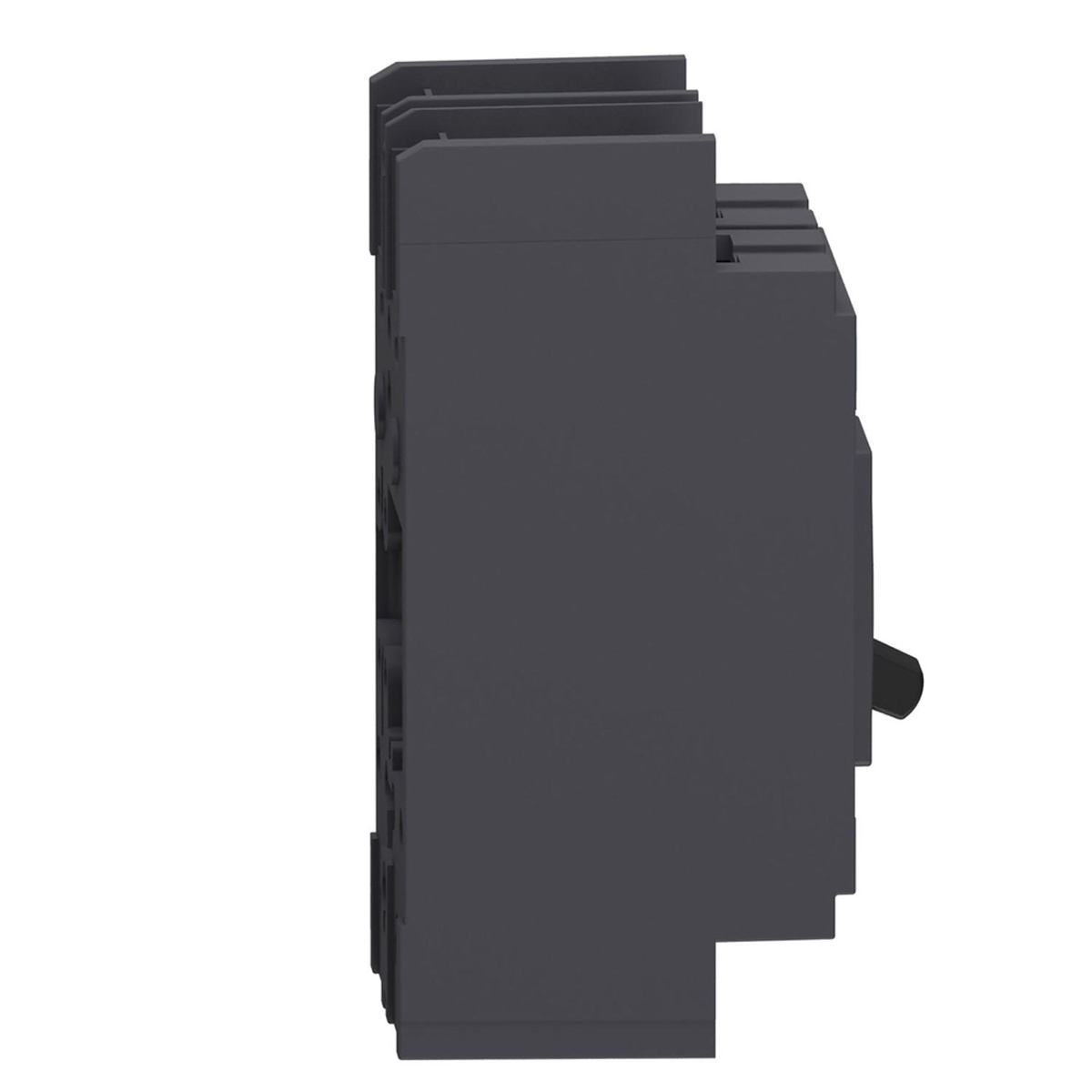

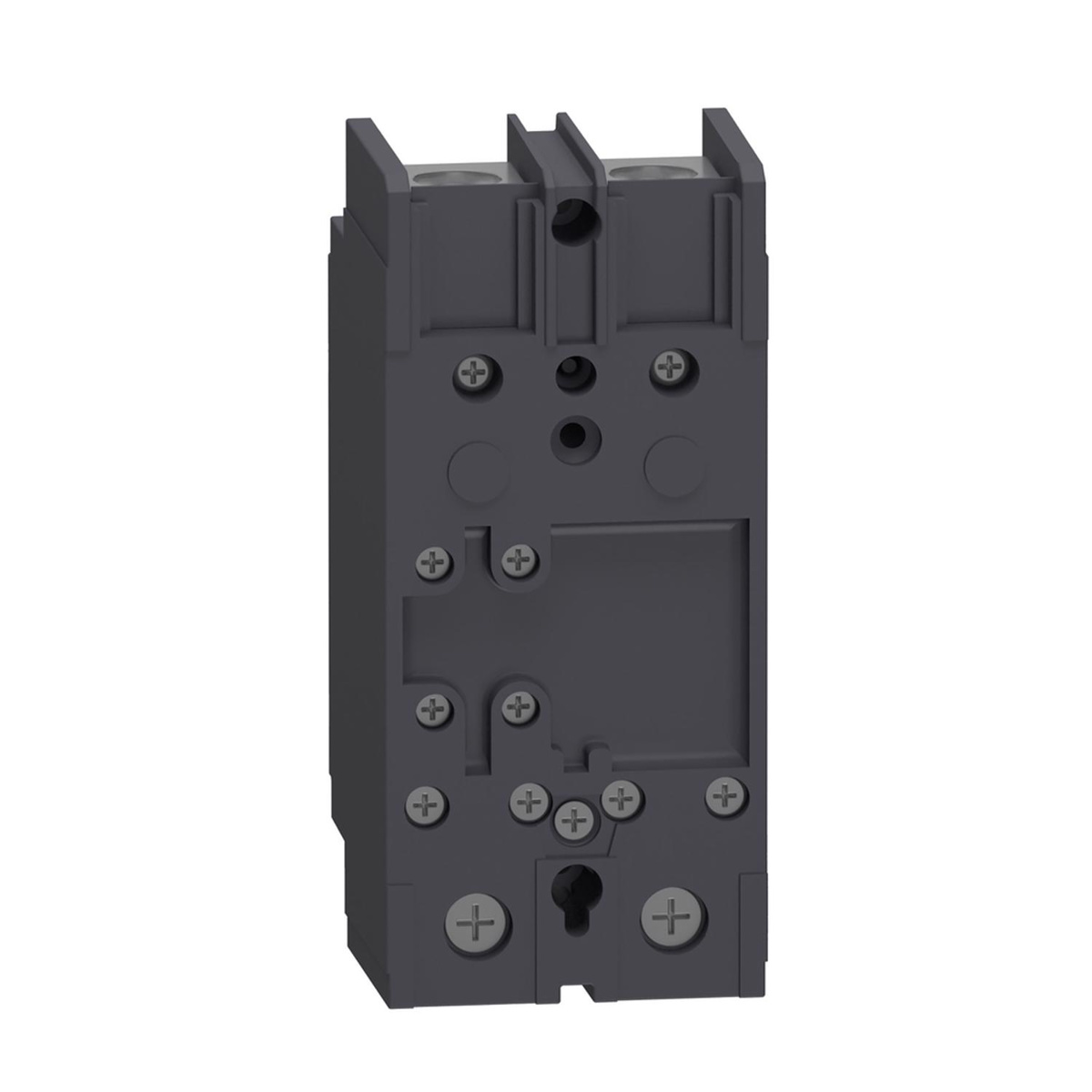

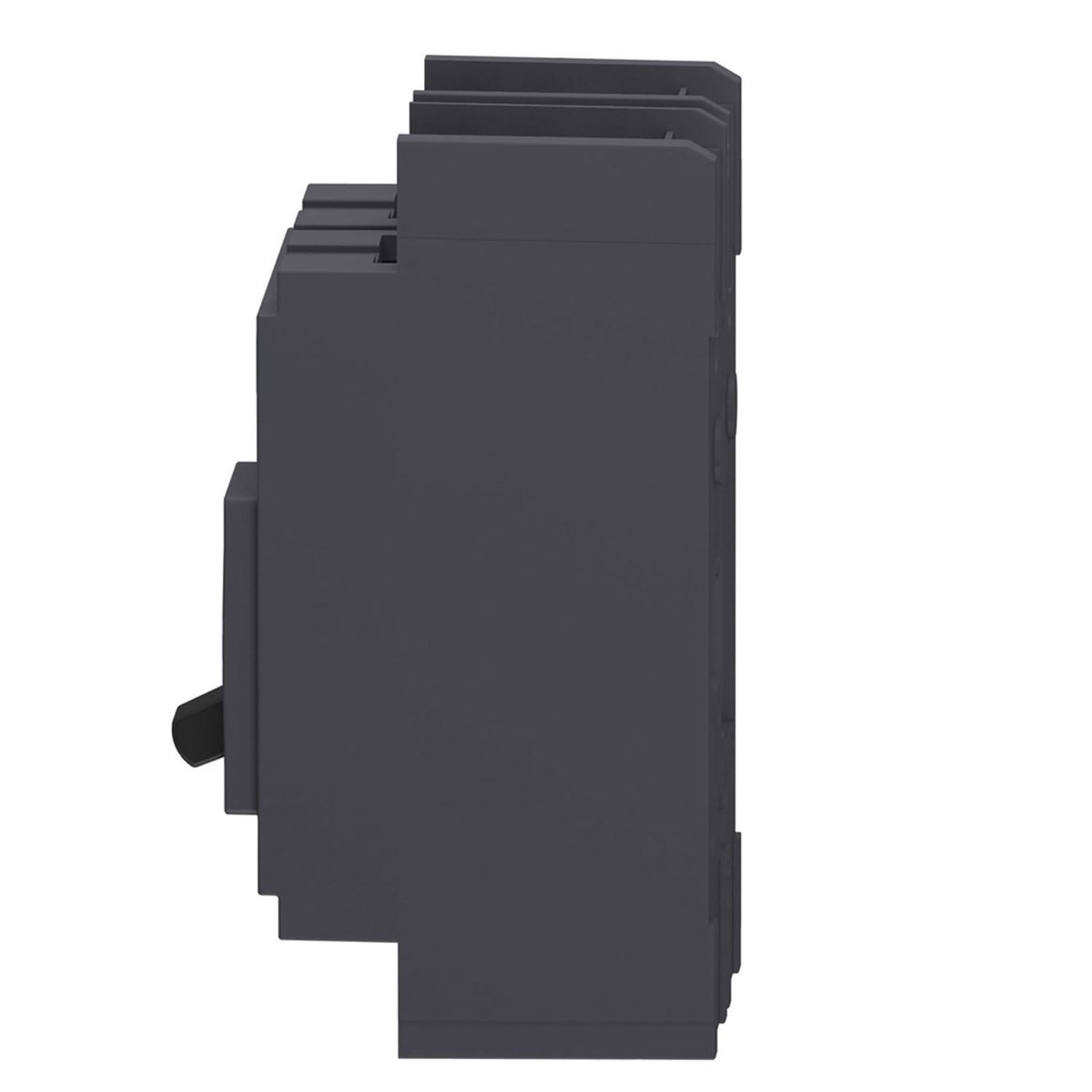

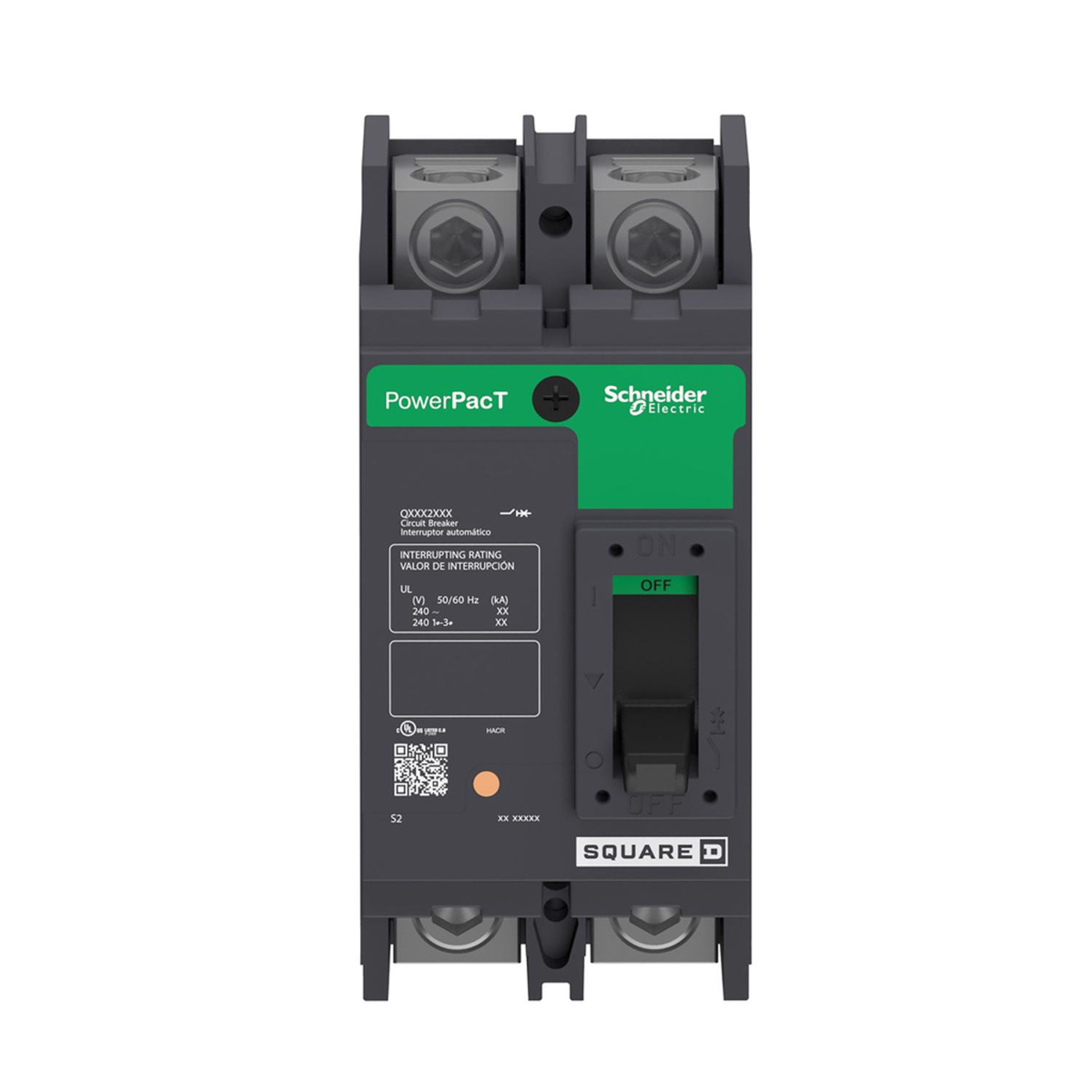

Square D PowerPact™ QBL Cable-in/Cable-out Molded Case Industrial Circuit Breakers 200-200 A 240 VAC 10 kAIC 2 Pole 1 Phase
Mfg #:
QBL22200
BOR #:
1387713
PowerPact™ Molded Case Industrial Circuit Breakers
- QBL Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount lug) |
| Voltage | 240 VAC |
| Frame Type | Q Frame |
| Interrupting Rating | 10 kAIC |
| Number of Phases | 1 Phase |
| Wire Size | 4 AWG - 300 kcmil |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 200-200 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 2 Pole |
| PowerPact Q-Frame Circuit Breakers Installation and User Guide - 48940-218-01 (pdf) | Installation and Instruction Manuals |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| PowerPact Q-Frame, Certificate, UL - UL_Certificate_E84905_PowerPact_Q (pdf) | Compliance |
|
| Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf) | Catalog |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Square D CAFI, GFI, and DF Circuit Breakers Brochure - 0790BR1601 (pdf) | Brochure |
|
