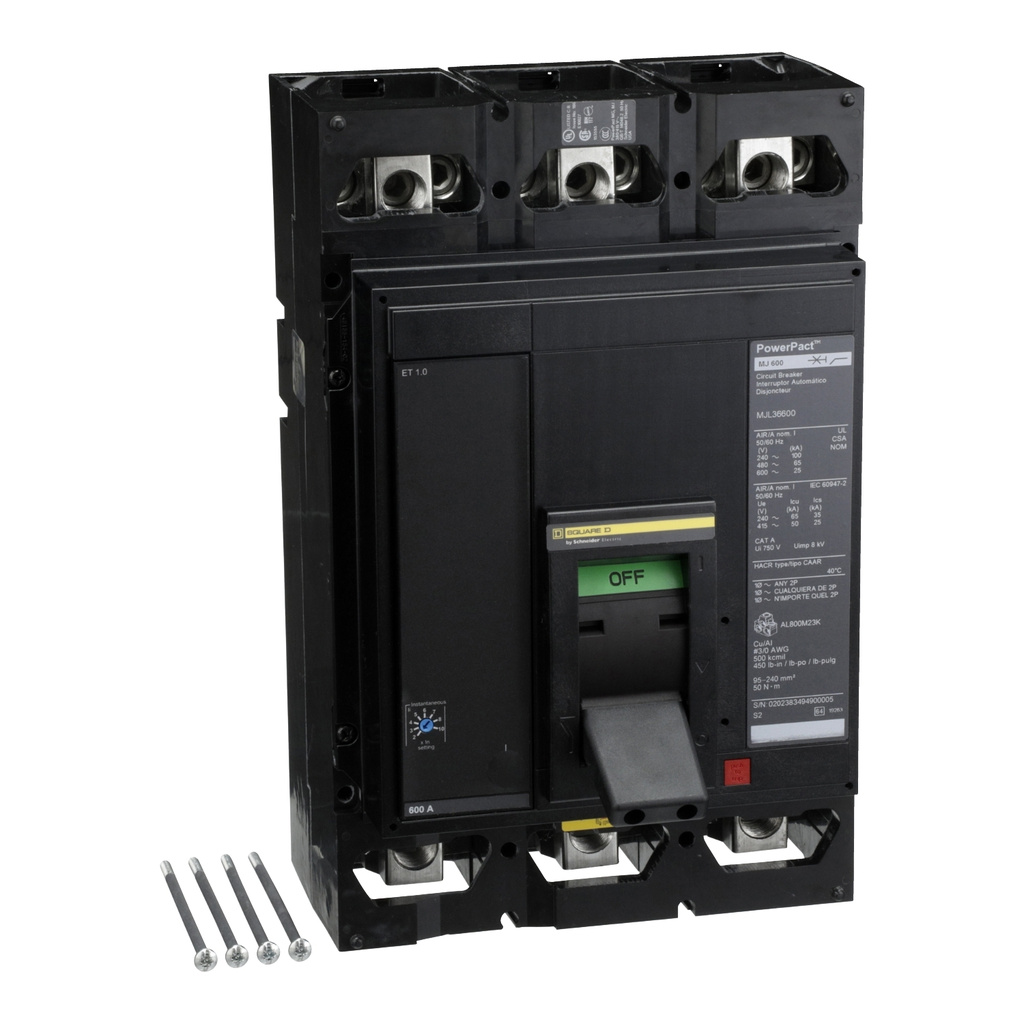

Square D PowerPact™ MJL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 600-600 A 600 VAC 25 kAIC 3 Pole 3 Phase
Mfg #:
MJL36600
BOR #:
1685174
PowerPact™ Molded Case Industrial Circuit Breakers
- MJL Series
- Cable-in/Cable-out
- IEC Rated
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount lug) |
| Voltage | 600 VAC |
| Frame Type | M Frame |
| Interrupting Rating | 25 kAIC |
| Net Weight | 29 lb |
| Product Certifications | UL ,, CSA ,, NOM |
| Wire Stripping Length | 25 mm |
| [Ith] Conventional Free Air Thermal Current | 600-600 A |
| Wire Size | 3/0 AWG - 500 kcmil |
| Trip Type | Electronic Trip |
| Amperage | 600-600 A |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Magnetic Tripping Current | 1200-6000 A |
| Number of Phases | 3 Phase |
| Circuit Breaker Type | Molded Case Breaker |
| PowerPacT Circuit Breakers - M-Frame, Certificate, IEC - Licence+-+Certificat+Produits-7170603 (pdf) | Compliance |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| PowerPact M-Frame, Certificate, IEC/CEI, Square D - PowerPact_M_C_of_C_IEC60947-2 (pdf) | Compliance |
|
| PowerPact M-Frame, Certificate, CSA - CSA_PowerPact_M_Certificate_of_Compliance (pdf) | Compliance |
|
| PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPact M-Frame, Certificate, UL - 20040331-E10027_PowerPact_M (pdf) | Compliance |
|
