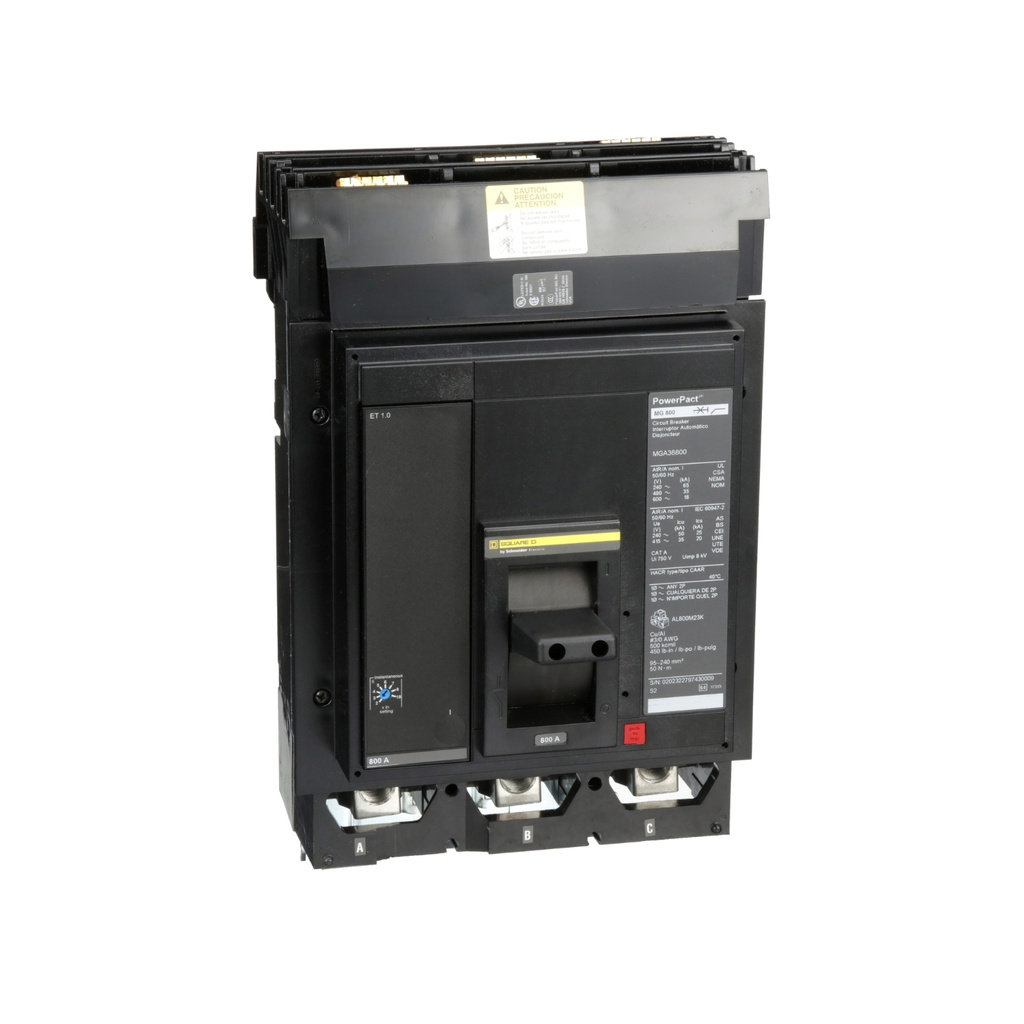

Square D PowerPact™ MGA Molded Case Industrial Circuit Breakers 800-800 A 600 VAC 18 kAIC 3 Pole 3 Phase
Mfg #:
MGA36800
BOR #:
1685537
PowerPact™ Molded Case Industrial Circuit Breakers
- MGA Series
Related Items
Select Options
| Brand | Square D |
| Mounting Type | I-Line bracket) |
| Voltage | 600 VAC |
| Frame Type | M Frame |
| Interrupting Rating | 18 kAIC |
| Number of Phases | 3 Phase |
| Trip Type | Electronic Trip |
| Amperage | 800-800 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Field-Installable Phase Barrier Kit for M- and P-Frame and NS630b-NS1600 Circuit Breakers - Installation - 48049-274-01 (pdf) | Installation and Instruction Manuals |
|
| PowerPact M-Frame, Certificate, UL - 20040331-E10027_PowerPact_M (pdf) | Compliance |
|
| PowerPact M-Frame, Certificate, IEC/CEI, Square D - PowerPact_M_C_of_C_IEC60947-2 (pdf) | Compliance |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| PowerPact M-Frame, Certificate, CSA - CSA_PowerPact_M_Certificate_of_Compliance (pdf) | Compliance |
|
| PowerPacT Circuit Breakers - M-Frame, Certificate, IEC - Licence+-+Certificat+Produits-7170603 (pdf) | Compliance |
|
| PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf) | Catalog |
|
| PowerPact M-Frame, Certificate, UL - 271005-E10027 (pdf) | Compliance |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
