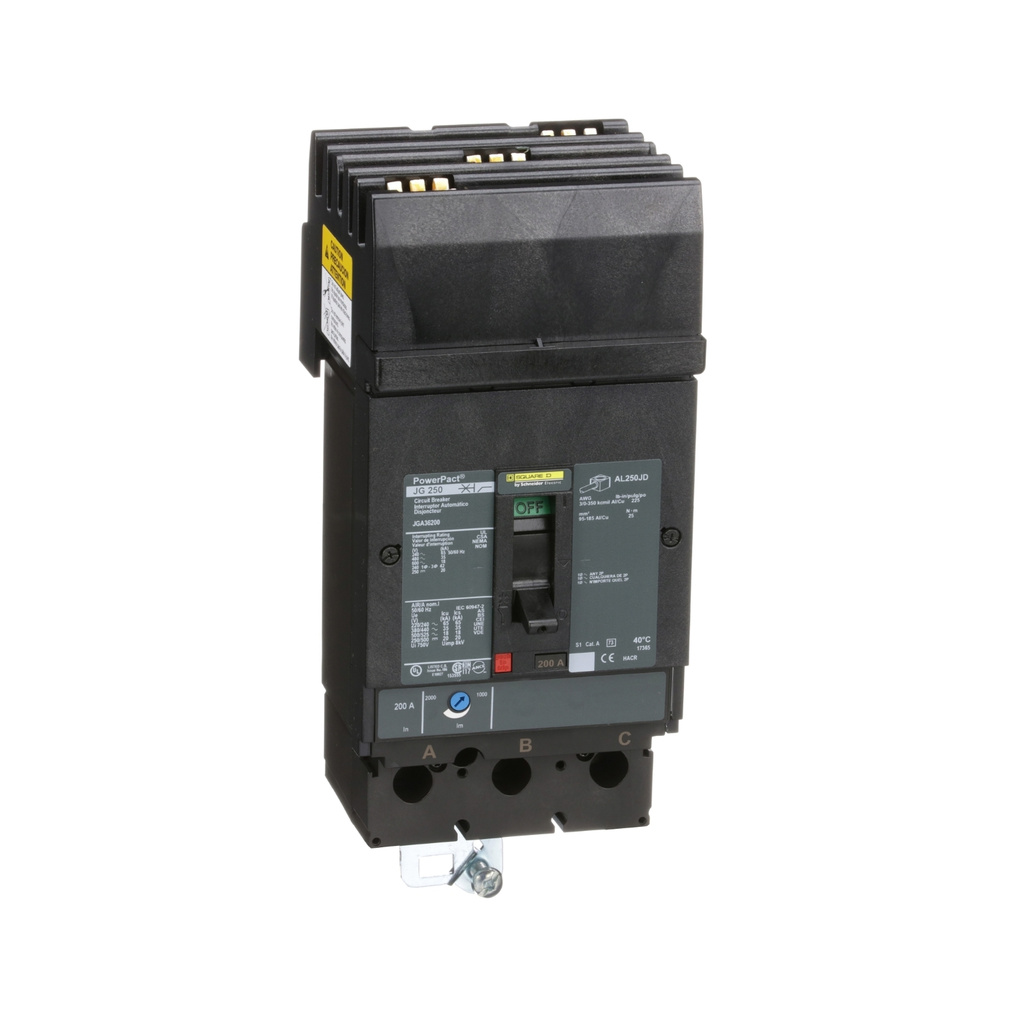

Square D PowerPact™ JGA Cable-in/Cable-out Molded Case Industrial Circuit Breakers 200-200 A 600 VAC 18 kAIC 3 Pole 3 Phase
PowerPact™ Molded Case Industrial Circuit Breakers
- JGA Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Mounting Type | I-Line bracket) |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 18 kAIC |
| Number of Phases | 3 Phase |
| Wire Size | 3/0 AWG - 350 kcmil |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 200-200 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| PowerPacT™ H- and J-Frame Circuit Breakers and Switches – Installation - JYT65471_Rev+02 (pdf) | Installation and Instruction Manuals |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
| PowerPact J-Frame Molded Case Circuit Breakers, Certificate, KC, KTC - KC_Cert_HV05004-18003A+JGL36250 (pdf) | Compliance |
|
| PowerPact J, JD, JG, JJ, JL, JR. MICROLOGIC LI, LSI, LSIG 70A-250A - CCC_Certificate_Ex_8-2020 (pdf) | Compliance |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
