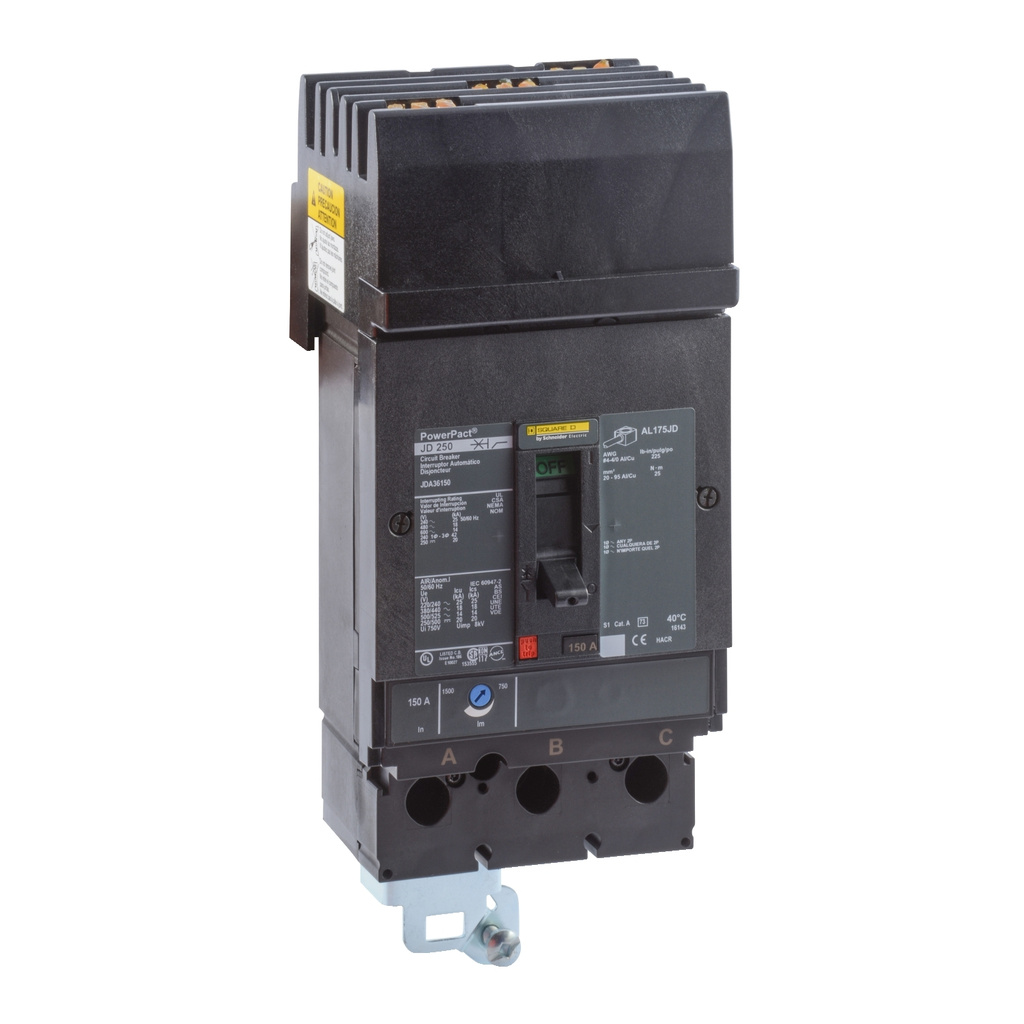

Square D PowerPact™ JDA Molded Case Industrial Circuit Breakers 150-150 A 600 VAC 14 kAIC 3 Pole 3 Phase
PowerPact™ Molded Case Industrial Circuit Breakers
- JDA Series
Brand | Square D |
Mounting Type | I-Line bracket) |
Voltage | 600 VAC |
Frame Type | J Frame |
Interrupting Rating | 14 kAIC |
Number of Phases | 3 Phase |
Wire Size | 4 - 4/0 AWG |
Trip Type | Fixed Thermal and Magnetic Trip |
Amperage | 150-150 A |
Circuit Breaker Type | Molded Case Breaker |
Indicator Type | Common Trip |
Number of Poles | 3 Pole |
