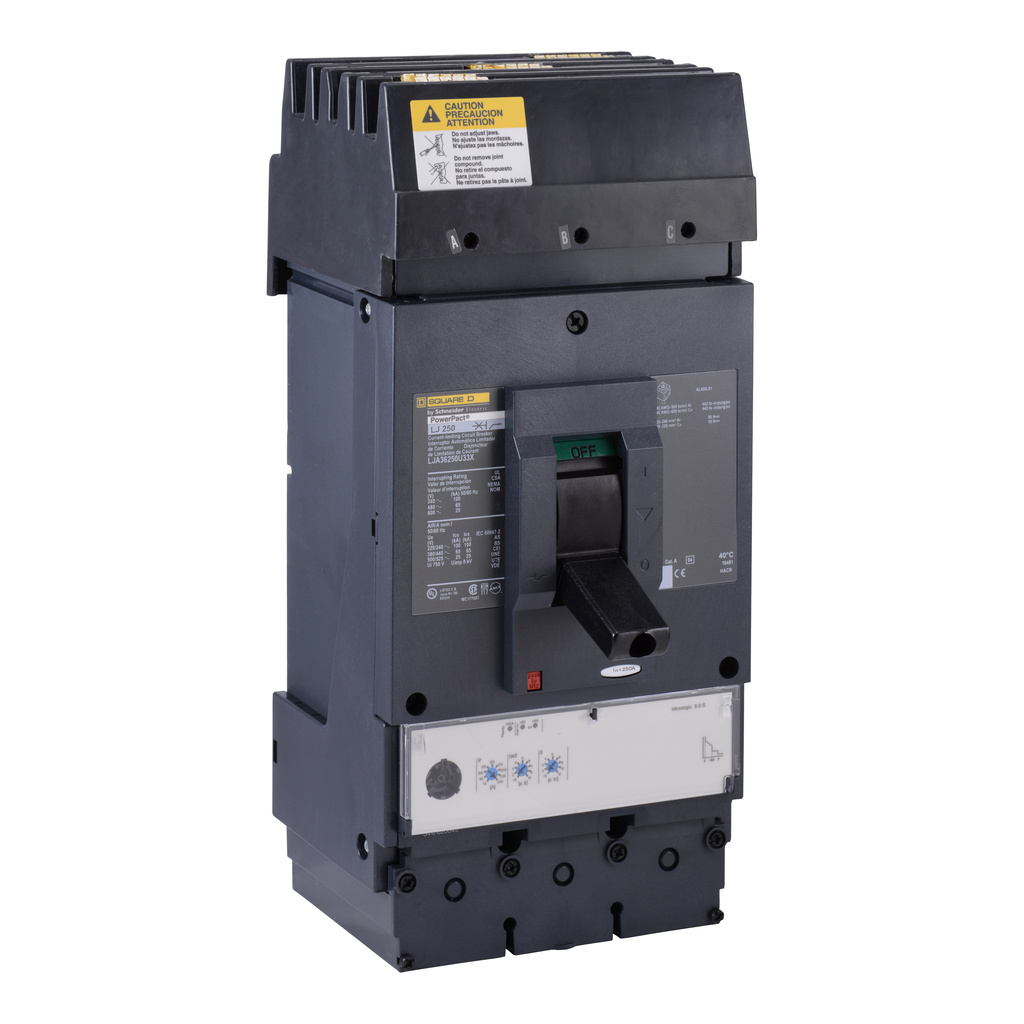

Square D PowerPact™ I-Line™ LJA Cable-in / Cable-out Molded Case Industrial Circuit Breakers 250-250 A 600 VAC 25 kAIC 3 Pole
PowerPact™ I-Line™ Molded Case Industrial Circuit Breakers
- LJA Series
- Cable-in/Cable-out
| Brand | Square D |
| Mounting Type | I-Line bracket) |
| Voltage | 600 VAC |
| Frame Type | L Frame |
| Interrupting Rating | 25 kAIC |
| Trip Type | Electronic |
| Amperage | 250-250 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPact L-Frame Molded Case Circuit Breakers, Certificate, CCC, CQC-CQM - CCC+-+SDoC_PPL (pdf) | Compliance |
|
| PowerPact L-Frame Molded Case Circuit Breakers, Certificate, CCC, CQC-CQM - CCC-CQC+certificate+of+Compliance (pdf) | Compliance |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
| 500 Vdc Thermal-magnetic Circuit Breakers, Certificate, CSA - CSA+-+CoFC_80044434_EN (pdf) | Compliance |
|
| PowerPact L-Frame Molded Case Circuit Breakers, Certificate, IECEE/CB, TÜV - TUV+-+CoC+IEC (pdf) | Compliance |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPacT L-Frame Electronic Trip Circuit Breakers Installation Instructions - JYT65477+Rev+01 (pdf) | Installation and Instruction Manuals |
|
| PowerPact H-Frame Molded Case Circuit Breakers, Certificate, BUREAU VERITAS - BV+Marine+-+Type+Approval (pdf) | Compliance |
|
Removing Lugs from 400/600A I-Line PowerPact L-Frame Circuit Breaker | Schneider Electric Support
Tutorial for removing the lugs from an I-Line PowerPact L-Frame molded case circuit breaker with a...
Removing Lugs from 400/600A Unit Mount PowerPact L-Frame Breakers | Schneider Electric Support
Tutorial for removing the lugs from a Unit Mount PowerPact L-Frame molded case circuit breaker with...
