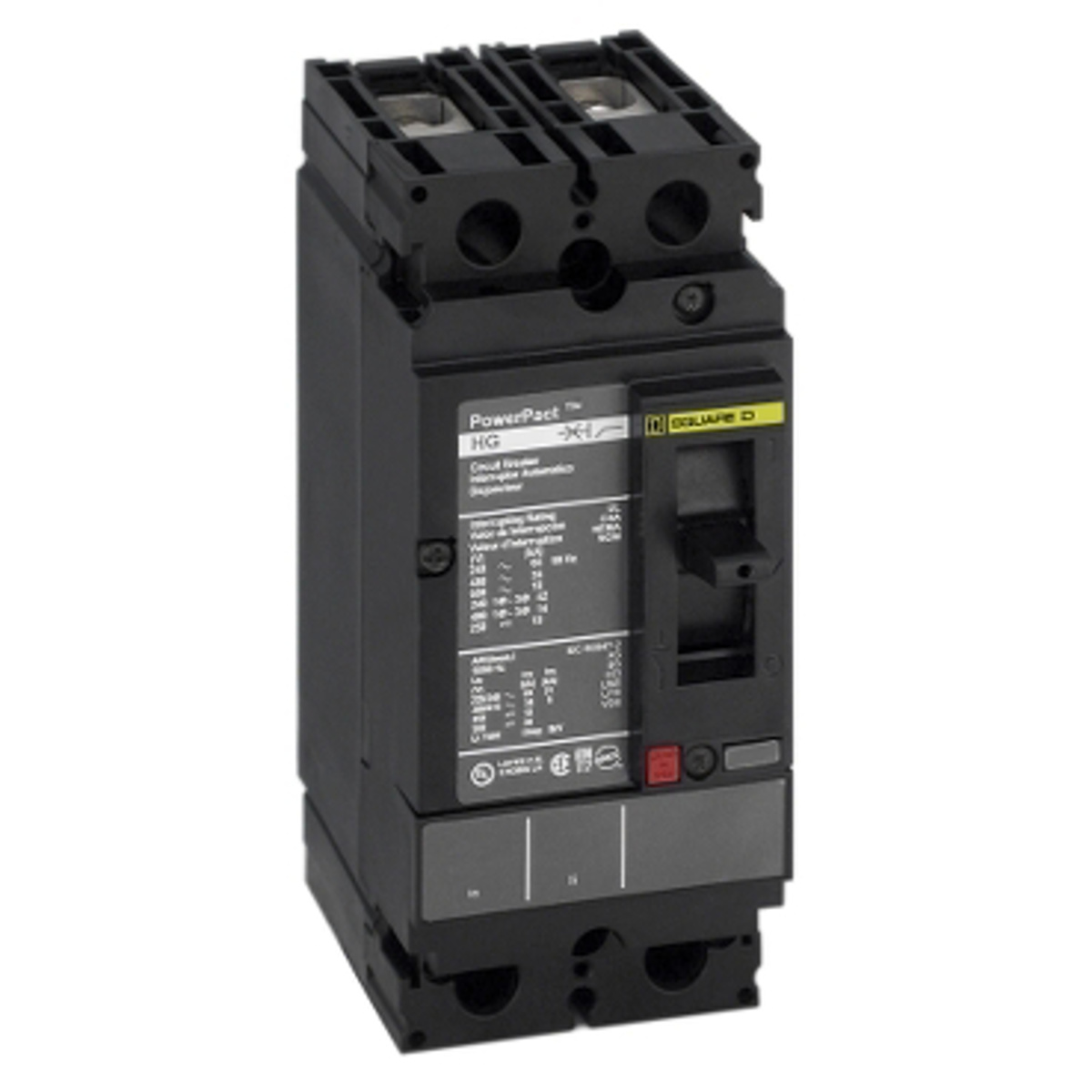

Square D PowerPact™ HDL Cable-in/Cable-out Molded Case Industrial Circuit Breakers 25-25 A 600 VAC 14 kAIC 2 Pole 1 Phase
PowerPact™ Molded Case Industrial Circuit Breakers
- HDL Series
- Cable-in/Cable-out
Related Items
Select Options
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | unit mount lug) |
| Voltage | 600 VAC |
| Frame Type | H Frame |
| Interrupting Rating | 14 kAIC |
| Trip Range | 350 - 750 A |
| Number of Phases | 1 Phase |
| Wire Size | 14 - 3/0 AWG |
| Trip Type | Fixed Thermal and Adjustable Magnetic Trip |
| Amperage | 25-25 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 2 Pole |
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPact H- and J-Frame, Certificate, CSA - CoFC_H-J_MCCB_7-23-15 (pdf) | Compliance |
|
| Mechanical Lug Kits Installation Instructions - 48940-221-02 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+MCP (pdf) | Compliance |
|
| Schneider Electric Specification Sheet | Specification Sheet |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Power Distribution Connectors Installation for Circuit Breakers and Switches - 48040-929-04 (pdf) | Installation and Instruction Manuals |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+Breakers (pdf) | Compliance |
|
| PowerPacT Multistandard Circuit Breakers 15 - 600 A Catalog - LVPED212023EN_WEB2 (pdf) | Catalog |
|
