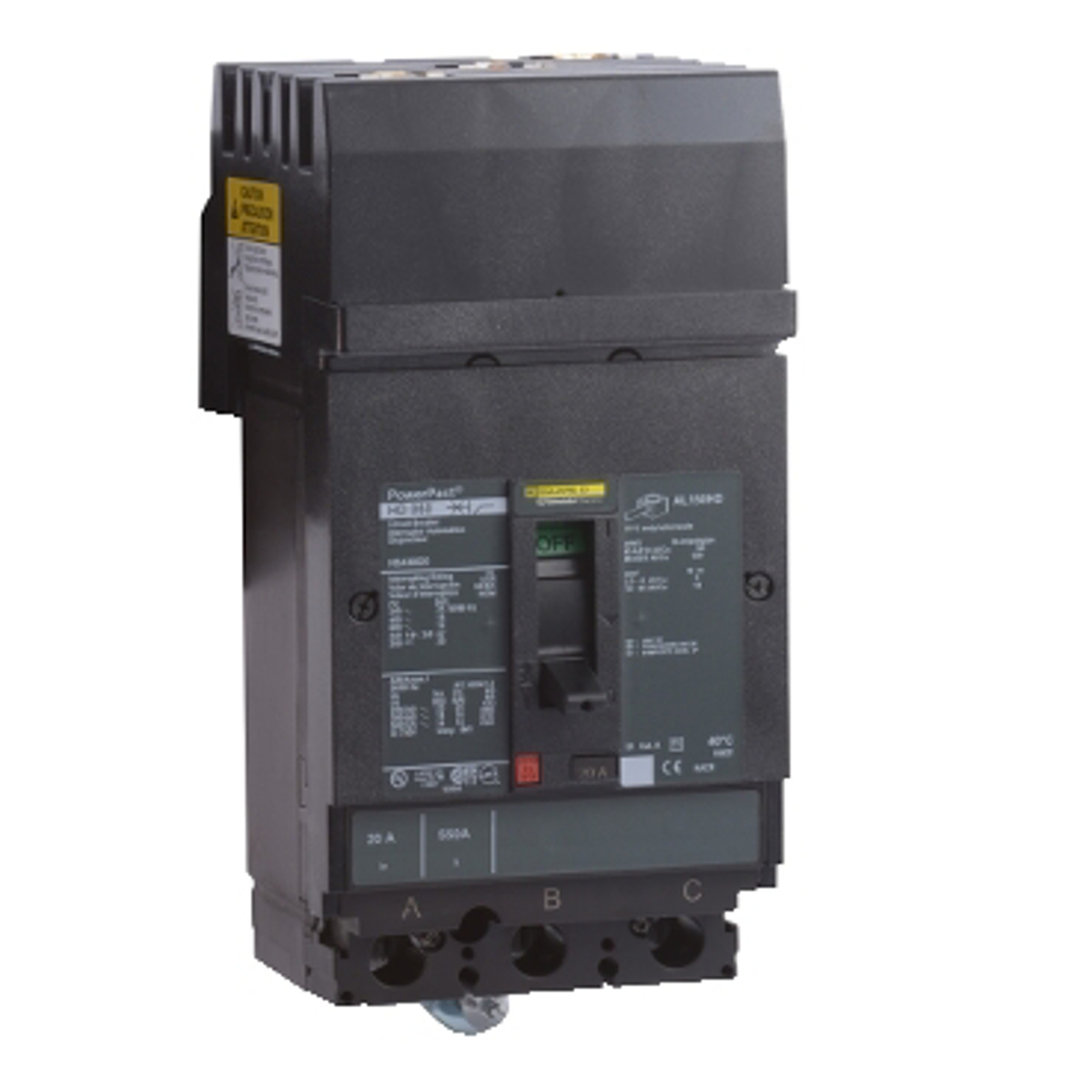

Square D PowerPact™ HDA Molded Case Industrial Circuit Breakers 20-20 A 600 VAC 14 kAIC 3 Pole 3 Phase
PowerPact™ Molded Case Industrial Circuit Breakers
- HDA Series
Related Items
Select Options
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | I-Line bracket) |
| Voltage | 600 VAC |
| Frame Type | H Frame |
| Interrupting Rating | 14 kAIC |
| Trip Range | 350 - 750 A |
| Number of Phases | 3 Phase |
| Wire Size | 14 - 3/0 AWG |
| Trip Type | Fixed Thermal and Adjustable Magnetic Trip |
| Amperage | 20-20 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+MCP (pdf) | Compliance |
|
| PowerPact H- and J-Frame, Certificate, CSA - CoFC_H-J_MCCB_7-23-15 (pdf) | Compliance |
|
| PowerPacT™ H- and J-Frame Circuit Breakers and Switches – Installation - JYT65471_Rev+02 (pdf) | Installation and Instruction Manuals |
|
| PowerPact H- and J-Frame, Certificate, CSA - CSA+H+and+J+Breakers (pdf) | Compliance |
|
| Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf) | Brochure |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Schneider Electric Specification Sheet | Specification Sheet |
|
| Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf) | Catalog |
|
