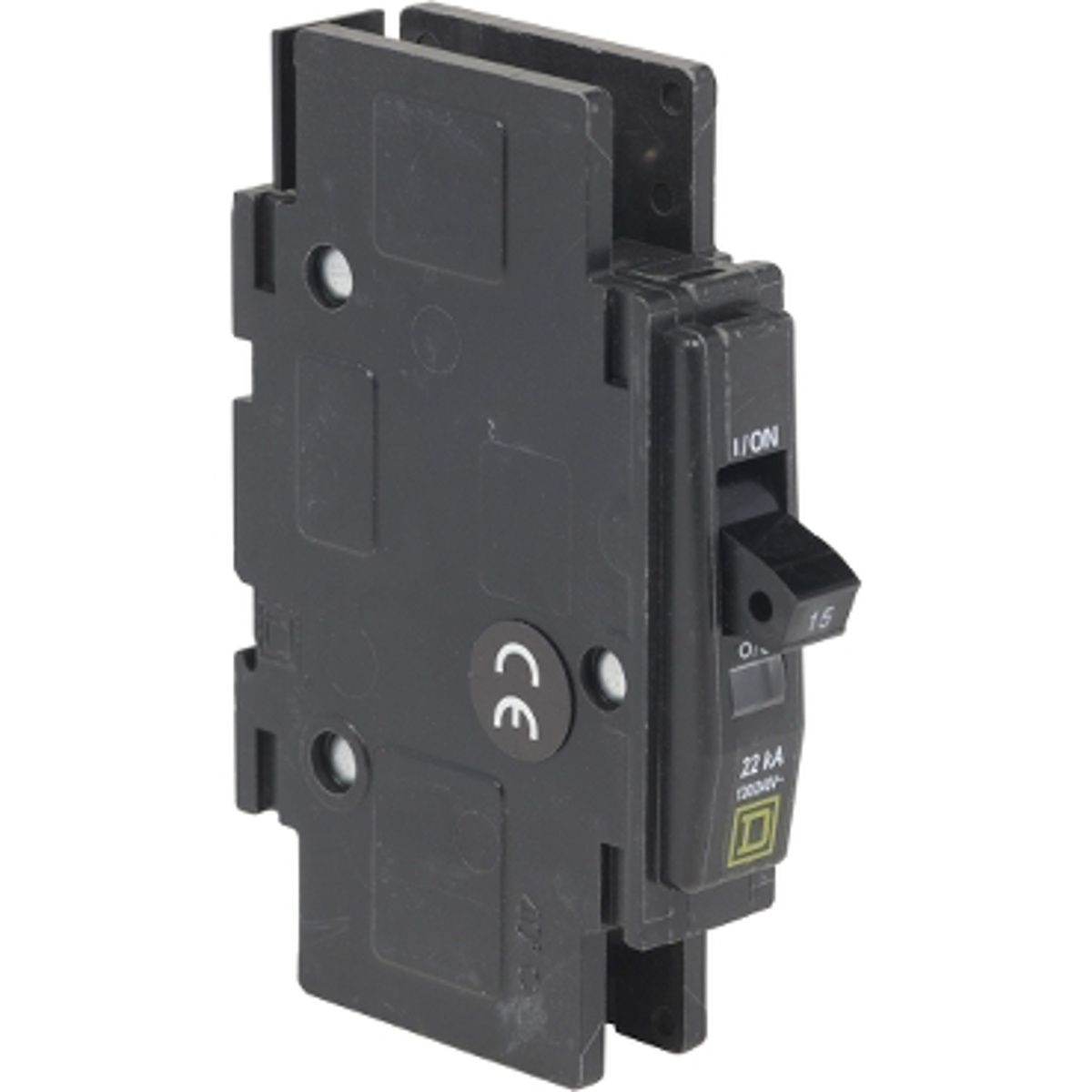

Square D QOU™ Unit Mount Miniature Circuit Breakers 15 A 120/240 VAC 22 kAIC 1 Pole
Mfg #:
QOU115VH
BOR #:
2306596
Related Items
Select Options
| Brand | Square D |
| Circuit Breaker Type | Miniature Breaker (Standard) |
| Trip Type | Thermal Magnetic |
| Number of Poles | 1 Pole |
| Interrupting Rating | 22 kAIC |
| Amperage | 15 A |
| Voltage | 120/240 VAC |
| Series | QOU™ QOU-VH |
| Mounting Type | Unit |
| Product Certifications | IEC ,, CSA ,, UL Listed |
| QOU Unit Mount Circuit Breakers, Certificate, UL - E84967-19950804-CertificateofCompliance+QOU+10-70A.rtf (pdf) | Compliance |
|
| Powerbus Busway Brochure - 5600BR1201 (pdf) | Brochure |
|
| Square D QOU Miniature Circuit Breakers and Switches Catalog - 0720CT9401R105 (pdf) | Catalog |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
| Digest: QOU/QYU Catalog Pages - QOU_SEC-07 (pdf) | Catalog |
|
| Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf) | Brochure |
|
