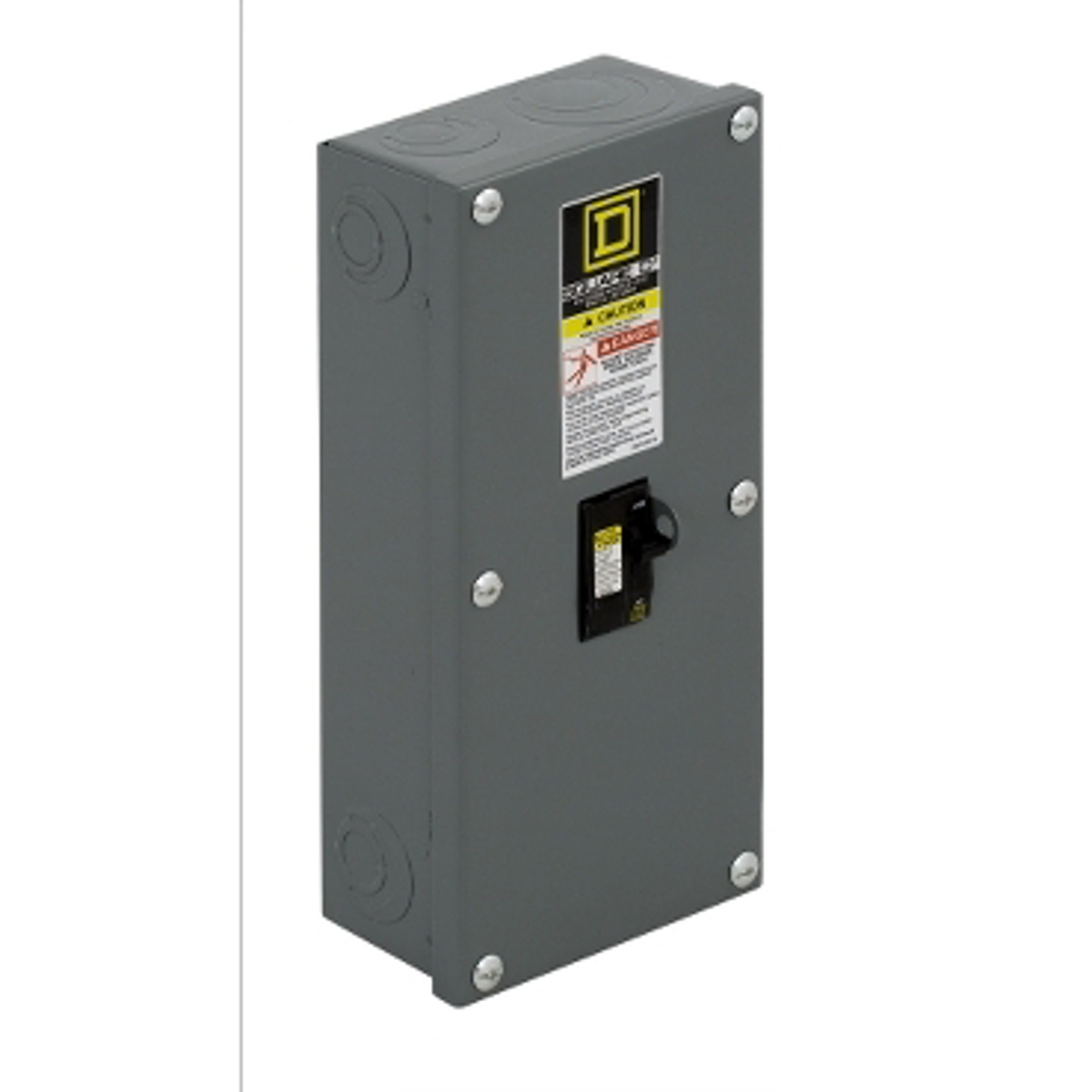

Square D Enclosed Molded Case Switches 100 A NEMA 1
Mfg #:
QO2000NS
BOR #:
618238
| Interrupting Rating | 10 kAIC |
| Number of Phases | 1 Phase |
| Number of Poles | 2 Pole |
| Compatible With | Square D QO |
| Depth | 7/2 in |

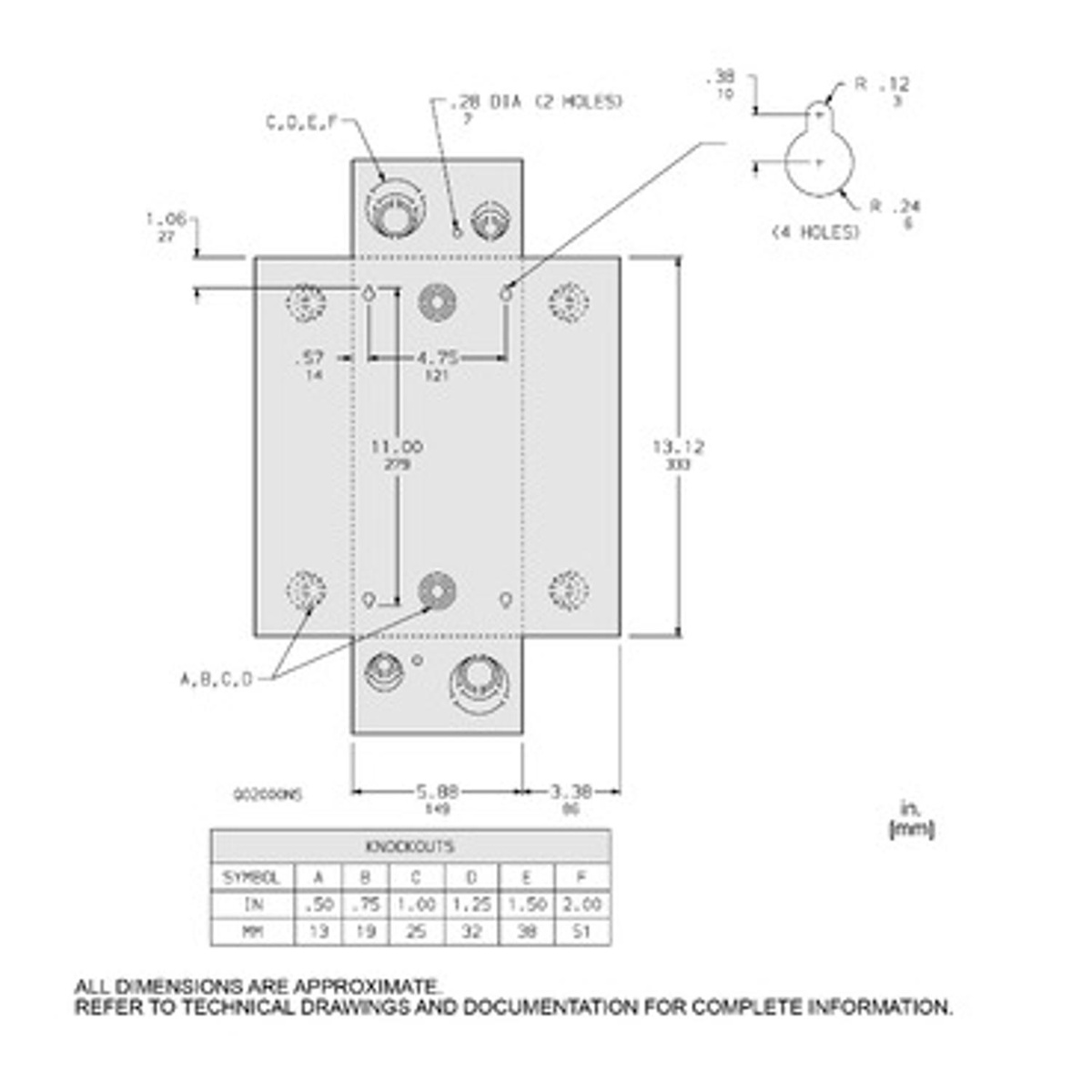

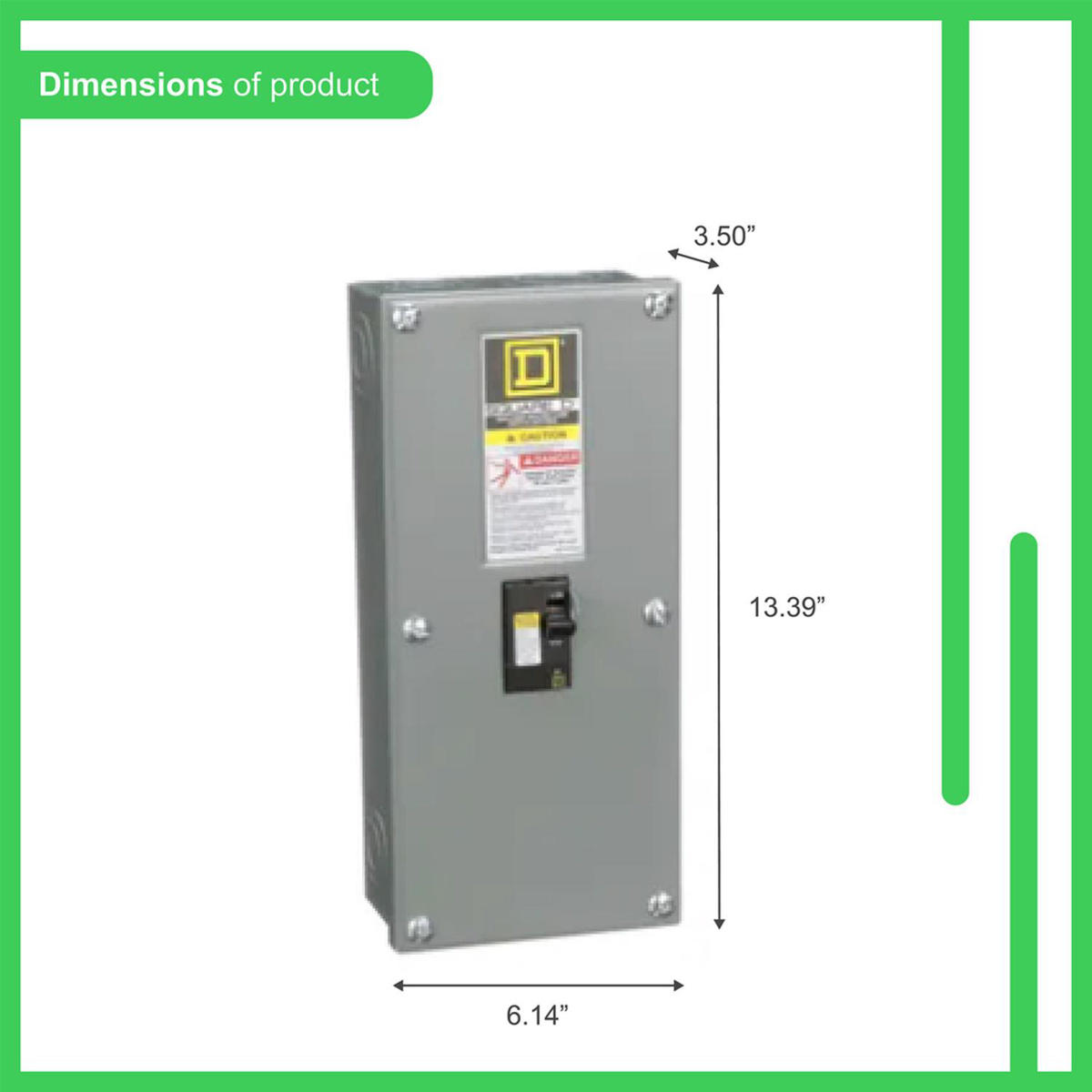

| Enclosure Size | 13.4 x 6.1 x 3.5 in |
| Height | 13-2/5 in |
| Width | 6.1 in |
| Voltage | 240 VAC |
| Brand | Square D |
| Series | QO |
| Mounting Type | plug-in |
| NEMA Rating | NEMA 1 |
| Amperage | 100 A |
| Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf) | Brochure |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
Differentiating Square D™ QO™ & Homeline™ Branch Circuit Breakers | Schneider Electric Support
In this video, we provide an in-depth comparison between Square D™ QO™ and Homeline™ Branch Circuit...
