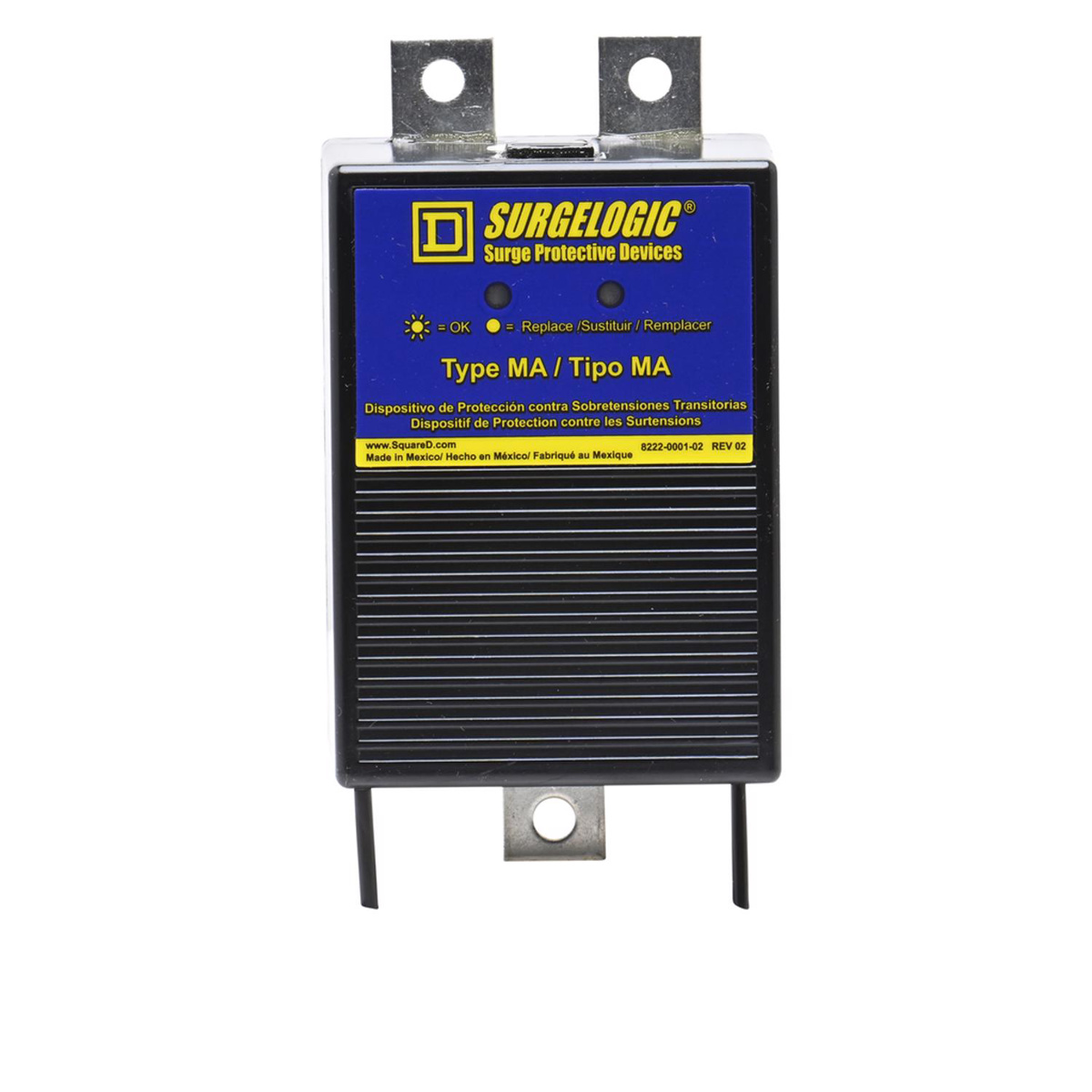

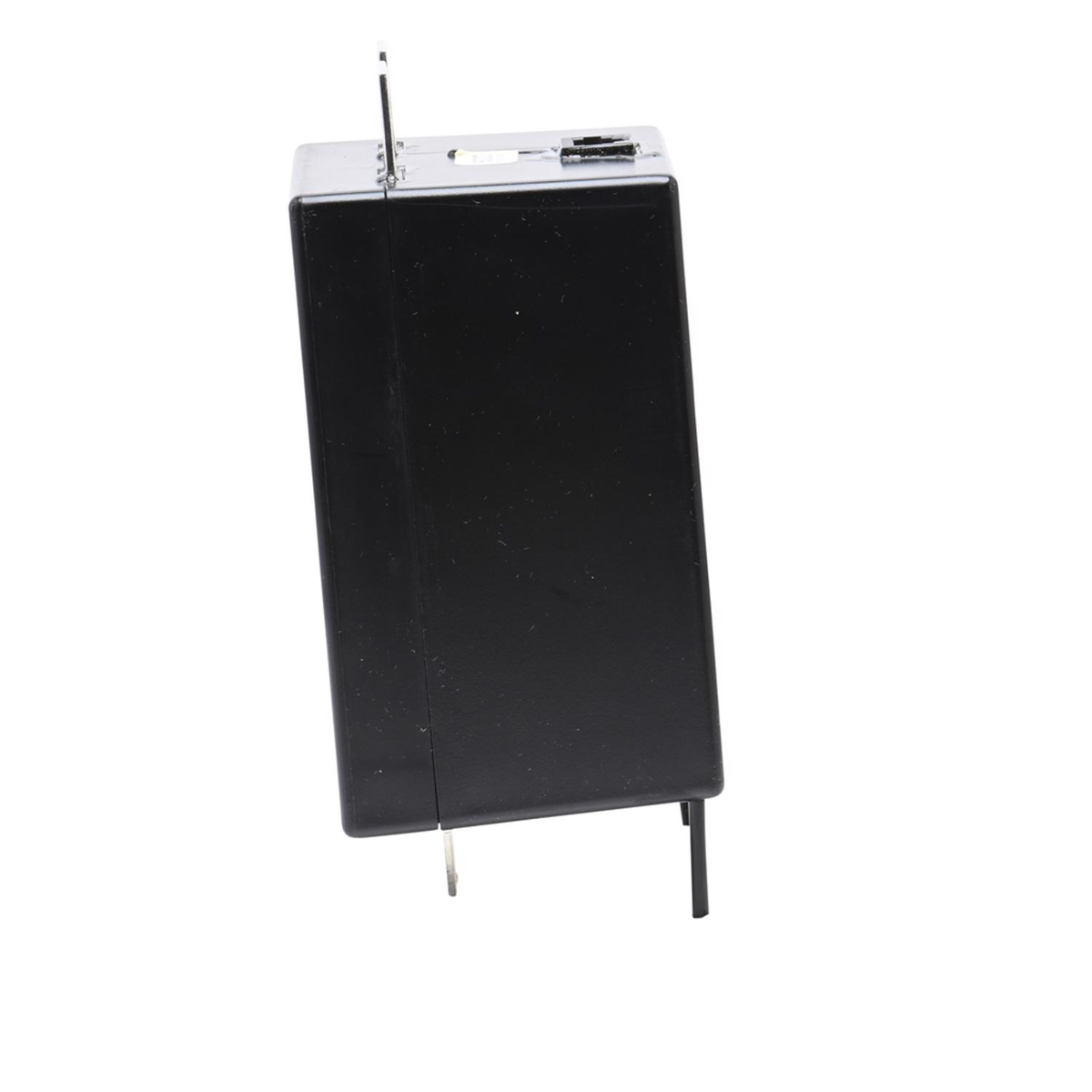

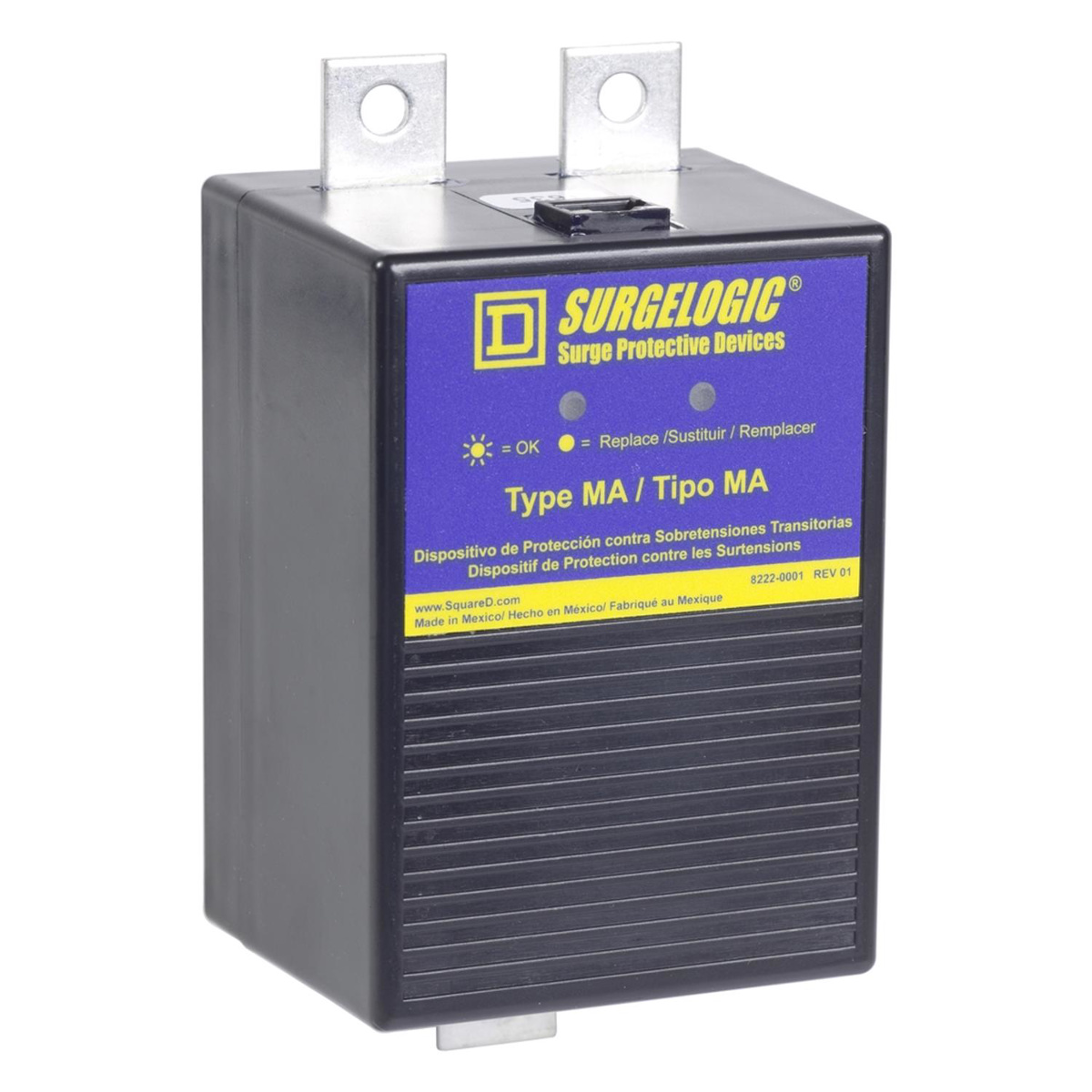

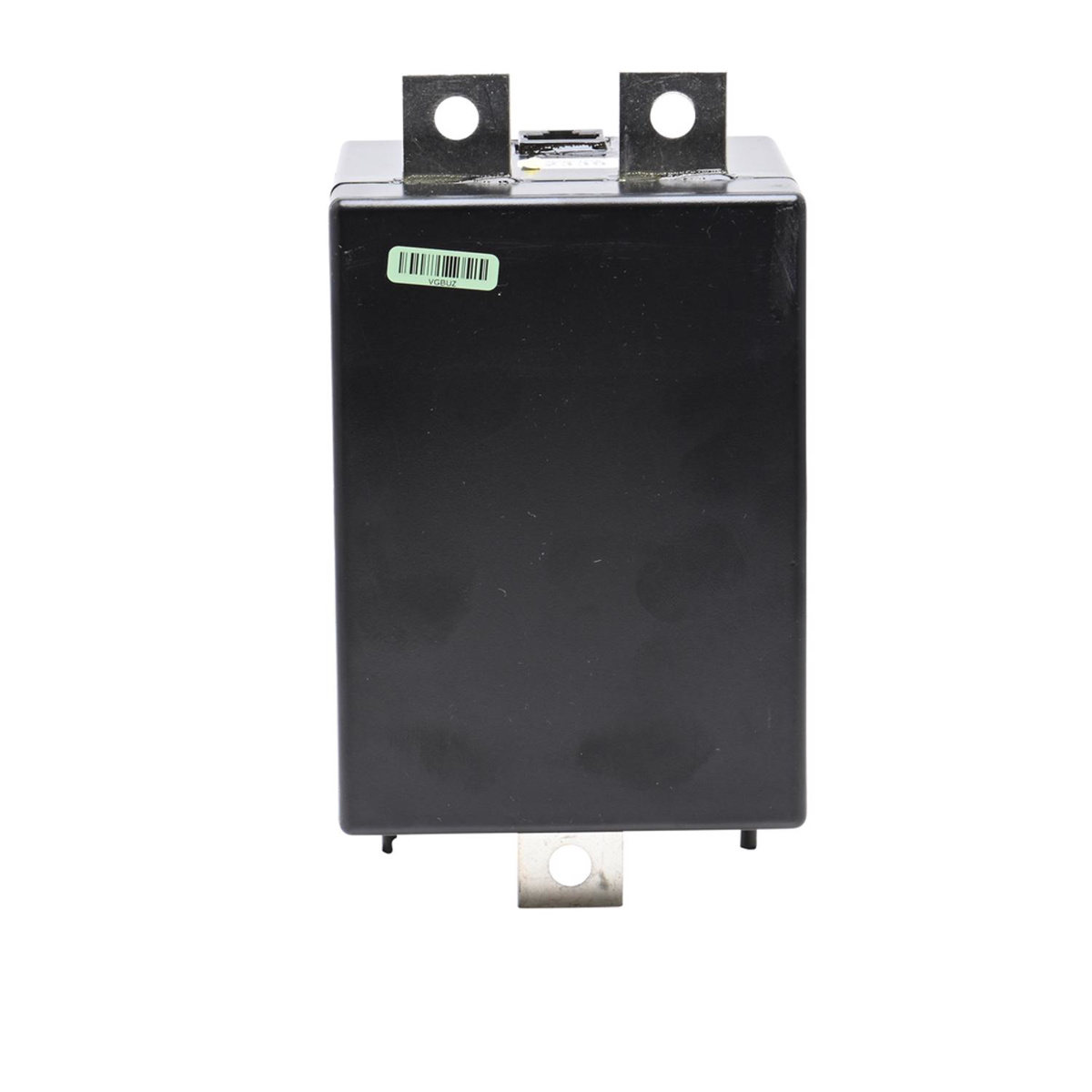

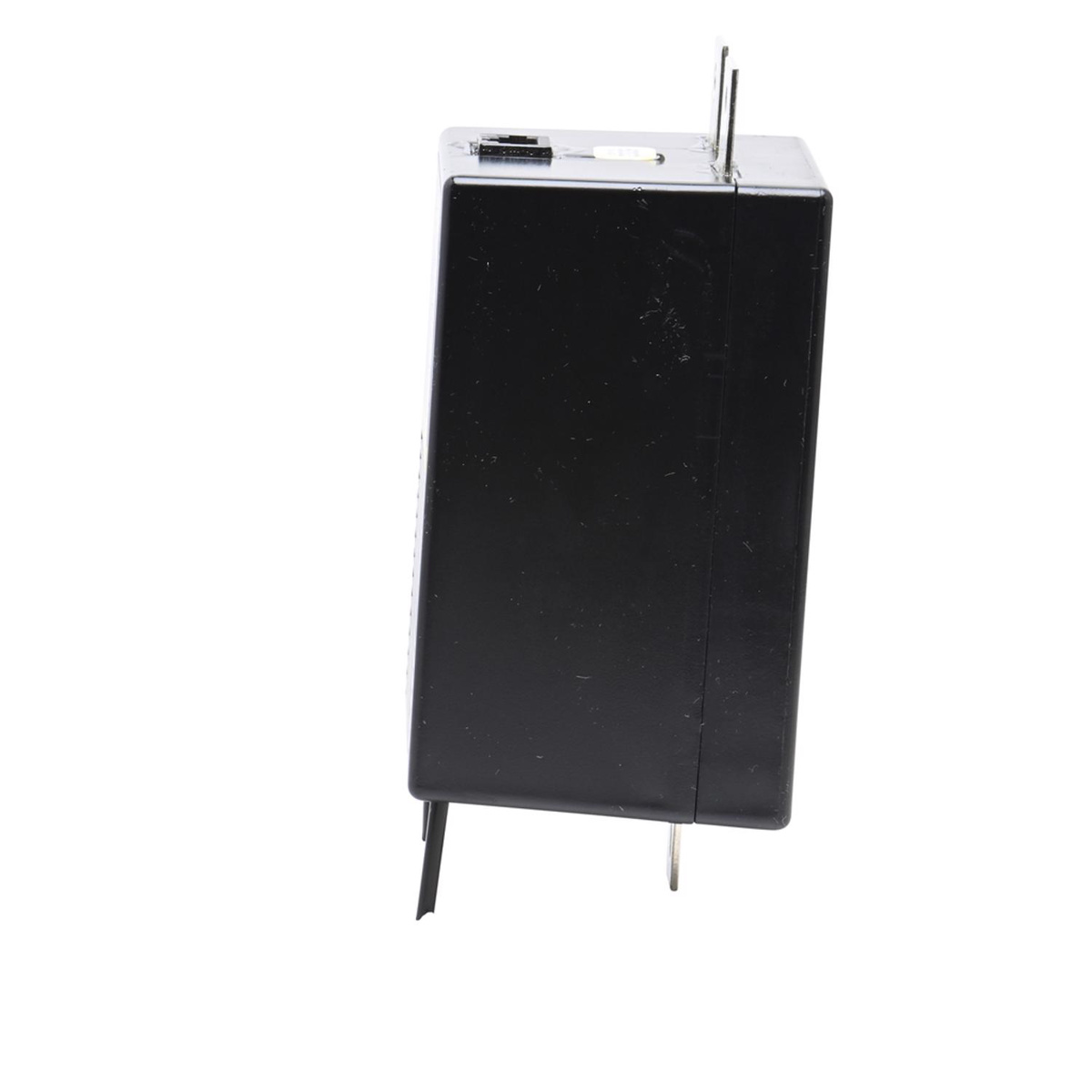

Square D Surgelogic® Surge Protection Devices Plastic 480Y/277 VAC NEMA 1
Mfg #:
MA4IMA121
BOR #:
3580187
Surgelogic® Surge Protection Modules
| Brand | Square D |
| MCOV | 320 V |
| Discharge Current | 20000 A |
| Depth | 2.69 in |
| Width | 3.26 in |
| Mounting Type | Panel |
| Height | 6-1/4 in |
| Material | Plastic |
| Voltage | 480Y/277 VAC |
| Connection Type | Terminals |
| Number of Phases | 3 phase |
| Includes | Status LED green normal operation, Alarm enable/disable switch |
| Short-Circuit Current | 200 kA |
| NEMA Rating | NEMA 1 |
| Square D Surgelogic EMA EBA Surge Protective Devices Catalog - 1310CT0202 (pdf) | Catalog |
|
| Type MA_IMA Modular Surge Protective Device (SPD) Replacement Modules Installation Instructions - 8222-0010 (pdf) | Installation and Instruction Manuals |
|
| Digest Catalog 06: Surge Protective Devices (MAR 2022) - 0100CT1901_SEC-06_March2022 (pdf) | Catalog |
|
