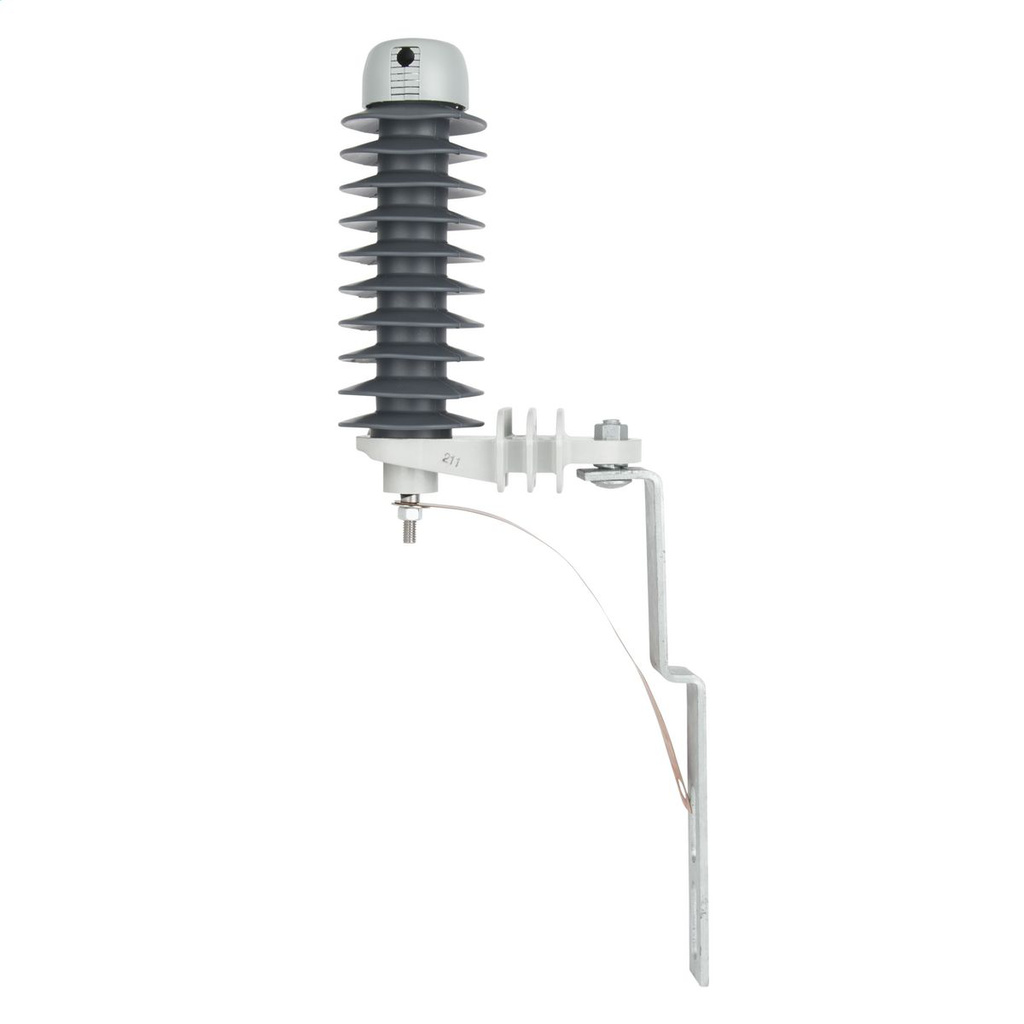

Hubbell Power PDV-100 Optima Arresters Polymer 9 kV
Mfg #:
2137087333
BOR #:
1591992
PDV-100 Optima arresters meet the Heavy Duty requirements of IEEE C62.11 and the Distribution High requirements of IEC 60099-4.
- This arrester class is suitable for withstanding a 100 kA high current impulse.
- MCOV: 2.55 - 34 kV rms
- Duty Cycle Rating: 3 - 42 kV rms
- Housing Material: ESPTM Polymer - proprietary ESP™ weathershed material, made of a blend of silicone and EPDM, resists tracking and provides exceptional leakage distance. It has proven its mettle in some of the toughest weather conditions for decades.
- Thermal Charge Rating, Qth: 1.1 C
- Repetitive Charge Transfer Rating, Qrs: 0.4 C
- Rated Short Circuit Current: 20 kA rms
| Brand | Hubbell Power |
| Mounting Hardware | Cap, Insulating Bracket, Isolator |
| Top Terminal Hardware | Hex Nut, Wire Clamp and Protective Cap |
| MCOV | 7.65 kV |
| Duty Cycle (kV) | 9 kV |
| Leakage Distance | 14.40 in |
| Lower Terminal Hardware | Isolator, Hex Nut, Flat Washer and Nylon Retainer Washer |
| Material | Polymer |
| Voltage | 9 kV |
| Installation Instructions for PDV/PVR Arresters - French | Installation and Instruction Manuals |
|
| Hubbell Power Specification Sheet | Specification Sheet |
|
| Installation Instructions for PDV/PVR Arresters - Spanish | Installation and Instruction Manuals |
|
| Installation Instructions for PDV/PVR Arresters - English | Installation and Instruction Manuals |
|
| Installation Instructions for PDV/PVR Arresters - Chinese | Installation and Instruction Manuals |
|
