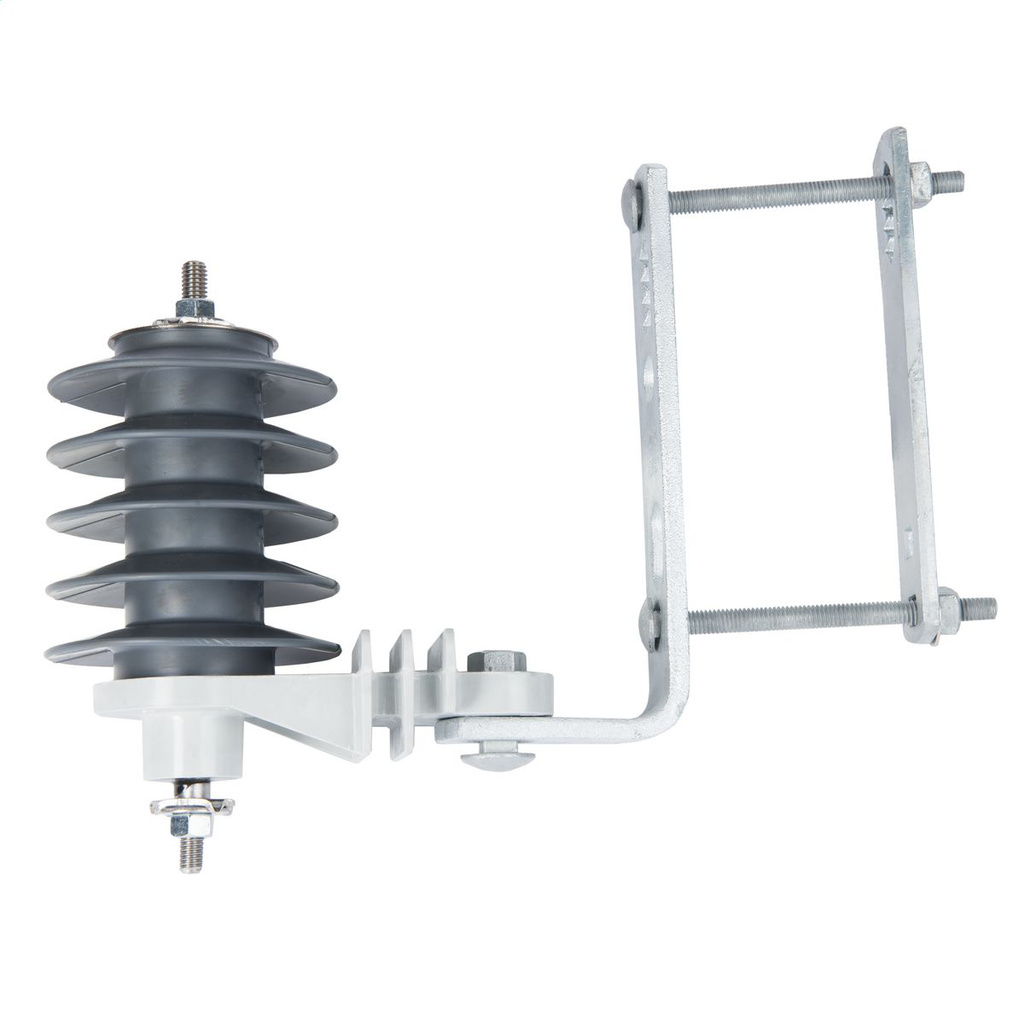

Hubbell Power PDV-100 Optima Arresters ESP™ Polymer
Mfg #:
2137157224
BOR #:
1591977
PDV-100 Optima arresters meet the Heavy Duty requirements of IEEE C62.11 and the Distribution High requirements of IEC 60099-4.
- This arrester class is suitable for withstanding a 100 kA high current impulse.
- MCOV: 2.55 - 34 kV rms
- Duty Cycle Rating: 3 - 42 kV rms
- Housing Material: ESPTM Polymer - proprietary ESP™ weathershed material, made of a blend of silicone and EPDM, resists tracking and provides exceptional leakage distance. It has proven its mettle in some of the toughest weather conditions for decades.
- Thermal Charge Rating, Qth: 1.1 C
- Repetitive Charge Transfer Rating, Qrs: 0.4 C
- Rated Short Circuit Current: 20 kA rms
| Brand | Hubbell Power |
| Mounting Hardware | NEMA 4x5 Crossarm Bracket |
| Top Terminal Hardware | Hex Nut and Wire Clamp |
| MCOV | 15.3 kV |
| Duty Cycle (kV) | 18 kV |
| Leakage Distance | 25.2 in |
| Amperage | 250 A |
| Lower Terminal Hardware | Hex Nut, Flat Washer & Wire Clamp |
| Weight | 4.6 lb |
| Height | 7.8 in |
| Material | ESP™ Polymer |
| Frequency Range | 48 - 62 Hz |
| Installation Instructions for PDV/PVR Arresters - French | Installation and Instruction Manuals |
|
| Installation Instructions for PDV/PVR Arresters - English | Installation and Instruction Manuals |
|
| Installation Instructions for PDV/PVR Arresters - Chinese | Installation and Instruction Manuals |
|
| Installation Instructions for PDV/PVR Arresters - Spanish | Installation and Instruction Manuals |
|
