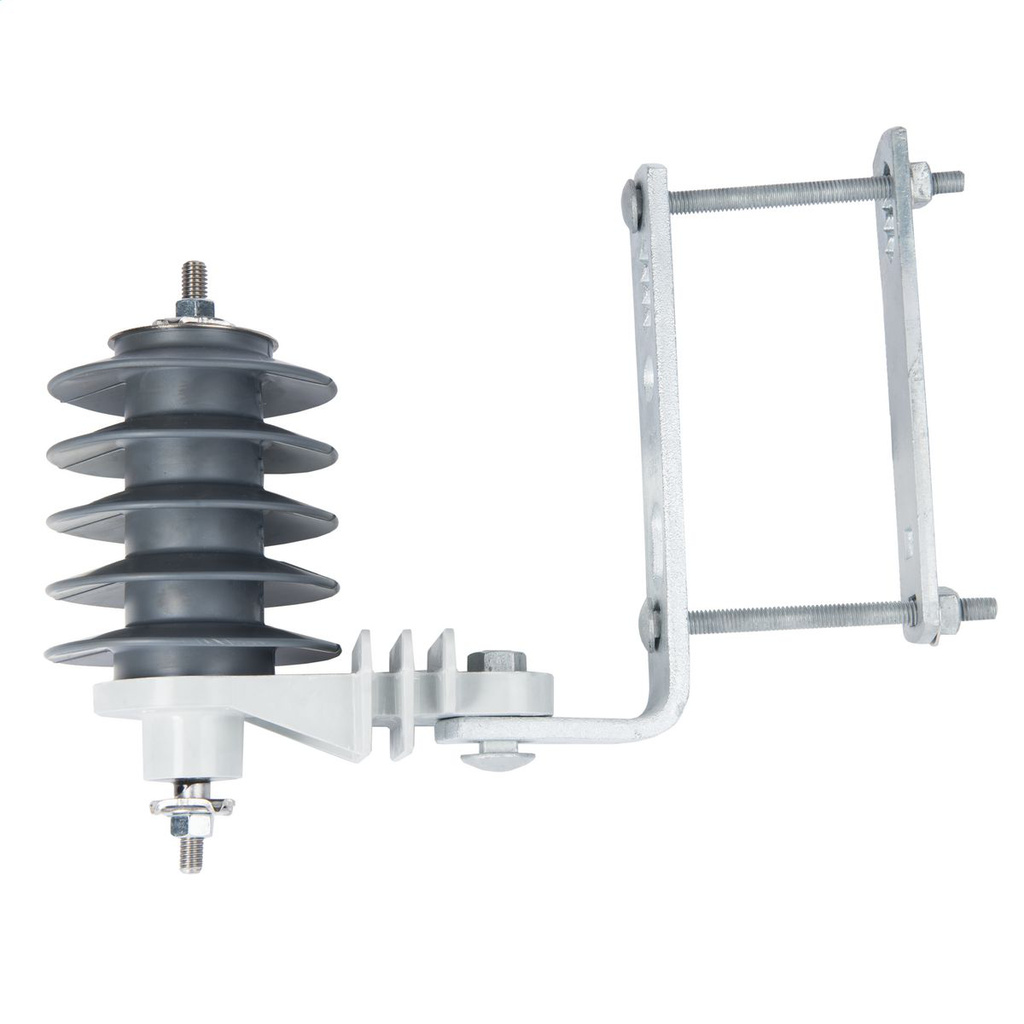

Hubbell Power PDV-100 Optima Arresters ESP™ Polymer 10 kV

Mfg #: 2137097224
BOR #: 1591995
Looking for prices?

PDV-100 Optima arresters meet the Heavy Duty requirements of IEEE C62.11 and the Distribution High requirements of IEC 60099-4.

  • This arrester class is suitable for withstanding a 100 kA high current impulse.
  • MCOV: 2.55 - 34 kV rms
  • Duty Cycle Rating: 3 - 42 kV rms
  • Housing Material: ESPTM Polymer - proprietary ESP™ weathershed material, made of a blend of silicone and EPDM, resists tracking and provides exceptional leakage distance. It has proven its mettle in some of the toughest weather conditions for decades.
  • Thermal Charge Rating, Qth: 1.1 C
  • Repetitive Charge Transfer Rating, Qrs: 0.4 C
  • Rated Short Circuit Current: 20 kA rms
See More
Product can be ordered only in multiples of
Brand Hubbell Power
Mounting Hardware NEMA 4x5 Crossarm Bracket
Top Terminal Hardware Hex Nut and Wire Clamp
MCOV 8.4 kV
Duty Cycle (kV) 10 kV
Leakage Distance 14.4 in
Amperage 250 A
Mounting Type Upright
Lower Terminal Hardware Hex Nut, Flat Washer & Wire Clamp
Weight 3.1 lb
Height 4.9 in
Material ESP™ Polymer
Voltage 10 kV
Frequency Range 48 - 62 Hz
Installation Instructions for PDV/PVR Arresters - French Installation and Instruction Manuals
Installation Instructions for PDV/PVR Arresters - Spanish Installation and Instruction Manuals
Installation Instructions for PDV/PVR Arresters - English Installation and Instruction Manuals
Installation Instructions for PDV/PVR Arresters - Chinese Installation and Instruction Manuals
