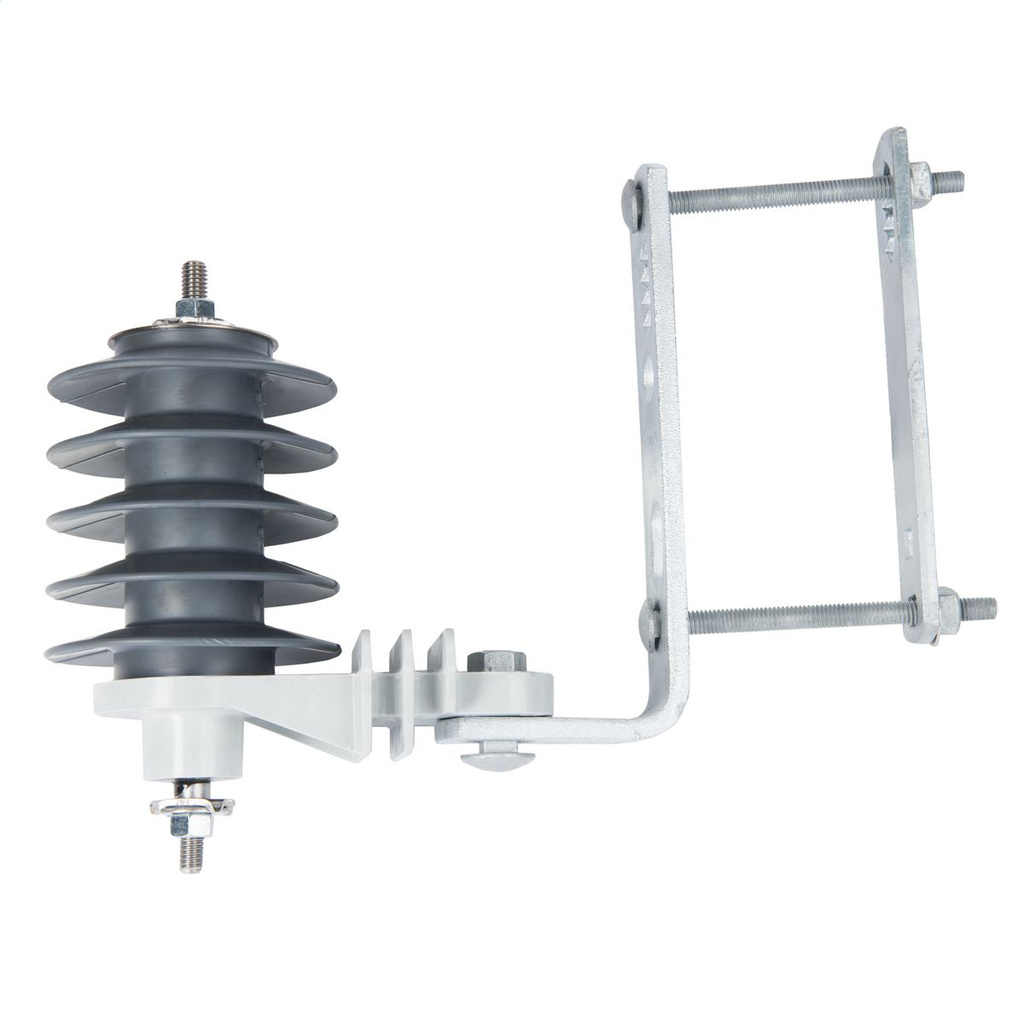

Hubbell Power PDV-100 Optima Arresters 15 kV
Mfg #:
2137137224
BOR #:
1719100
PDV-100 Optima arresters meet the Heavy Duty requirements of IEEE C62.11 and the Distribution High requirements of IEC 60099-4.
- This arrester class is suitable for withstanding a 100 kA high current impulse.
- MCOV: 2.55 - 34 kV rms
- Duty Cycle Rating: 3 - 42 kV rms
- Housing Material: ESPTM Polymer - proprietary ESP™ weathershed material, made of a blend of silicone and EPDM, resists tracking and provides exceptional leakage distance. It has proven its mettle in some of the toughest weather conditions for decades.
- Thermal Charge Rating, Qth: 1.1 C
- Repetitive Charge Transfer Rating, Qrs: 0.4 C
- Rated Short Circuit Current: 20 kA rms
| Brand | Hubbell Power |
| MCOV | 12.7 kV |
| Leakage Distance | 25.2 in |
| Height | 7.8 in |
| Voltage | 15 kV |
