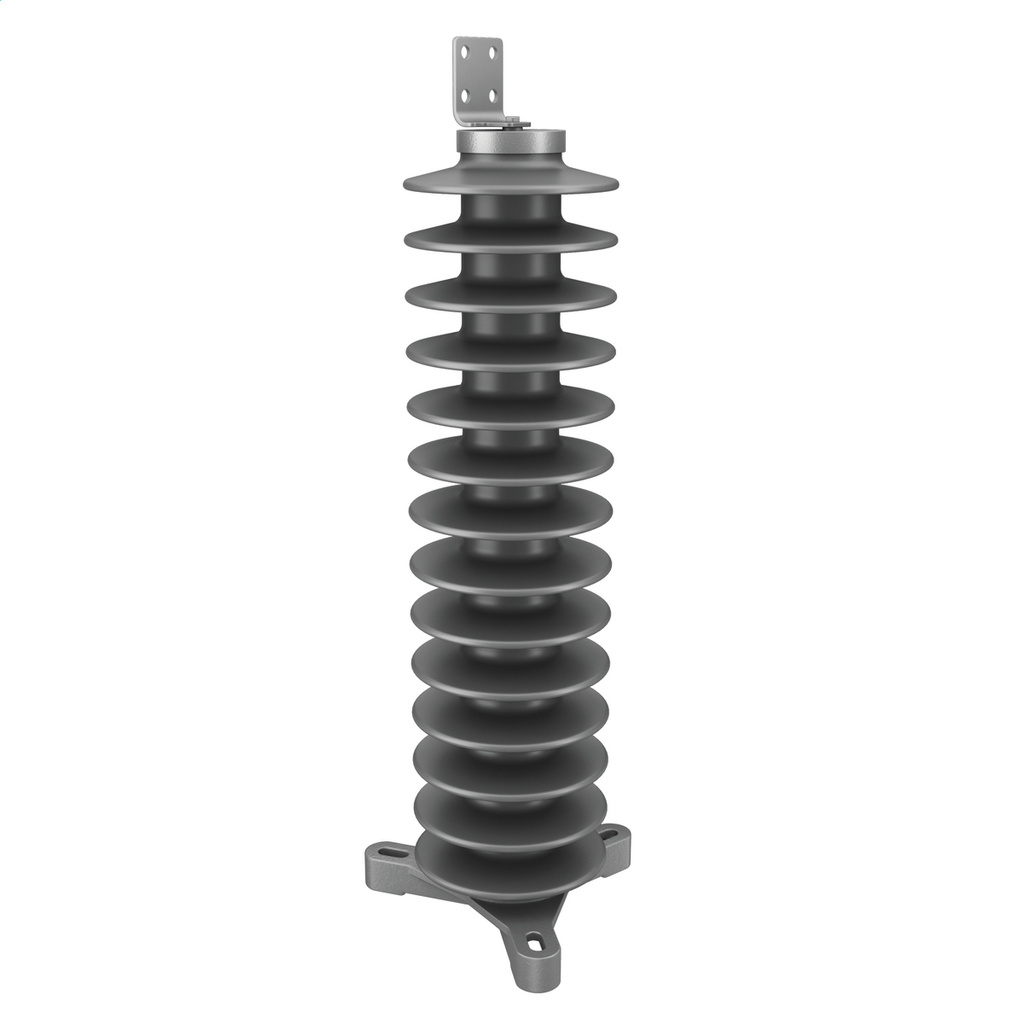

Hubbell Power EVP Arresters ESP™ Polymer 172 kV
Mfg #:
EVP0088003001
BOR #:
2791180
EVP, IEEE Station Class, IEC Class SM Polymer Housed Surge Arresters
- EVP line maintains proprietary ESPTM weathershed material and protective levels
- Robust sealing system to reduce moisture ingress to an unprecedented minimum
- EVP arresters also feature a redesigned housing profile for maximum material utilization
- Optimized wrap pattern and end hardware
- Even more effective sealing system
- Aluminum Top Cap
- Tri-pod base (standard 7.88 (200) to 10 (254) inches (mm) bolt circle slotted
| Brand | Hubbell Power |
| MCOV | 108 kV |
| Leakage Distance | 123 in |
| Top Type | Spade |
| Base Type | Tripod |
| Height | 46.3 in |
| Material | ESP™ Polymer |
| Voltage | 172 kV |
| Installation Instructions for Polymer Housed Arresters - EVP (17-5156) | Installation and Instruction Manuals |
|
| Hubbell Power Specification Sheet | Specification Sheet |
|
